Article

Microstructure and Mechanical Properties of a Novel Al-Mg-Sc-Ti Alloy Fabricated by Laser Powder Bed Fusion

National Engineering Research Center of Near-Net-Shape Forming for Metallic Materials, South China University of Technology, Guangzhou 510640, China
*
Author to whom correspondence should be addressed.
Materials 2024, 17(3), 686; https://doi.org/10.3390/ma17030686
Submission received: 12 January 2024 / Revised: 25 January 2024 / Accepted: 30 January 2024 / Published: 31 January 2024

Abstract

:
(TiH2 + ScH3)/Al-Mg composite powders with different Ti contents were produced by ball milling. These composite powders were fabricated to cube and cuboid shape samples via a laser powder bed fusion process with optimal processing parameters. The TiH2 and ScH3 particles underwent dehydrogenation during the laser powder bed fusion process, and these composite powders ultimately formed Al-Mg-Sc-Ti alloys. The relative density, printability, microstructure, hardness and tensile properties of these alloy samples were investigated. The results show that these Al-Mg-Sc-Ti alloys have lower hot-crack sensitivity, having fine equiaxed grains. An Al18Mg3(Ti,Sc)2 intermetallic phase and in situ L12-Al3(Sc,Ti) precipitations formed during the laser powder bed fusion process, which is beneficial for nucleation and dispersion strengthening. The ultimate tensile strength of the Al-Mg-0.7Sc-1.0Ti alloy was 313.6 MPa with an elongation of 6.6%. During the hot isostatic pressing treatment, most of the Mg element precipitated from the matrix and changed the Al3(Sc,Ti) into a Al18Mg3(Ti,Sc)2 precipitate completely. The Al-Mg-Sc-Ti alloys were nearly fully dense after the hot isostatic pressing treatment and exhibited better mechanical properties. The ultimate tensile strength of the Al-Mg-0.7Sc-1.0Ti was 475 MPa with an elongation of 8.5%.

1. Introduction

Laser powder bed fusion (LPBF) is a dominant technology of additive manufacturing technology that can fabricate parts by spreading and melting powders layer by layer using a focused laser beam [1,2]. Parts with complex structures can be fabricated via LPBF technology without a mold, and the metal powders used by this technology can be reused [3,4]. Unlike other traditional processing methods, the parts fabricated by the LPBF process exhibit a unique microstructure owing to the rapid melting and cooling rates (103~106 K/s) [5,6]. Al-Mg alloys, such as the 5000 series, have the advantages of low density, corrosion resistance and high specific strength [7]. LPBFed Al-Mg alloys have been used in the airplane industry and have a wide range of application prospects in the aerospace field [8]. However, most Al alloys, including 5000 series Al alloys, exhibit low printing performance [1]. These Al alloys have high thermal conductivity and a large freezing range, which makes it easy for them to generate and grow columnar grains during the printing process [9,10]. These columnar grains are normally coarse in shape, which will cause anisotropy of the microstructure and form hot cracks during the printing process [11]. Many studies have delivered solutions to the hot crack problem. Optimizing the process parameters can solve the crack problem for some kinds of Al alloys [12,13], and one of the most common methods is adding grain refiners to the matrix. These grain refiners have the ability of converting the coarse columnar grains to fine exquiaxed grains. These exquiaxed grains are more stable in solidification processing, so they have the benefit of inhibiting the formation of hot cracks. Some researchers use ceramic particles, such as TiB2 [14,15] and TiC [16,17], as nucleating agents for aluminum. These TiB2/TiC-modified Al alloys exhibit better printability, according to their conclusions. In addition, adding materials that can form intermetallic compounds with Al to the matrix is also an effective method [10,18].
Parts of the grain refiners can react with the matrix in situ to form L12-Al3X(X for Sc, Zr, Ti) precipitations [19,20,21]. These Al3X precipitations are super-effective nucleating agents for grain refinement during the printing process due to a low lattice misfit with aluminum. Moreover, researchers found that Al alloys co-modified by these X elements exhibit better mechanical properties. Schmidtkes [22] developed a new Sc-/Zr-modified Al alloy for additive manufacturing technology, and the development, production and testing of parts built up by a laser powder bed process has been exhibited in their work. In other studies [23,24], this kind of Al-Mg-Sc-Zr alloy was used in the LPBF process and achieved excellent mechanical properties thanks to the in situ L12-Al3(Sc,Zr).
This study aimed to design a new aluminum alloy using the element Ti instead of Zr. The mechanism of replacing Zr with Ti in an Al-Mg-Sc alloy is explained as follows: The element Ti can make the aluminum matrix form a large constitutional supercooling at the solidification front and is beneficial for refining grains and improving mechanical properties [25]. The lattice misfit of L12-Al3Ti relative to aluminum is negative, but the lattice misfits of L12-Al3Sc and L12-Al3Zr relative to aluminum are positive [26]. So the lattice misfit of L12-(Sc,Ti) to aluminum may be lower than L12-(Sc,Zr). The lattice misfit between Al3(Sc0.75,Ti0.25) and aluminum is lower than that between Al3(Sc0.75,Zr0.25) and aluminum, according to the calculation [27]. The room temperature mechanical properties of the Al-Mg-Sc alloy may be improved by adding the element Ti. Developing a new Al-Mg alloy is beneficial for further expanding the application fields of LPBFed Al-Mg alloys.
In this work, TiH2 and ScH3 particles instead of pure metal powders were chosen to co-modify Al-Mg alloy powders due to their anti-oxidation ability and low costs. This method has higher flexibility compared to using the pre-alloy and can more freely regulate the element ratio in the alloys. During the LPBF process, TiH2 and ScH3 particles are dehydrogenated and react with the matrix in situ to form Al3(Sc,Ti). Parts of the hydrogen are stored by the samples and become gas pores. The hot isostatic pressing (HIP) treatment is conducted to act as a post-process and make these samples fully dense.

2. Materials and Methods

2.1. Composite Powder Preparation and LPBF Processing

Al-Mg raw powders were produced by centrifugal atomization after melting in a vacuum induction furnace, and they were basically spherical (Figure 1a). The median particle size of the powders was 38.70 μm (Figure 1b). The elemental composition of the raw Al-Mg powders, excluding Al, was 5% Mg and 0.5% Mn. TiH2 (Figure 1c) and ScH3 (Figure 1d) particles were prepared using a high-energy ball milling method, and the size distribution of these irregular particles was about 1~10 μm. The corresponding compositions of powders used in this work are shown in Table 1. All the composite powders were prepared via low-energy ball milling under an Argon atmosphere. The ball milling parameters were as follows: the ball-to-material ratio was 5:1, the ball mill speed was 140 rpm and the mixing time was 4 h. Figure 1e,f presents the SEM photographs of the BST2 composite powders. It can be seen that the spherical Al-Mg powders barely changed in shape as a result of the milling process. In addition, composite powders were dried at 100 °C for 8 h in a vacuum dryer before the LPBF process.
The composite powders were loaded in an EOS M280 AM system (EOS GmbH, Krailling, Germany). The preheated temperature of this system was set to 200 °C, and the maximum building zone of this system is 250 × 250 mm2 (Figure 2a). The cavity was filled with argon gas during the whole printing process. The laser applied rotated by 67° between adjacent layers following a striped pattern (Figure 2b). The optimized LPBF processing parameters are listed in Table 2. Two kinds of samples were fabricated. The size of cube samples was 10 mm × 10 mm × 10 mm, and the size of strip samples was 65 mm × 10 mm × 2.1 mm. The building direction was perpendicular to the XOZ plane.

2.2. Microstructural and Mechanical Characterization

The Keller reagent (95 mL H2O + 2.5 mL HNO3 + 1.5 mL HCl + 1 mL HF) was used to corrode the cube samples to obtain grain boundary morphology, and a kind of NaOH reagent (0.5 mol/L) was used for the second-phase distribution observation. Pores and cracks on the surface were observed using an optical metallographic microscope (OM). A scanning electron microscope (SEM, Nova Nano430, TMO, Waltham, MA, USA) equipped with energy dispersive X-ray spectroscopy (EDS) was used to detect the morphology of the raw and composite powders, the microstructures of the LPBFed samples and the fracture morphology of the samples after tensile experiments. The voltage of the SEM was set to 15 KV. X-ray diffraction (XRD, D8ADVANCE, Bruker, Germany) using Cu Kα radiation was conducted to scan the XOY surface of the cube samples for phase identification. XRD was performed at a scanning rate of 6°/min with a step size of 0.013°. Electron backscatter diffraction (EBSD, NOVA Nano SEM 430, TMO, MA, USA) was conducted for grain texture and grain size and characterization. The scanning rate of the EBSD was 0.008 μm. A transmission electron microscope (TEM, JEM 2100F, JEOL, Akishima, Japan) was applied for phase identification and microstructural observation. These TEM samples were all prepared using ion thinning. Additionally, a UV–Visible–NIR Lambda 950 PerkinElmer spectrometer based on a diffusion reflectance spectroscopy (DRS) method was employed for measuring the laser reflectivity of raw and composite powders.
The relative density was measured via an Archimedes drainage method. For each alloy, two cube samples and one strip sample were tested to ensure precision. The hardness of these samples was measured on the XOY surface using DHV-1000Zmachine The pressure applied was 0.98 N for 10 s, and 5 points were tested for each sample. Tensile experiments were carried out by an AG-IC 50 KN machine with a strain rate of 0.6 mm/min. Before the tensile tests, the strip samples were machined to bone shapes (Figure 2c), and three samples were tested for each composition.

2.3. Hot Isostatic Pressing

Hot isostatic pressing (HIP) was conducted post-process to make the as-fabricated cube and strip samples fully dense. The HIP treatment was conducted on a QUINTUS QIH 15L facility. The whole process was under an Ar atmosphere, and the processing parameters were as follows: the cavity was heated to 450 °C, the pressure applied was 120 MPa and the duration of the process was 2 h.

3. Results and Discussion

3.1. Cracks and Relative Density

Figure 3a shows the laser reflectivity of the raw and composite powders. The raw Al-Mg powders have a laser reflectivity of 52% when the laser wavelength is 1060 nm, which means that only 48% of the input energy was absorbed by the B powders during the printing process. The laser reflectivity of the composite powders decreases with an increase in the particle addition. The BST4 samples have a minimal laser reflectivity of 33.7%. Figure 3b exhibits the schematic diagram of the laser acting on these composite powders.
The micrograph in Figure 4 shows OM images of the as-fabricated samples on the XOZ plane. Cracks exist only in the B and BS samples. The cracks in the B sample are continuous, and cracks induce the formation of keyholes in the BS sample. The pores defect, common in LPBFed alloys [28,29,30], occurs in all these samples. Most of the spherical pores are caused by particle dehydrogenation, while others are related to melting conditions with the metastable state of powders during the printing process. Relative density is a criterion for judging the as-fabricated samples [31]. The relative density of the as-fabricated samples shows that the B samples are nearly fully dense. Obviously, the relative density of these as-fabricated samples decreases with an increase in particle addition. The relative densities of the BST group (including BST1, BST2, BST3 and BST4) samples are lower than 95%, and the BST4 sample has the lowest relative density of 88%. The size and number of these spherical pores increase with the increase in particle addition. The direct effect of pores is a reduction in relative density, which is consistent with the relative density of these samples.

3.2. Microstructure and Phase Analysis

Figure 5 depicts the grain microstructures of these as-fabricated samples on the XOZ plane. As shown in Figure 5a, these molten pools exhibit corrugation, and cracks on the XOZ surface are generated nearly perpendicular to the molten pool. Both coarse columnar grains and fine equiaxed grains exist in the BS samples, and the distribution of these cells is affected by the melt pool boundary (white lines in Figure 5b). Additionally, the growth direction of the columnar grains inside the molten pool is approximately parallel to the building direction. Conversely, the BST group samples have a fine-grain structure without columnar grains. In addition, the pores affected the size of the grains. The results demonstrate that the addition of TiH2 and ScH3 can convert columnar grains to equiaxed grains in the printing process. Furthermore, the distribution of grains is more uniform and the grain size becomes smaller with the increase in Ti content.
Figure 6 shows IPF maps, pole figures and grain size distribution images of the as-fabricated B, BST1, BST2 and BST4 samples across the building direction. Compared with the B sample, the average grain size of these BST group samples is much lower. The BST samples also exhibit lower peak values in the pole figures. The B sample exhibits a certain level of texture, with the maximum texture index as high as 4.05 due to the epitaxial growth of columnar grains, and it can be asserted that the fiber texture is significantly weakened by adding Sc and Ti to the matrix. Additionally, the average grain size of the BST2 sample is about 39.6% lower than that of the BST1 sample. The average grain sizes of the BST2 and BST4 samples are similar, and the difference between them can be explained by selection error. The size of grains is also affected by holes and melt pools.
Figure 7a shows the XRD patterns of the as-fabricated B and BS samples. The diffraction of Al peaks is clearly visible in these as-fabricated samples. However, the intensity of Al peaks for these samples differs from the standard α-Al phase, which may be caused by the epitaxial growth of columnar grains in these samples. Additionally, the diffraction of the Al3Sc peak exists in the BS sample. The XRD patterns of the as-fabricated BST group samples are illustrated in Figure 7b. It can be seen that the diffraction of Al peaks of these samples is consistent with the standard α-Al phase due to the elimination of columnar grains. In addition, peaks of Al3(Sc,Ti) and Al18Ti2Mg3 are visible, and the BST4 samples exhibit the highest peak intensity of these phases. The Al18Ti2Mg3 is a common phase in the Al-Mg-Ti alloys, which has been exhibited in other studies [32,33]. Phases containing Mn cannot be found in all samples due to their contents.
A combination of other assays is needed to confirm the results of the phase identification via XRD. Figure 8a shows the shape of precipitates in the as-fabricated samples. The precipitates in the BS sample are assumed to be Al3Sc, according to the XRD results, and the precipitates in the BST group samples should be Al3(Sc,Ti). Most of these precipitates are irregularly shaped, and only a small number of these precipitates are nearly square. The bright image and corresponding EDS mappings of the BST2 sample are shown in Figure 8b. The results show that only a small amount of Mg and Mn have precipitated from the Al matrix. Mg is basically evenly distributed, and Mn is enriched around the grain boundaries. Obviously, Sc and Ti accumulate in the same precipitates, and these particles are mainly distributed within the grain boundaries.
The TEM results of the as-fabricated BST2 sample are given in Figure 9. Figure 9a,d show precipitates with two different morphologies. Selected-area electron diffraction pattern (SAED) and high-resolution (HR) TEM images were conducted for both precipitates. The diffraction pattern (Figure 9b) of the precipitate in Figure 9a was recorded along the [100] zone axis and shows the 002 and 0 2 ¯ 0 type superlattice reflections from the L12 phase. Herein, the precipitate in Figure 8a can be identified as L12-Al3Sc or L12-Al3Ti. Combined with the previous EDS results (Figure 8b), the precipitate should be identified as L12-Al3(Sc,Ti), which is still coherent with the matrix, and the HRTEM results shown in Figure 9c verify that an orientation relationship exists between this precipitate and the matrix. Figure 9e shows the SAED result of a precipitate in Figure 9d. The diffraction pattern was recorded along the [2 1 ¯ 1 ¯ ] zone axis and shows the 02 2 ¯ and 111 type lattice reflections, which is identified as the Al18Ti2Mg3 phase, but the EDS spectrum of this precipitate exhibits a certain amount of the Sc element. Thus, this precipitate should be identified as Al18Mg3(Sc,Ti)2. The HRTEM result and corresponding FFT result are given in Figure 9f.

3.3. Mechanical Properties

The data in Figure 10a show the microhardness on the XOZ plane of these as-fabricated samples. The average microhardness of the as-fabricated B sample was 75.43 HV and that of the as-fabricated BST4 sample reached 99.25 HV. It is obvious that the addition of these particles could improve the Vickers hardness of samples. The data in Figure 10b show the results of tensile tests. It should be mentioned that the B sample could not finish the tensile tests due to its crack defect. The BS sample broke prematurely, which was also related to the crack defect. Moreover, it is obvious that the tensile properties of the as-fabricated Al-Mg samples were improved by the addition of ScH3 and TiH2. The tensile strength and elongation of the BST1 sample were 275 ± 8 MPa and 7.2 ± 0.3%, respectively, while the tensile strength and elongation of the BST4 sample were 315 ± 10 MPa and 5.2 ± 0.2%, respectively. Among all the alloys, the BST4 samples had the highest UTS of 315 MPa and the BST1 samples had the highest El of 7.2%. For the BST group samples, plasticity decreased with an increase in the TiH2 addition, and the mechanical properties of the BST3 and BST4 samples were very similar. Additionally, an unstable plastic flow existed in all the stress–strain curves of the BST group samples (box area in Figure 10b), which is attributed to the Portevin–Le Chatelier (PLC) effect. This phenomenon is typical for Al-Mg alloys, as pointed out by Mogucheva [34] and Spierings [35]. This effect is caused by the interaction between these diffusing solute Ti/Sc atoms, Al3(Sc,Ti)/Al18Mg3(Ti,Sc)2 particles and mobile dislocations during tensile tests. The fracture morphologies of these samples are illustrated in Figure 11. Columnar arms and cracks existed in the B sample (Figure 11a), and a brittle fracture zone appeared. The fractures of the BS sample and the B sample exhibit similar characteristics. As shown in Figure 11c–f, the brittle fracture feature disappears on the fracture surface of the BST group samples. Conversely, fine uniform dimples and precipitated particles at the bottom of the dimples are present on the fracture surface of the BST group samples, indicating a typical ductile fracture mechanism. Another obvious characteristic is that massive spherical pores appear in all the samples except the B sample. These pores caused stress concentration during the tensile test, reducing the plasticity of these samples. The size and number of pores increase with the TiH2 content, which could explain the great change in plasticity of the BST group samples.
In summary, the addition of ScH3 and TiH2 particles to the matrix powders can effectively improve their laser absorption rate, thus reducing the energy required. Additionally, the hot cracks problem of Al-Mg alloys can be resolved via this method. During the LPBF process, Sc and Ti elements in the particles precipitate and react with the Al matrix in situ to generate Al3Sc, Al3Ti and Al18Ti2Mg3. Unlike the casting process [36], Al3Sc and Al3Ti, which formed during LPBF, have an L12-type structure. Due to the similar properties of Sc and Ti atoms, either can be replaced by the other, so that the final precipitate phases are Al3(Sc,Ti) and Al18Mg3(Sc,Ti)2. This atomic substitution phenomenon is also found in other Al-Mg-Sc-Zr alloys fabricated by LPBF [20,35], and the L12-type structure is still maintained by the Al3(Sc,Ti) precipitates. Precipitates with L12-type structures can provide a favorable condition for α-Al nucleation since they have a similar structure to aluminum [17]. Due to the characteristics of rapid melting and solidification during the LPBF process, there is a saturation value in the amount of Ti addition. According to the EBSD results, when the addition of TiH2 reaches 1.0%, the grain refinement effect has essentially reached the upper limit in this work. The BST2 sample had a similar hardness and UTS to the BST3 and BST4 samples. According to the Hall–Petch equation [37].
  Δ σ H P =   K   d 1 / 2 d 0 1 / 2
where Δ σH−P is the yield strength, K is a constant that represents the relative strengthening contribution from grain boundaries—which is set to 0.17 MPa·m1/2 for Al alloy [31]—and d and d0 are the average grain size of the BST2 sample and B sample, respectively. The calculated strength enhancement by the Hall–Petch equation is 154.66 MPa. Moreover, these in situ L12-Al3(Sc,Ti) precipitates can deliver dispersion strengthening. However, all the alloy samples exhibit poor plasticity due to the gas pores.

3.4. Effect of HIP Treatment

Figure 12 shows OM images on the XOY plane of the samples after the HIP treatment and the XRD pattern of these samples. After HIP, most of the gas pores are eliminated, and the relative density of all these samples is above 99%. The diffraction of the Al peaks barely changes, and the diffraction of the Al18Ti2Mg3 peaks shows a stronger intensity. But the peaks of the Al3X phases disappear. The EBSD results of the BST1, BST2 and BST3 samples are given in Figure 13. Compared with the as-fabricated samples, the grain distributions of these HIPed samples is relatively uniform, as the influence of the molten pools and pores was eliminated. The average grain size of the HIPed BST2 sample is 1.21 μm, which is about 71.6% higher than that of the as-fabricated sample. This means that the samples underwent grain growth during HIP treatment, and the content of the Ti element affected the grain growth process, as shown by the reduction in average grain size with the increase in Ti content.
Figure 14 shows the TEM results of the HIPed BST2 sample. Compared with the TEM results of the as-fabricated BST2 sample, it can be deduced that massive Mn and Mg elements precipitate from the matrix during the HIP treatment. Mn still enriches around the grain boundaries. Moreover, the phenomenon that Sc and Ti accumulate in the same zones still exists. Differing from the as-fabricated sample, Mg also accumulates in these zones. There are two distinct precipitates in the matrix, and their morphologies are shown in Figure 14b,c. These precipitates were identified by the HRTEM and the corresponding FFT. According to these results, it can be concluded that these two different precipitates are both Al18Mg3(Ti,Sc)2. Additionally, no orientation relationship exists between these Al18Mg3(Ti,Sc)2 precipitates and the matrix.
Figure 15a shows the SSC curves of these HIPed samples, and the fracture morphologies of these samples are shown in Figure 15b. After HIP treatment, the hardness, plasticity and strength of these alloys have all been improved, and the PLC effect still exists in all these HIPed samples. The mechanical properties and Ti content remained positively correlated. The HIPed BST2 sample has a UTS of 475 MPa, while the El is elevated to 8.5%. Although the plasticity of these materials improved, their fracture mechanisms were all biased toward brittle fractures, and there are river-like features in all these samples (Figure 15b).
Above all, HIP could make the material fully dense and deliver a heat treatment effect similar to solid solution [38]. These as-fabricated Al alloy samples undergo grain growth during the HIP treatment. The element Ti can limit the growth process of grains; samples with higher Ti addition show much lower average grain sizes. As a result of HIP, the average grain size increases and the grain distribution becomes more uniform. The tensile properties, hardness and plasticity of these samples all improved after HIP. The enhancement of these properties is related to phase transitions in these samples. According to the work on the Al-Mg-Ti system [33], the element Mg precipitates from the Al-Mg matrix with increasing temperature and Mg can react with Al and Al3Ti, and the reaction formula is as follows:
12Al + 3Mg + 2Al3Ti = Al18Ti2Mg3.
The Δ H of this reaction is −50 KJ/mol, and the reaction can occur spontaneously. This is consistent with the experimental phenomenon in this work. The element Mg precipitates from the matrix and changes the L12-Al3Ti into Al18Ti2Mg3 completely. Due to the similar properties of Sc and Ti, the Sc atoms replace a part of the Ti atoms in the Al18Ti2Mg3 precipitates, so the final precipitate phase is Al18Mg3(Sc,Ti)2. These Al18Mg3(Sc,Ti)2 precipitates show two different kinds of morphology with different crystal orientations. Additionally, Mn also precipitates in large quantities during the HIP treatment, and Mn does not interact with other elements to form a new phase, still accumulating at grain boundaries.
Compared with the as-fabricated BST2 alloy, the HIPed BST2 alloy has a stronger second-phase strengthening effect. The reinforcement effect can be estimated by the Owen formula [16]:
  Δ σ O r o w a n = 2 G m b d p 6 V P π 1 / 3 ,
where Gm is the shear modulus of the matrix, b is the Burgers vector, and dp and VP are the size of the particles and the volume fraction. The strengthening phase in the HIPed BST2 alloy is mostly Al18Mg3M2(M for Sc,Ti), and the strengthening phase in the as-fabricated BST2 alloy is mostly Al3M. The dp of Al18Mg3M2 is lower than that of Al3M, and the Vp of Al18Mg3M2 is higher than that of Al3M, according to the TEM results. So ΔσOrowan-Al3M should be lower than ΔσOrowan-Al18Mg3M2. The hardness of the HIPed BST3 sample is about 15 HV higher than the HIPed BST2 sample, and the average size of the HIPed BST3 sample is about 19% lower than that of the HIPed BST2 sample, but the UTSs of these samples are similar. The hardness and EBSD results come from the cube samples, and the strain–stress curves come from cuboid samples. The cube samples have higher symmetry and are subjected to more uniform force during the HIP treatment. There is a significant deviation between the HIPed cuboid samples. The plasticity of these HIPed samples also improves because of the elimination of pores and unification of organization.

4. Conclusions

The Al-Mg-Sc-Ti alloys were fabricated by LPBF in this work, and the role of Ti and Sc elements in the alloys was studied. This work can provide guidance for the design of aluminum alloys for additive manufacturing. Based on the experimental results, the following conclusions can be obtained:
  • Hot cracks in LPBFed Al-Mg alloys can be eliminated by an inoculation treatment with TiH2 and ScH3. The LPBFed Al-Mg-Sc-Ti alloys exhibit fine exquiaxed grains having a low average grain size. The relative density greatly reduces from 99.8% to 87.8% as the ratio of the Al-Mg raw powders to the composite powders slightly decreases from 100% to 97.7%, and the HIP treatment can heal the pores in the alloys and improve the relative density to nearly 100%.
  • During the LPBF process, Sc and Ti precipitate and react in situ with the matrix. Since Sc and Ti have similar chemical properties, each can replace the other in the in situ reaction, shown by Sc and Ti enriching in the same zones. The reaction produces L12-Al3M (M for Sc, Ti) and a small amount of Al18M2Mg3. The L12-Al3M serves as a high-quality nucleating agent, and excess Ti and Sc also play a role in limiting grain growth, so that extremely fine equiaxed grain regions form in the as-fabricated alloys.
  • The mechanical properties of the as-fabricated Al-Mg alloys are improved by the co-addition of the elements Ti and Sc. The UTSs of the as-fabricated Al-Mg-0.7Sc-0.7Ti alloy and Al-Mg-0.7Sc-1.0Ti were 275 MPa and 313 MPa, respectively, and the UTSs of the as-fabricated Al-Mg-0.7Sc-1.0Ti and Al-Mg-0.7Sc-1.6Ti were similar. Due to the dehydrogenation reaction, a sample with high Ti addition had low relative density and exhibited poor plasticity.
  • During the HIP treatment, a large amount of Mg precipitates from the matrix, which changes all the in situ Al3M into Al18M2Mg3. Alloys undergo grain growth during the HIP treatment, and the element Ti can limit the growth of grains. The hardness and tensile properties of these Al-Mg-Sc-Ti alloys improve significantly after the HIP treatment. The hardness of HIPed Al-Mg-0.7Sc-1.3Ti is 135 HV. The HIPed Al-Mg-0.7Sc-1.0Ti alloy exhibits an UTS of 475 MPa with an El of 8.5%.

Author Contributions

Data curation, Z.S.; Writing—original draft, Z.S.; Writing—review & editing, Z.S.; Supervision, Z.S.; Project administration, Y.L.; Funding acquisition, Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Research and Development Program Project in Key Areas of Guangdong Province, China (2019B090907001).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bayoumy, D.; Kan, W.; Wu, X.; Zhu, Y.; Huang, A. The Latest Development of Sc-Strengthened Aluminum Alloys by Laser Powder Bed Fusion. J. Mater. Sci. Technol. 2023, 149, 1–17. [Google Scholar] [CrossRef]
  2. Jiang, X.J.; Bao, S.J.; Zhang, L.W.; Zhang, X.Y.; Jiao, L.S.; Qi, H.B.; Wang, F. Effect of Zr on Microstructure and Properties of TC4 Alloy Fabricated by Laser Additive Manufacturing. J. Mater. Res. Technol. 2023, 24, 8782–8792. [Google Scholar] [CrossRef]
  3. Achieving Uniform Plasticity in a High Strength Al-Mn-Sc Based Alloy through Laser-Directed Energy Deposition—ScienceDirect. Available online: https://www.sciencedirect.com/science/article/pii/S2214860422006625?via%3Dihub (accessed on 7 September 2023).
  4. Akkoyun, F.; Cevik, Z.A.; Ozsoy, K.; Ercetin, A.; Arpaci, I. Image Processing Approach to Investigate the Correlation between Machining Parameters and Burr Formation in Micro-Milling Processes of Selective-Laser-Melted AISI 316L. Micromachines 2023, 14, 1376. [Google Scholar] [CrossRef] [PubMed]
  5. Prabu, G.; Jeyaprakash, N.; Yang, C.-H.; Alnaser, I.A. Investigation on Deformation of Nano-Twins of LPBF Produced Cu Alloy through Triboindenter. Tribol. Int. 2024, 191, 109117. [Google Scholar] [CrossRef]
  6. Shrivastava, A.; Anand Kumar, S.; Rao, S.; Nagesha, B.K. Exploring How LPBF Process Parameters Impact the Interface Characteristics of LPBF Inconel 718 Deposited on Inconel 718 Wrought Substrates. Opt. Laser Technol. 2024, 174, 110571. [Google Scholar] [CrossRef]
  7. Jiang, J.; Jiang, F.; Zhang, M.; Yi, K. Study on Impact Toughness and Fracture Behaviour of an Al–Mg-Sc Alloy. Vacuum 2023, 211, 111926. [Google Scholar] [CrossRef]
  8. Deillon, L.; Jensch, F.; Palm, F.; Bambach, M. A New High Strength Al–Mg–Sc Alloy for Laser Powder Bed Fusion with Calcium Addition to Effectively Prevent Magnesium Evaporation. J. Mater. Process. Technol. 2022, 300, 117416. [Google Scholar] [CrossRef]
  9. Olakanmi, E.O.; Cochrane, R.F.; Dalgarno, K.W. A Review on Selective Laser Sintering/Melting (SLS/SLM) of Aluminium Alloy Powders: Processing, Microstructure, and Properties. Prog. Mater. Sci. 2015, 74, 401–477. [Google Scholar] [CrossRef]
  10. Croteau, J.R.; Griffiths, S.; Rossell, M.D.; Leinenbach, C.; Kenel, C.; Jansen, V.; Seidman, D.N.; Dunand, D.C.; Vo, N.Q. Microstructure and Mechanical Properties of Al-Mg-Zr Alloys Processed by Selective Laser Melting. Acta Mater. 2018, 153, 35–44. [Google Scholar] [CrossRef]
  11. Hadadzadeh, A.; Amirkhiz, B.S.; Li, J.; Mohammadi, M. Columnar to Equiaxed Transition during Direct Metal Laser Sintering of AlSi10Mg Alloy: Effect of Building Direction. Addit. Manuf. 2018, 23, 121–131. [Google Scholar] [CrossRef]
  12. Zhang, H.; Gu, D.; Dai, D. Laser Printing Path and Its Influence on Molten Pool Configuration, Microstructure and Mechanical Properties of Laser Powder Bed Fusion Processed Rare Earth Element Modified Al-Mg Alloy. Virtual Phys. Prototyp. 2022, 17, 308–328. [Google Scholar] [CrossRef]
  13. Stopyra, W.; Gruber, K.; Smolina, I.; Kurzynowski, T.; Kuźnicka, B. Laser Powder Bed Fusion of AA7075 Alloy: Influence of Process Parameters on Porosity and Hot Cracking. Addit. Manuf. 2020, 35, 101270. [Google Scholar] [CrossRef]
  14. Wu, M.; Tao, J.; Wang, J.; Jiang, W.; Sun, Y.; Dong, D.; Zhao, Y.; Wang, M.; Liu, T.; Luo, L.; et al. Effects of TiB2 Additions on Microstructure and Mechnical Properties of Al–Mg–Sc Alloy Fabricated by Selective Laser Melting. J. Mater. Res. Technol. 2023, 23, 3537–3546. [Google Scholar] [CrossRef]
  15. Rees, D.T.; Leung, C.L.A.; Elambasseril, J.; Marussi, S.; Shah, S.; Marathe, S.; Brandt, M.; Easton, M.; Lee, P.D. In Situ X-Ray Imaging of Hot Cracking and Porosity during LPBF of Al-2139 with TiB2 Additions and Varied Process Parameters. Mater. Des. 2023, 231, 112031. [Google Scholar] [CrossRef]
  16. Cheng, W.; Liu, Y.; Xiao, X.; Huang, B.; Zhou, Z.; Liu, X. Microstructure and Mechanical Properties of a Novel (TiB2+TiC)/AlSi10Mg Composite Prepared by Selective Laser Melting. Mater. Sci. Eng. A-Struct. Mater. Prop. Microstruct. Process. 2022, 834, 142435. [Google Scholar] [CrossRef]
  17. Grain Refinement of Aluminium and Its Alloys by Heterogeneous Nucleation and Alloying: International Materials Reviews: Vol 47, No 1. Available online: https://www.tandfonline.com/doi/abs/10.1179/095066001225001049 (accessed on 4 September 2023).
  18. 3D Printing of Aluminium Alloys: Additive Manufacturing of Aluminium Alloys Using Selective Laser Melting—ScienceDirect. Available online: https://www.sciencedirect.com/science/article/pii/S007964251930060X (accessed on 14 March 2023).
  19. Monti, C.; Turani, M.; Papis, K.; Bambach, M. A New Al-Cu Alloy for LPBF Developed via Ultrasonic Atomization. Mater. Des. 2023, 229, 111907. [Google Scholar] [CrossRef]
  20. Cordova, L.; Bor, T.; de Smit, M.; Carmignato, S.; Campos, M.; Tinga, T. Effects of Powder Reuse on the Microstructure and Mechanical Behaviour of Al–Mg–Sc–Zr Alloy Processed by Laser Powder Bed Fusion (LPBF). Addit. Manuf. 2020, 36, 101625. [Google Scholar] [CrossRef]
  21. Localized and Stress Corrosion Cracking of Sensitized Al-Mg-Sc-Zr Alloy Manufactured by Laser Powder Bed Fusion—ScienceDirect. Available online: https://www.sciencedirect.com/science/article/pii/S0010938X23002081 (accessed on 25 January 2024).
  22. Schmidtke, K.; Palm, F.; Hawkins, A.; Emmelmann, C. Process and Mechanical Properties: Applicability of a Scandium Modified Al-Alloy for Laser Additive Manufacturing. Phys. Procedia 2011, 12, 369–374. [Google Scholar] [CrossRef]
  23. Guo, Y.; Liao, H.; Chang, C.; Yan, X.; Deng, Z.; Dong, D.; Chu, Q.; Deng, Y.; Liu, M. Effects of Solute Atoms Re-Dissolution on Precipitation Behavior and Mechanical Properties of Selective Laser Melted Al–Mg-Sc-Zr Alloys. Mater. Sci. Eng. A 2022, 854, 143870. [Google Scholar] [CrossRef]
  24. Microstructure and Mechanical Properties of As-Processed Scandium-Modified Aluminium Using Selective Laser Melting—ScienceDirect. Available online: https://www.sciencedirect.com/science/article/pii/S0007850616300579?via%3Dihub (accessed on 5 September 2023).
  25. Liu, X.; Liu, Y.; Zhou, Z.; Zhan, Q. Enhanced Strength and Ductility in Al-Zn-Mg-Cu Alloys Fabricated by Laser Powder Bed Fusion Using a Synergistic Grain-Refining Strategy. J. Mater. Sci. Technol. 2022, 124, 41–52. [Google Scholar] [CrossRef]
  26. Saha, S.; Todorova, T.Z.; Zwanziger, J.W. Temperature Dependent Lattice Misfit and Coherency of Al3X (X=Sc, Zr, Ti and Nb) Particles in an Al Matrix. Acta Mater. 2015, 89, 109–115. [Google Scholar] [CrossRef]
  27. Thermal Expansion of Al3Sc and Al3(Sc0.75X0.25)—ScienceDirect. Available online: https://www.sciencedirect.com/science/article/pii/S1359646202004281 (accessed on 28 December 2023).
  28. Galbusera, F.; Caprio, L.; Previtali, B.; Demir, A.G. The Influence of Novel Beam Shapes on Melt Pool Shape and Mechanical Properties of LPBF Produced Al-Alloy. J. Manuf. Process. 2023, 85, 1024–1036. [Google Scholar] [CrossRef]
  29. Im, T.; Kim, J.-Y.; Gurung, K.; Meyers, S.; Van Hooreweder, B.; Lee, J.-S.; Kim, J.-K.; Lee, C.S. Impact of Laser Scanning Strategies on Microstructure in Laser Powder Bed Fusion (LPBF) of Nanoparticle-Infused Pre-Alloyed Water-Atomized Iron Powder. Mater. Sci. Eng. A 2024, 891, 145989. [Google Scholar] [CrossRef]
  30. Micromechanical, Corrosion and Wet Sliding Wear Behaviours of Co-28Cr-6Mo Alloy: Wrought vs. LPBF—ScienceDirect. Available online: https://www.sciencedirect.com/science/article/pii/S235249282300627X (accessed on 25 January 2024).
  31. Huang, B.; Liu, Y.; Zhou, Z.; Cheng, W.; Liu, X. Selective Laser Melting of 7075 Aluminum Alloy Inoculated by Al–Ti–B: Grain Refinement and Superior Mechanical Properties. Vacuum 2022, 200, 111030. [Google Scholar] [CrossRef]
  32. Kochetov, N.A.; Sytschev, A.E. Effects of Magnesium on Initial Temperature and Mechanical Activation on Combustion Synthesis in Ti–Al–Mg System. Mater. Chem. Phys. 2021, 257, 123727. [Google Scholar] [CrossRef]
  33. Gao, M.; Chen, T. Formation of Intermetallic Compounds during Reaction between Ti and Al–Mg Alloys with Various Mg Contents. J. Mater. Sci. Technol. 2023, 159, 225–243. [Google Scholar] [CrossRef]
  34. Mogucheva, A.; Yuzbekova, D.; Kaibyshev, R.; Lebedkina, T.; Lebyodkin, M. Effect of Grain Refinement on Jerky Flow in an Al-Mg-Sc Alloy. Metall. Mater. Trans. A 2016, 47, 2093–2106. [Google Scholar] [CrossRef]
  35. Spierings, A.B.; Dawson, K.; Kern, K.; Palm, F.; Wegener, K. SLM-Processed Sc- and Zr- Modified Al-Mg Alloy: Mechanical Properties and Microstructural Effects of Heat Treatment. Mater. Sci. Eng. A 2017, 701, 264–273. [Google Scholar] [CrossRef]
  36. Enhanced Strength and Ductility in Sand-Cast Al-Li-Cu-Mg-Zr Alloy via Synergistic Microalloying with Sc and Ti—ScienceDirect. Available online: https://www.sciencedirect.com/science/article/pii/S0925838823022570 (accessed on 4 September 2023).
  37. Hansen, N. Hall–Petch Relation and Boundary Strengthening. Scr. Mater. 2004, 51, 801–806. [Google Scholar] [CrossRef]
  38. Liu, X.; Liu, Y.; Zhou, Z.; Zhong, H.; Zhan, Q. A Combination Strategy for Additive Manufacturing of AA2024 High-Strength Aluminium Alloys Fabricated by Laser Powder Bed Fusion: Role of Hot Isostatic Pressing. Mater. Sci. Eng. A 2022, 850, 143597. [Google Scholar] [CrossRef]

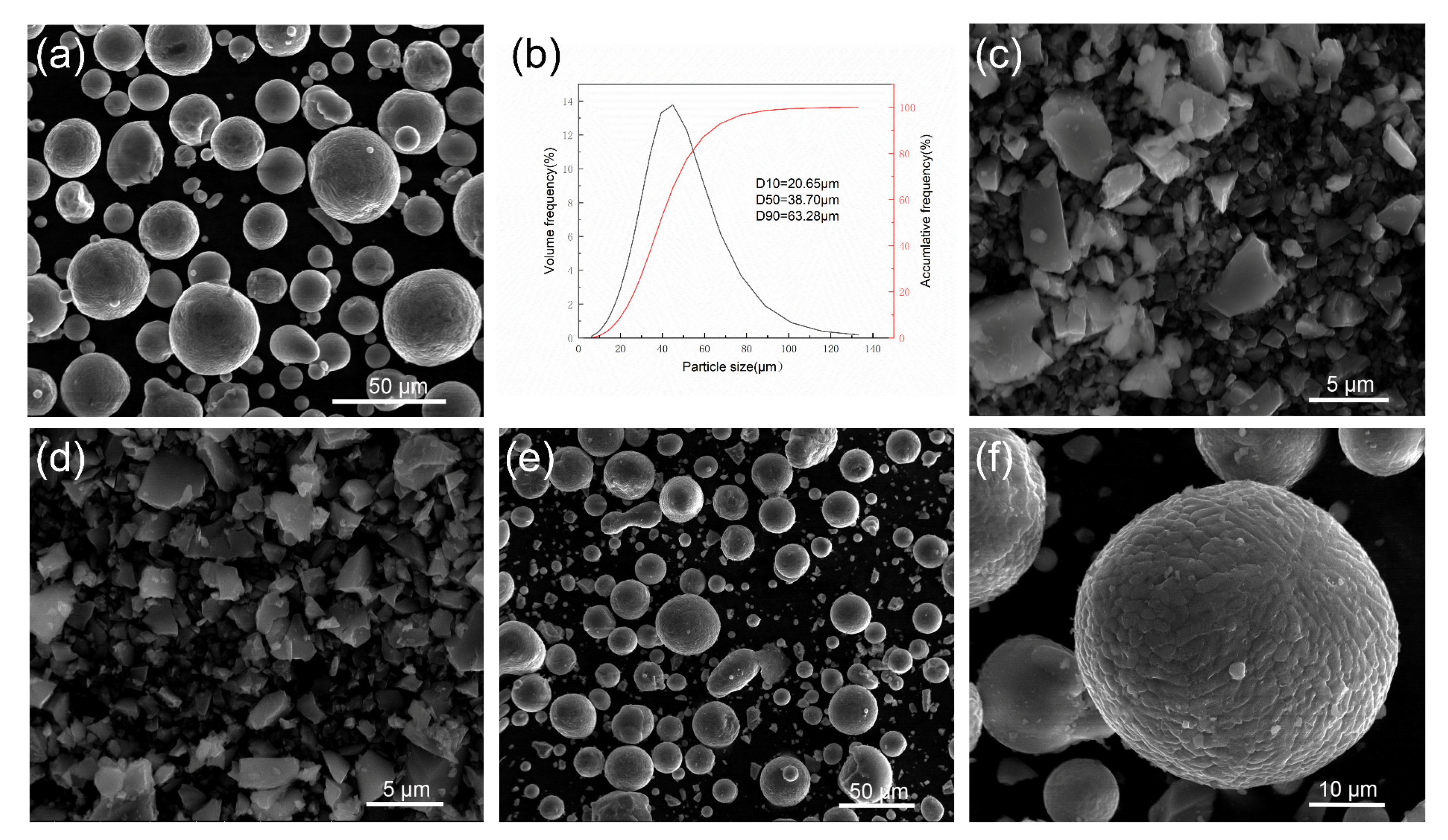

Figure 1. (a) Al-Mg alloy powders, (b) size distribution of Al-Mg alloy powders, (c) ScH3 powders, (d) TiH2 powders, (e) (TiH2+ScH3)/Al-Mg composite powders and (f) a magnified section of (e).
Figure 1. (a) Al-Mg alloy powders, (b) size distribution of Al-Mg alloy powders, (c) ScH3 powders, (d) TiH2 powders, (e) (TiH2+ScH3)/Al-Mg composite powders and (f) a magnified section of (e).
Materials 17 00686 g001

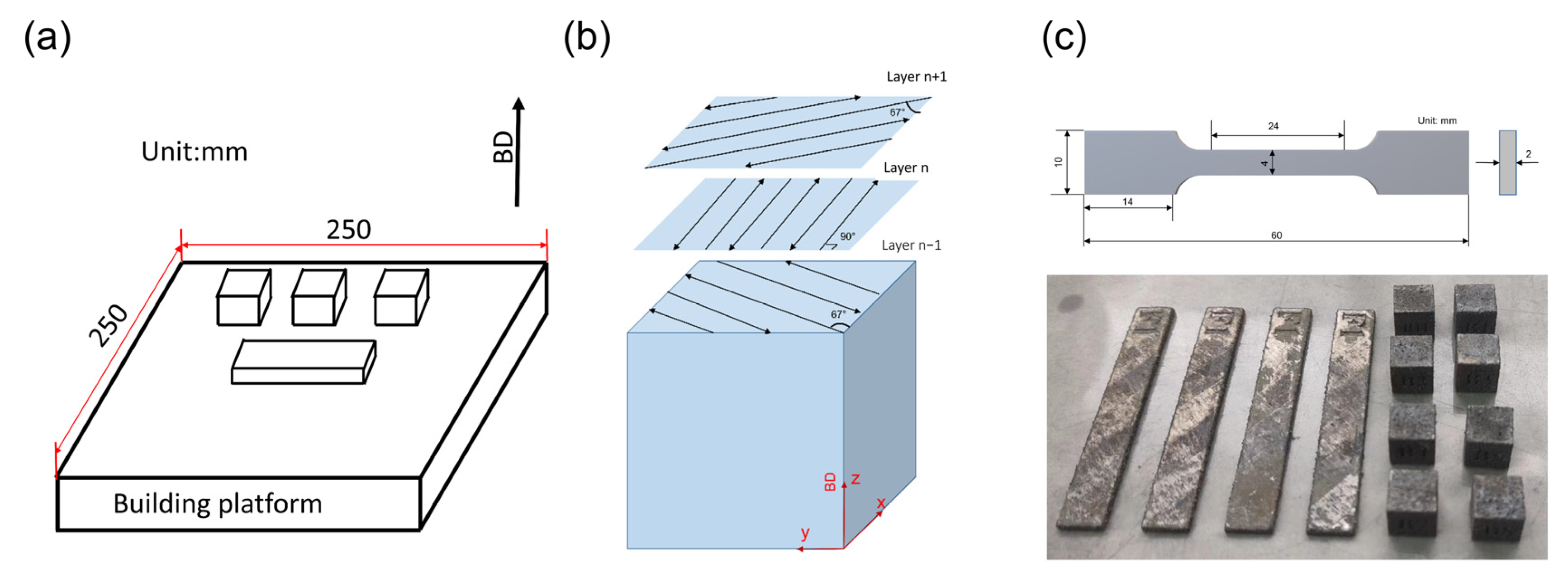

Figure 2. (a) Schematic diagram of the LPBF process, (b) schematic diagram of the laser scanning strategy, (c) process scheme of strip sample in (a) and physical drawing of the sample.
Figure 2. (a) Schematic diagram of the LPBF process, (b) schematic diagram of the laser scanning strategy, (c) process scheme of strip sample in (a) and physical drawing of the sample.
Materials 17 00686 g002

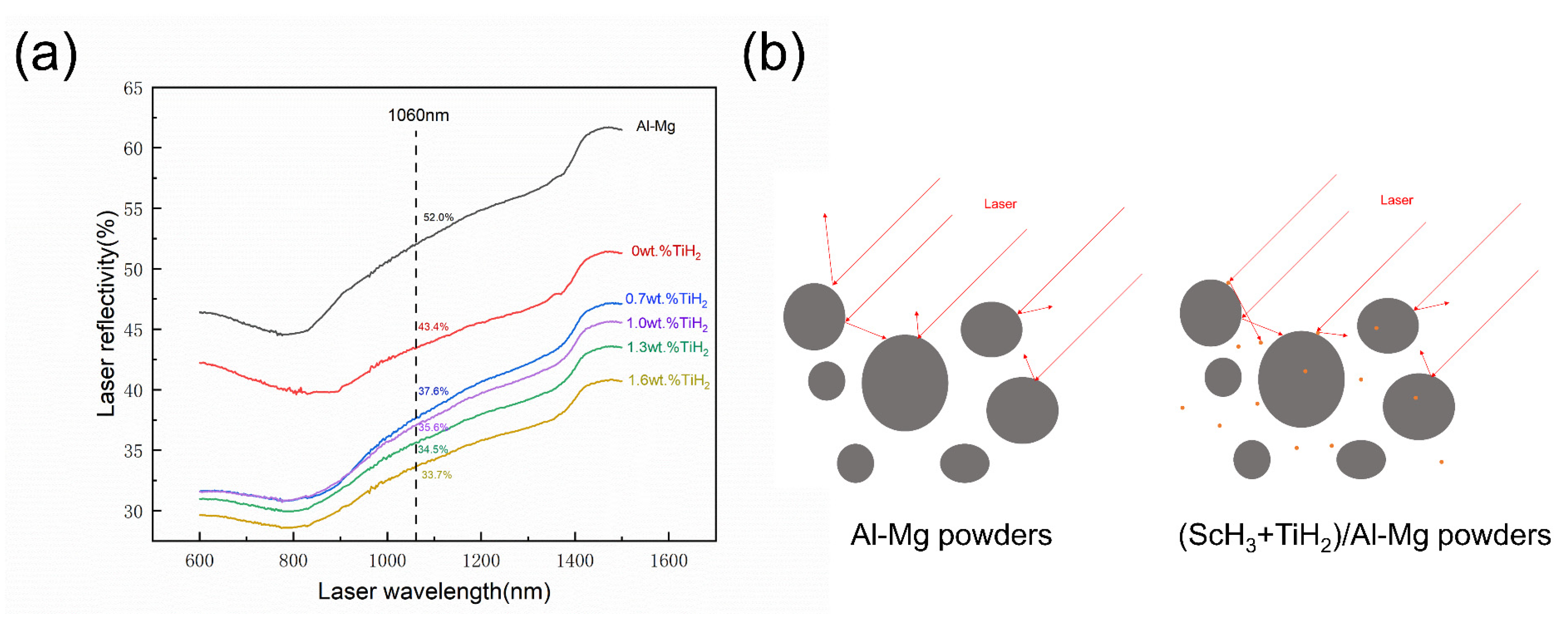

Figure 3. (a) The laser reflectivity of the composite powders. (b) Schematic diagram of the laser acting on the powders.
Figure 3. (a) The laser reflectivity of the composite powders. (b) Schematic diagram of the laser acting on the powders.
Materials 17 00686 g003

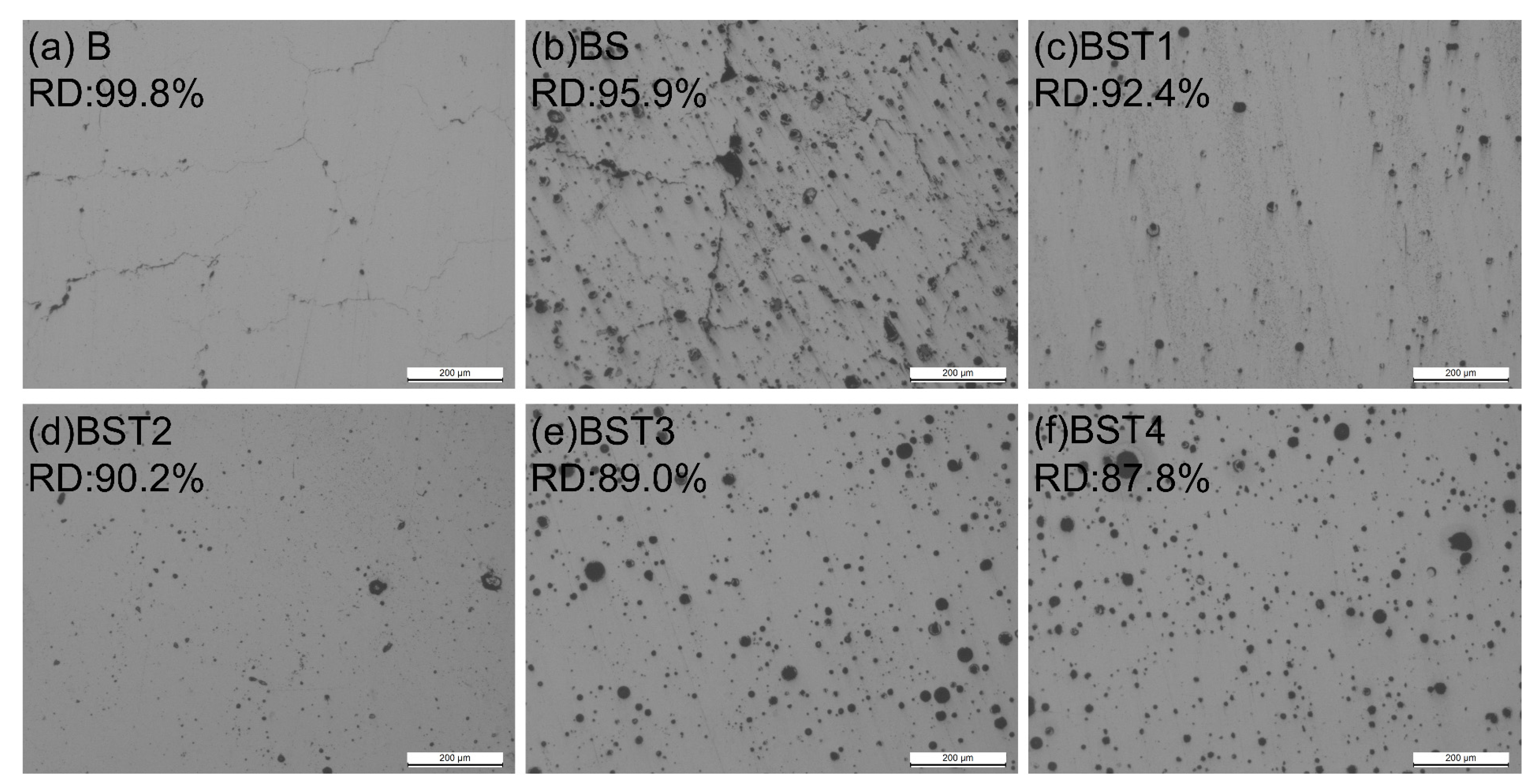

Figure 4. OM images of XOY planes and relative density (RD): (a) B sample, (b) BS sample, (c) BST1 sample, (d) BST2 sample, (e) BST3 sample, (f) BST4 sample.
Figure 4. OM images of XOY planes and relative density (RD): (a) B sample, (b) BS sample, (c) BST1 sample, (d) BST2 sample, (e) BST3 sample, (f) BST4 sample.
Materials 17 00686 g004

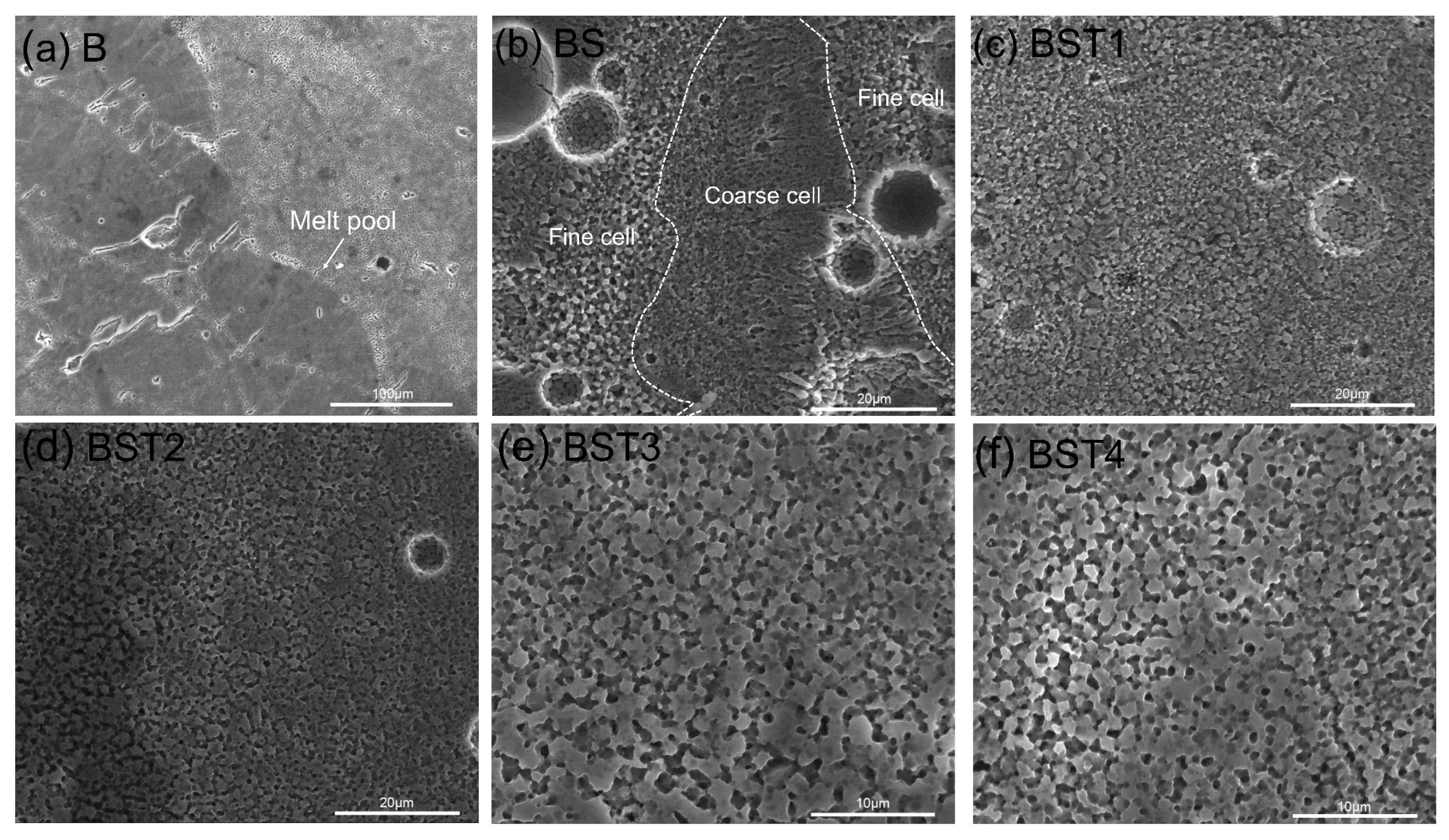

Figure 5. SEM images showing the XOZ plane of samples after etching by the Keller reagent: (a) B sample, (b) BS sample, (c) BST1 sample, (d) BST2 sample, (e) BST3 sample, (f) BST4 sample.
Figure 5. SEM images showing the XOZ plane of samples after etching by the Keller reagent: (a) B sample, (b) BS sample, (c) BST1 sample, (d) BST2 sample, (e) BST3 sample, (f) BST4 sample.
Materials 17 00686 g005
Figure 6. IPF maps, pole figures and grain size distribution images along the building direction of as -fabricated samples: (a) B, (b) BST1, (c) BST2, (d) BST3.
Figure 6. IPF maps, pole figures and grain size distribution images along the building direction of as -fabricated samples: (a) B, (b) BST1, (c) BST2, (d) BST3.
Materials 17 00686 g006

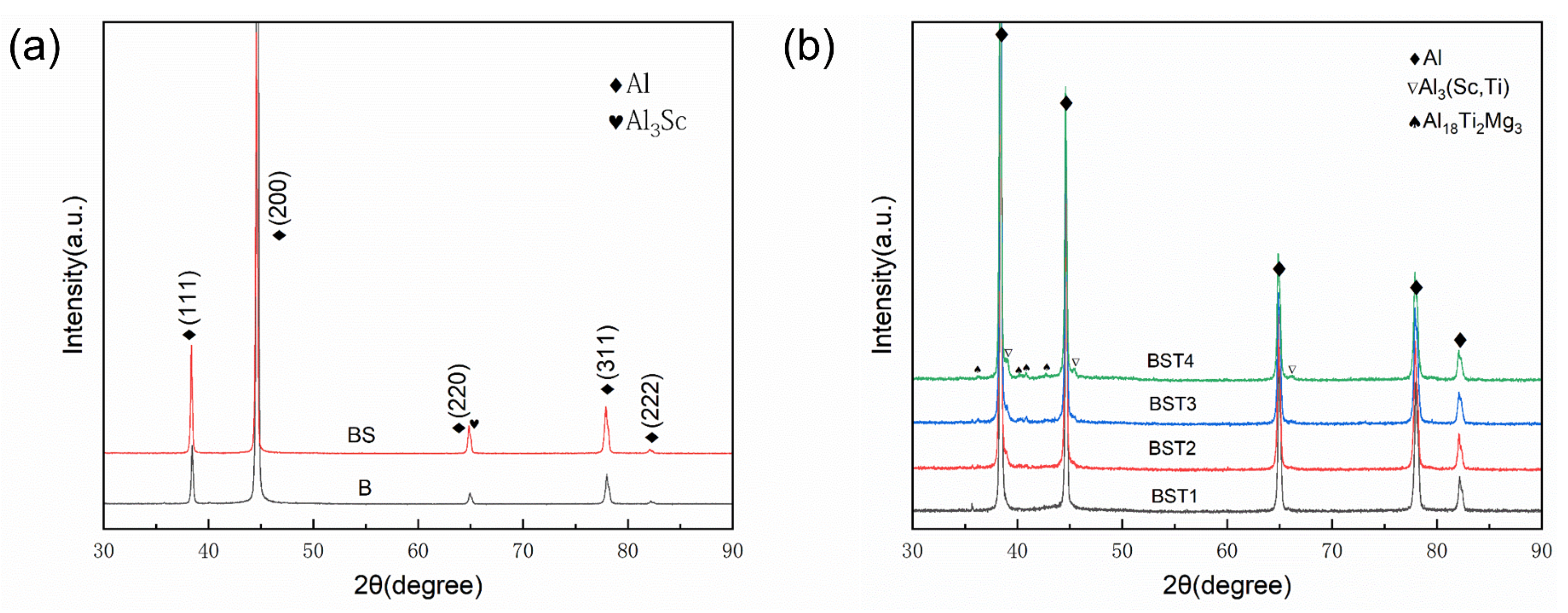

Figure 7. XRD patterns of the as-fabricated samples: (a) B and BS samples; (b) BST group samples.
Figure 7. XRD patterns of the as-fabricated samples: (a) B and BS samples; (b) BST group samples.
Materials 17 00686 g007

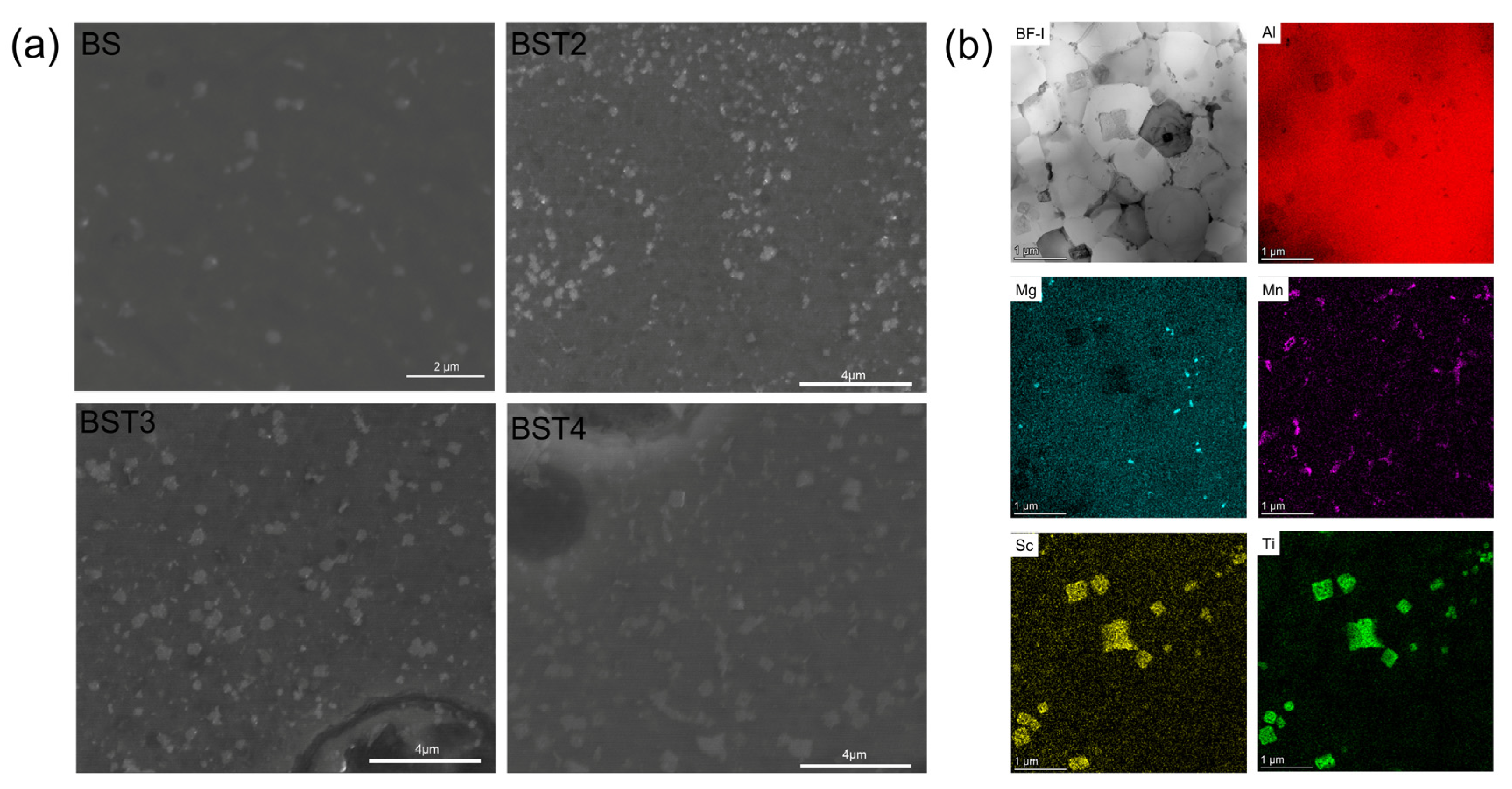

Figure 8. (a) SEM images showing the XOZ plane of samples after etching by NaOH reagent; (b) TEM results of the as-fabricated BST2 sample and EDS elemental mappings.
Figure 8. (a) SEM images showing the XOZ plane of samples after etching by NaOH reagent; (b) TEM results of the as-fabricated BST2 sample and EDS elemental mappings.
Materials 17 00686 g008

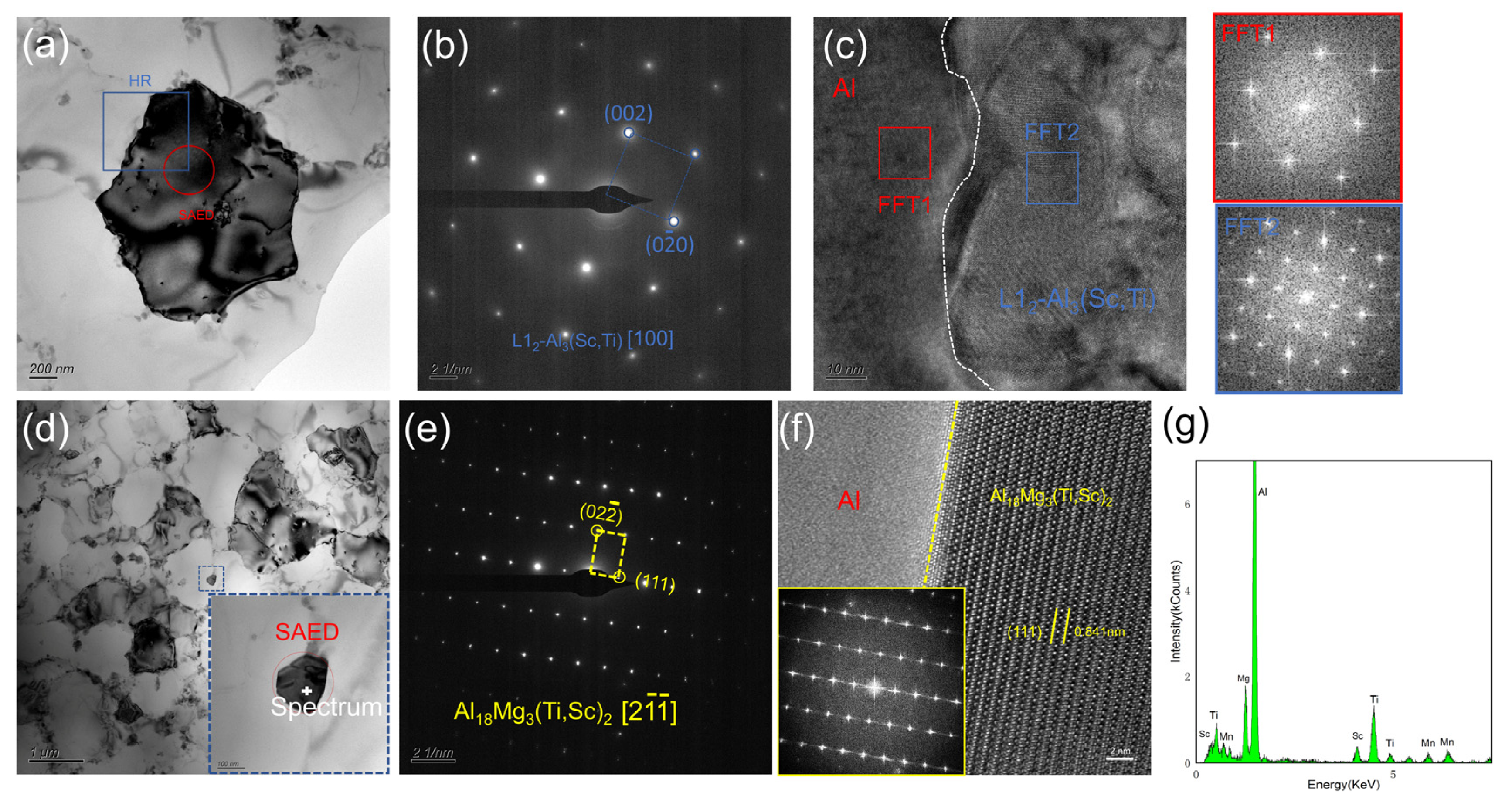

Figure 9. TEM results of the as-fabricated BST2 sample: (a) BF image of Al3(Sc,Ti) particle, (b) SAED pattern in (a), (c) HRTEM image and corresponding FFTs, (d) BF image of Al18Mg3(Ti,Sc)2 particle, (e) SAED pattern in (d), (f) HAADF image and corresponding FFT, (g) EDS spectrum in (d).
Figure 9. TEM results of the as-fabricated BST2 sample: (a) BF image of Al3(Sc,Ti) particle, (b) SAED pattern in (a), (c) HRTEM image and corresponding FFTs, (d) BF image of Al18Mg3(Ti,Sc)2 particle, (e) SAED pattern in (d), (f) HAADF image and corresponding FFT, (g) EDS spectrum in (d).
Materials 17 00686 g009

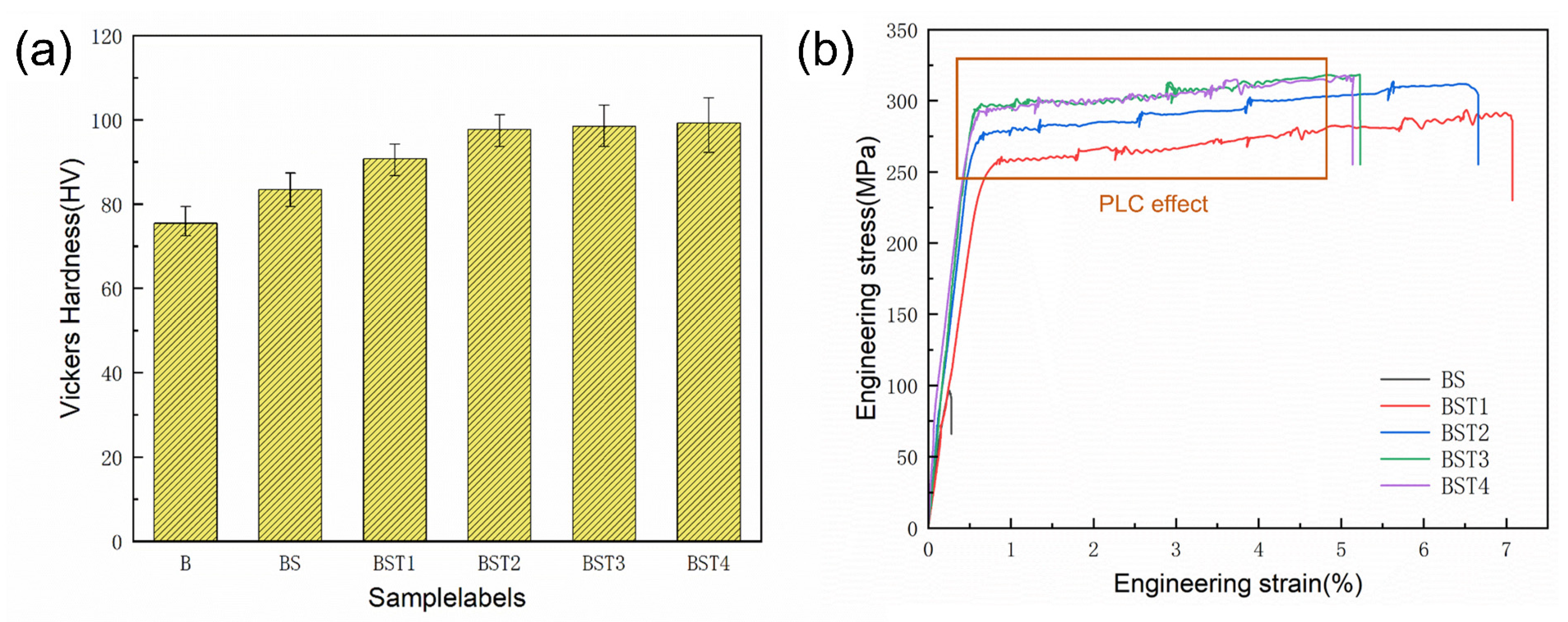

Figure 10. Mechanical properties of the as-fabricated samples: (a)Vickers Hardness; (b) stress–strain curves of as-fabricated BS and BST group samples.
Figure 10. Mechanical properties of the as-fabricated samples: (a)Vickers Hardness; (b) stress–strain curves of as-fabricated BS and BST group samples.
Materials 17 00686 g010

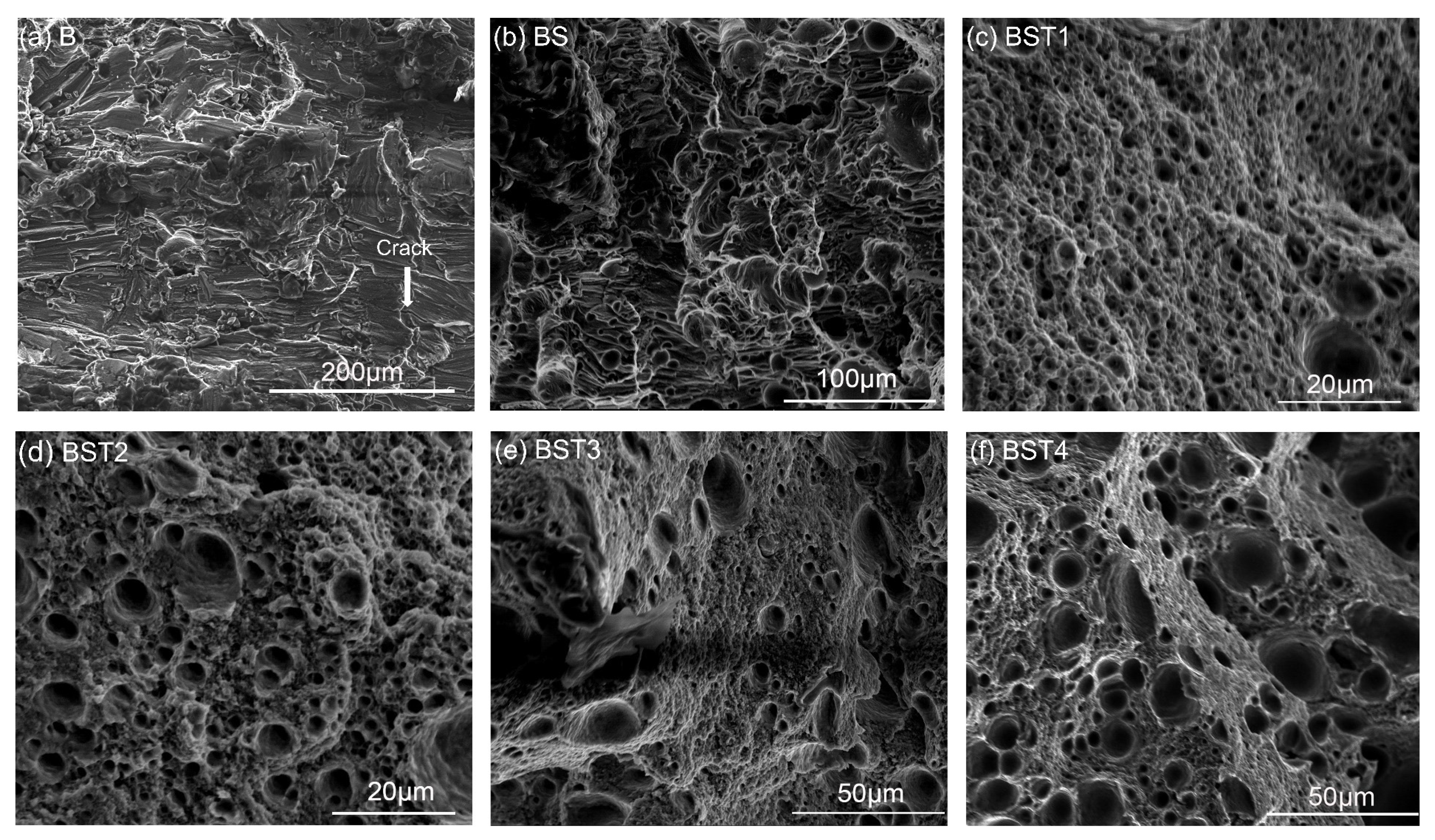

Figure 11. Fracture morphologies of the as-fabricated samples: (a) B sample, (b) BS sample, (c) BST1 sample, (d) BST2 sample, (e) BST3 sample, (f) BST4 sample.
Figure 11. Fracture morphologies of the as-fabricated samples: (a) B sample, (b) BS sample, (c) BST1 sample, (d) BST2 sample, (e) BST3 sample, (f) BST4 sample.
Materials 17 00686 g011

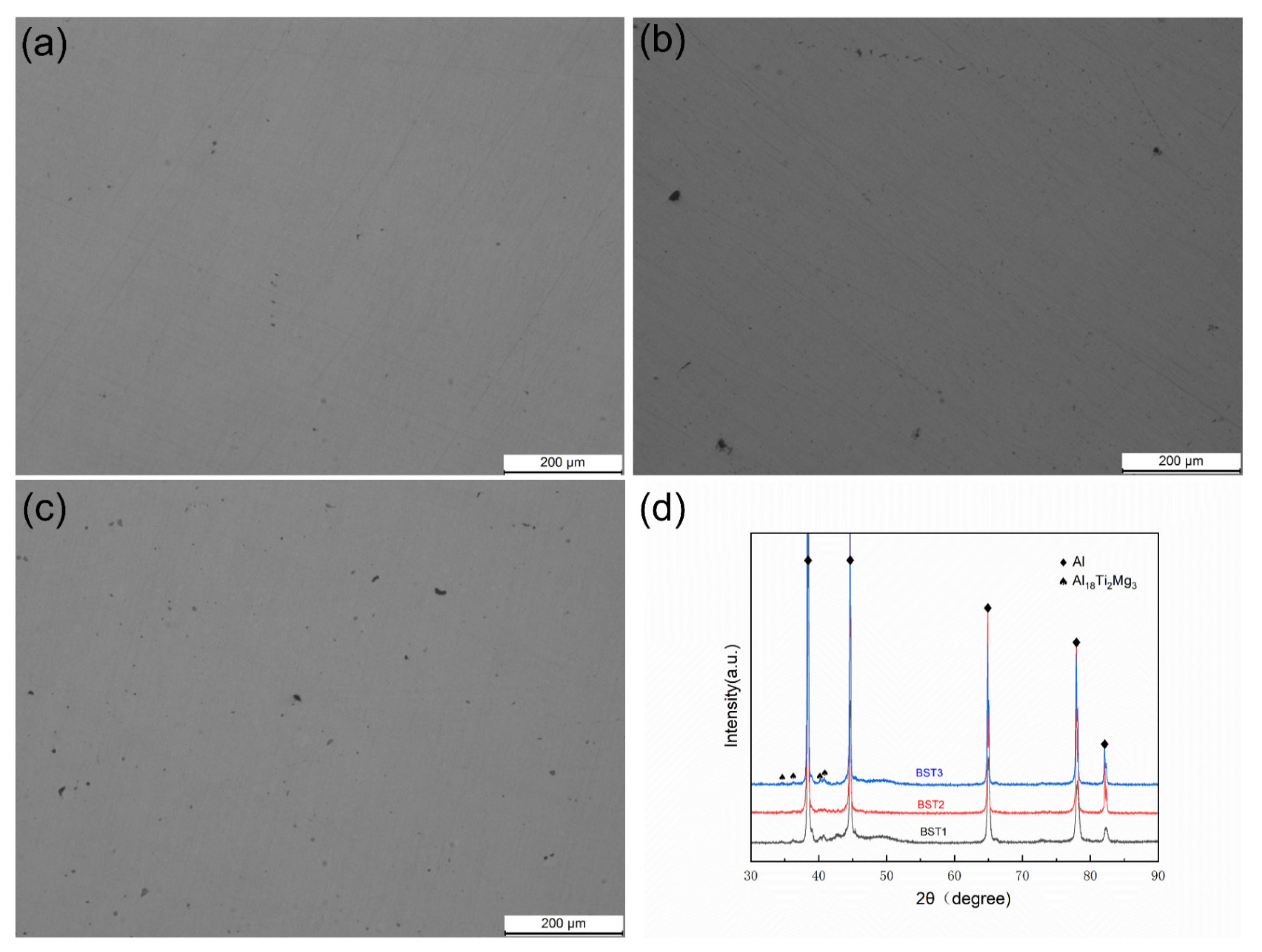

Figure 12. OM images of samples after HIP: (a) BST1, (b) BST2, (c) BST3 and (d) XRD patterns of these samples.
Figure 12. OM images of samples after HIP: (a) BST1, (b) BST2, (c) BST3 and (d) XRD patterns of these samples.
Materials 17 00686 g012
Figure 13. EBSD IPF images of the HIPed samples: (a) BST1, (b) BST2, (c) BST3.
Figure 13. EBSD IPF images of the HIPed samples: (a) BST1, (b) BST2, (c) BST3.
Materials 17 00686 g013

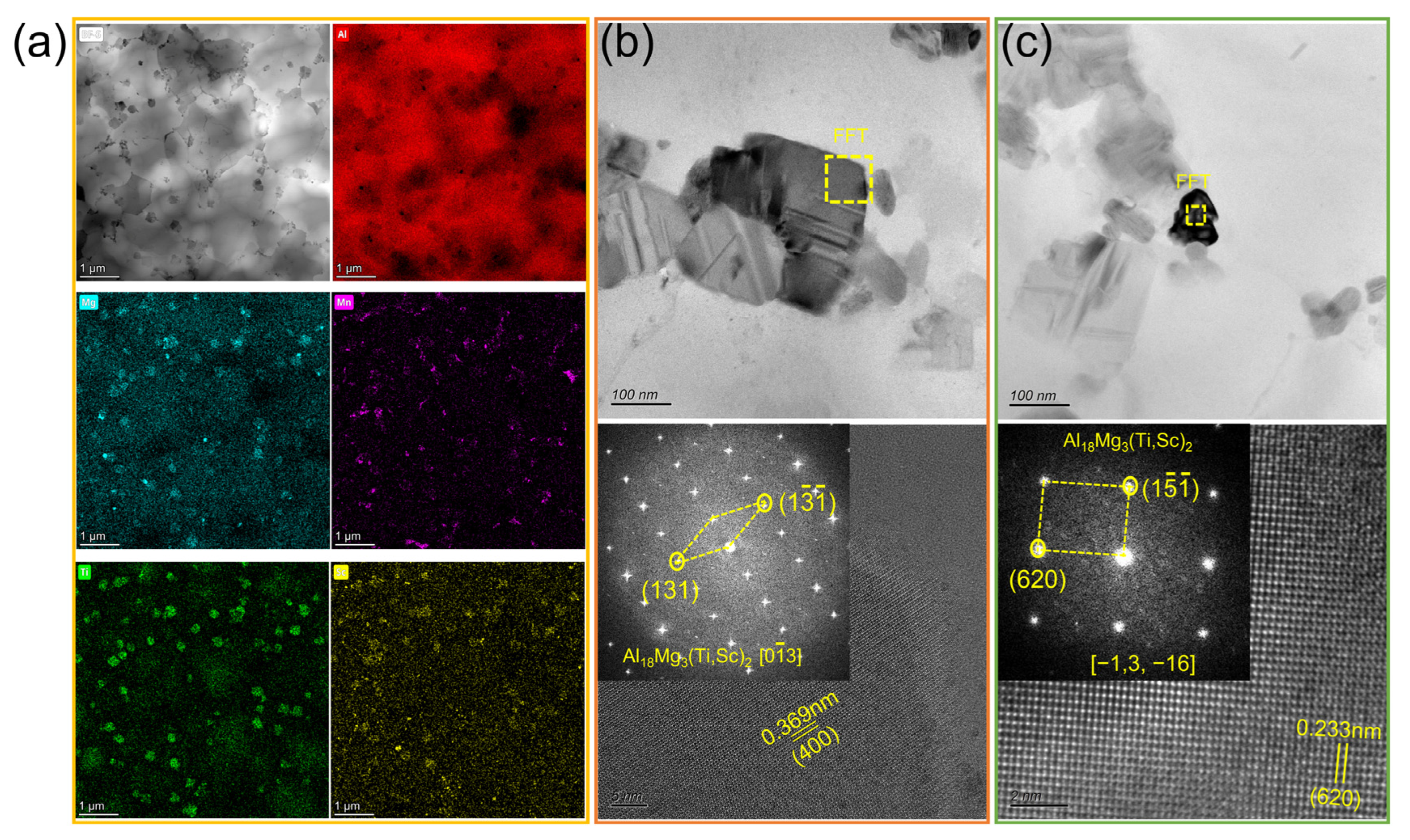

Figure 14. TEM results of the BST2 sample after HIP: (a) BF image with corresponding EDS elemental maps; (b,c) BF images and HRTEM with FFT of Al18Mg3(Ti,Sc)2.
Figure 14. TEM results of the BST2 sample after HIP: (a) BF image with corresponding EDS elemental maps; (b,c) BF images and HRTEM with FFT of Al18Mg3(Ti,Sc)2.
Materials 17 00686 g014
Figure 15. (a) Stress–strain curves of HIPed samples, with the inset table showing average values of UTS, YS, El and Hardness; (b) fracture morphologies of the samples in (a).
Figure 15. (a) Stress–strain curves of HIPed samples, with the inset table showing average values of UTS, YS, El and Hardness; (b) fracture morphologies of the samples in (a).
Materials 17 00686 g015
Table 1. Sample labels of LPBF processed Sc-/Ti-modified Al-Mg alloys.
Table 1. Sample labels of LPBF processed Sc-/Ti-modified Al-Mg alloys.
Sample LabelsTiH2 ContentScH3 ContentAl-Mg Content
B--All
BS-0.7Bal
BST10.70.7Bal
BST21.00.7Bal
BST31.30.7Bal
BST41.60.7Bal
Table 2. Optimized LPBF processing parameters.
Table 2. Optimized LPBF processing parameters.
Process ParameterValue
Hatching spacing110 μm
Laser power360 W
Layer thickness30 μm
Scanning speed800 mm/s
