Article

First-Principles Study of the Effect of Sn Content on the Structural, Elastic, and Electronic Properties of Cu–Sn Alloys

1
Faculty of Material Science and Engineering, Kunming University of Science and Technology, Kunming 650093, China
2
City College, Kunming University of Science and Technology, Kunming 650093, China
3
Chengdu Tonglin Casting Industrial Co., Ltd., Chengdu 610000, China
*
Authors to whom correspondence should be addressed.
Crystals 2023, 13(11), 1532; https://doi.org/10.3390/cryst13111532
Submission received: 25 September 2023 / Revised: 18 October 2023 / Accepted: 19 October 2023 / Published: 24 October 2023

Abstract

:
In order to explore the mechanism of the influence of Sn contents on the relevant properties of Cu–Sn alloys, the structure, elasticity, electronic, and thermal properties of Cu–Sn alloys doped with different proportions of Sn (3.125 at%, 6.25 at%, and 9.375 at%) were established using the first-principles calculation based on density functional theory. Firstly, their lattice constants and Sn concentration comply with Vegard’s Law. From the mixing enthalpy, it can be seen that Sn atoms can be firmly dissolved in the Cu matrix, and the structure is most stable when the Sn content is 3.125 at%. In addition, the introduction of mismatch strain characterized their solid solution strengthening effect. The elastic and electronic properties showed that when the Sn content is 6.25 at%, the Cu–Sn alloy has the best plasticity and the highest elastic anisotropy; when the Sn content is 3.125 at%, the Cu–Sn alloy is the most stable and has stronger bulk and shear modulus, which was mainly due to a stronger Cu-Cu covalent bond. Finally, the Debye temperature, thermal conductivity, and melting point were calculated. It is estimated that the thermal conductivity of Cu–Sn alloy is relatively good when the Sn content is low.

1. Introduction

As one of the important engineering structural materials, Cu–Sn (bronze) alloys have important application values in the fields of aerospace, marine, electrical appliances, and other fields due to their excellent wear resistance, corrosion resistance, thermal conductivity, and electrical conductivity, as well as sufficient strength and ductility [1,2,3,4]. The mechanical properties of Cu–Sn alloys are closely related to the content of the alloying element Sn. Due to different phase compositions, Cu–Sn alloys with different Sn content have different applications. When the Sn content is between 3 and 4 wt.%, it is mainly used for elastic components, wear-resistant parts, and antimagnetic parts; when the Sn content is between 5 and 11 wt.%, it is mainly used for bearings, shaft sleeves, turbines, etc. [5]. Therefore, Sn content is a key factor affecting the mechanical properties of Cu–Sn alloys.
In recent years, the first-principles calculations have become a powerful complement to solve the difficulties in the production and preparation process of Cu alloys and conduct extensive development and prediction of new Cu alloys, bridging the gap between theory and experiment. Wen et al. [6] studied the energy, elasticity, and electronic properties of Fe–Cu disordered solid solution alloys (Cu doping ratios of 25 at%, 37.5 at%, and 50 at%, respectively), and found that the elastic stability of Fe–Cu disordered solid solution was positively correlated with the Cu content. Zhou et al. [7] calculated key physical parameters such as elastic constants, bulk modulus, heat capacity, Debye temperature, and volumetric thermal expansion coefficient of Cu6Sn5 and Cu5Zn8 alloy phases. The calculated results were in agreement with experimental data, indicating that both Cu6Sn5 and Cu5Zn8 alloy phases were elastic anisotropic, and that Cu6Sn5 had a low bulk modulus. Rong et al. [8] calculated the elastic properties and anisotropy of Cu3Sn, indicating that in-depth discussion of the anisotropy of intermetallic compounds with preferential growth and large volume fraction in the joint will be of great significance for accurately characterizing the mechanical behavior of the entire joint. In summary, the first-principles method can accurately study and predict the mechanical properties of copper alloys. However, currently, the calculation of Cu–Sn alloys mainly focuses on the specific phase structure of copper alloys, and there are few studies on the effect of Sn content on the properties and properties of copper alloy disordered solid solutions. Therefore, under the premise of ensuring the basic stability of the fcc structure, it is necessary to establish a model of Cu–Sn disordered solid solution to study the effect of tin solute on its related properties.
In this study, the phase stability, mechanical properties, and electronic properties of Cu–Sn alloys with Sn content of 3.125 at%, 6.25 at%, and 9.375 at% have been systematically studied using a first-principles calculation method. The lattice constant, mixing enthalpy, yield stress, elastic constant, elastic modulus, density of state, differential charge density, and Debye temperature were calculated. This provides a theoretical basis for the subsequent research on Cu–Sn alloys and the design, development, and wide application of new copper alloys. It is worth mentioning that, according to the Cu–Sn phase diagram, the solid solution limit of Sn in Cu matrix is 15.8 wt.% (9.2 at%) [9]. When the Sn content is greater than 15.8 wt.%, in addition to solid solution, the δ-phase (Cu41Sn11) occurs, which adversely affects the properties and applications of the material [10,11]. The generation of the δ-phase should be avoided or reduced as much as possible in the practical production applications. Therefore, the δ-phase was not discussed in this study.

2. Calculation Method and Details

The calculations were all performed using the CASTEP (Cambridge Serial Total-Energy Package) [12,13,14] code, which is based on the first-principles plane-wave pseudopotential method of density functional theory (DFT) [15] to perform quantum mechanical calculations. The ultrasoft pseudopotential (USPPs) was used to evaluate the interaction between valence electrons and ions. In this case, the valence electron configurations of Cu and Sn are 3p63d104s1 and 4d105s25p2, respectively. In addition, the generalized gradient approximation (GGA) of Perdew–Burke–Ernzerhof (PBE) is used to approximate the effect of the exchange–correlation energy on the calculated results [16]. In this calculation, 2 × 2 × 2 supercells based on fcc structure were established by Perl Script enumeration of alloy structures. According to the Lowest Energy Principle, the stability models (Cu31Sn, Cu30Sn2, and Cu29Sn3) of Cu–Sn alloys with Sn contents of 3.125 at%, 6.250 at%, and 9.375 at% were screened out, respectively, as shown in Figure 1 and Table 1. The detailed modelling methodology is shown in Appendix A.1.
The BFGS (Broyden–Fletcher–Goldfarb–Shanno) [17] minimization algorithm was then chosen to optimize these structures by full relaxation to bring the system to a more stable state. Then, after convergence tests, the maximum truncation energy of the plane wave basal energy was set to 450 eV, and the k-point sampling network in the Brillouin zone was generated based on the Monkhorst–Pack scheme and set to 5 × 5 × 5. In the geometric optimization and electronic property calculations, the convergence tolerances for the total energy, maximum force, maximum stress, and maximum displacement were set to 1 × 10−5 eV/atom, 0.03 eV/Å, 0.05 GPa, and 0.001 Å. For the calculation of elastic properties, the convergence tolerances for total energy, maximum force, and maximum displacement were set to 2 × 10−6 eV/atom, 0.006 eV/Å, and 2 × 10−4 Å, respectively, and the number of steps and maximum strain amplitude for each strain were set to 4 and 0.003.

3. Results and Discussion

3.1. Lattice Constant

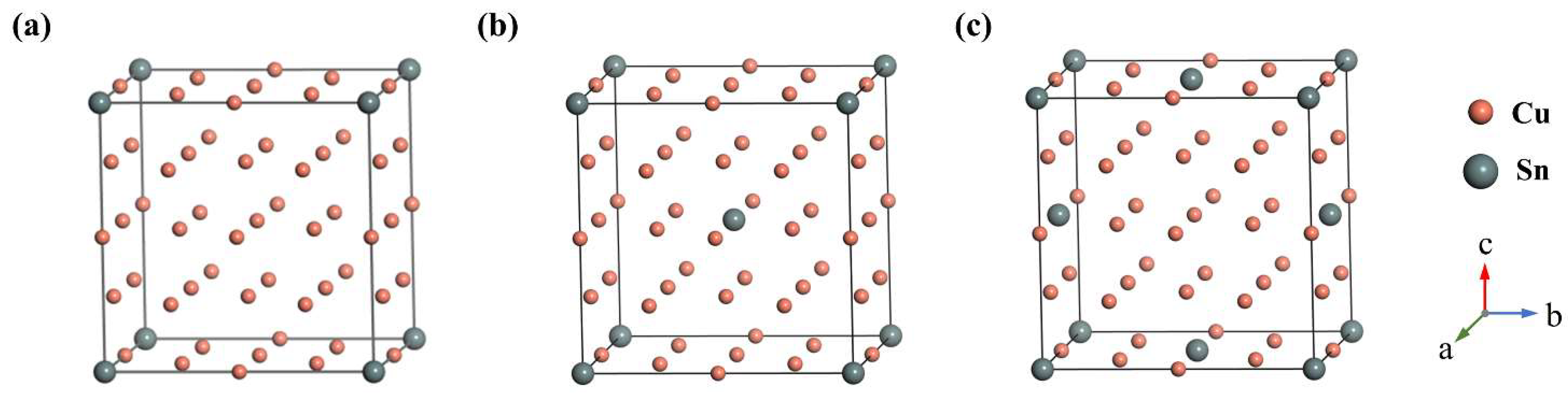

The lattice constant can reflect the structure of the crystal and its internal composition, which is the basic parameter of the crystal structure and the basis for the study of the material structure [18]. The optimized lattice constants of Cu, Cu31Sn, Cu30Sn2, and Cu29Sn3 are shown in Table 2. To verify the accuracy of the calculation results, the lattice constants of the pure copper model were compared with the experimental result [19] reported in other literature, which showed a difference of 0.387%. In general, the difference of the lattice constant is within 1%, which means that the obtained pseudopotential can be considered as a good pseudopotential [20], thus indicating that the model, conditions, and parameters are more reasonable. Figure 2 shows the calculated values of the lattice constant as a function of solute concentration, which was fitted linearly to obtain the following equation:
a (Å) = 3.629 + 1.144c with R = 0.99995
The result from E. Sidot [21] is also reported in Figure 2, where the same linear regression calculation was performed on these data. The relevant equation is as follows:
a (Å) = 3.615 + 1.054c with R = 0.9997
The results show that the lattice constants of Cu–Sn alloys are proportional to the solute concentration, in full compliance with Vegard’s law. As can be seen from Figure 2, the calculated data agreed well with the slope of the experimental data, although the calculated results do not fully agree with the experimental results in terms of intercept (equal to the lattice constant of pure Cu). The focus of this study is on the trend of lattice constant change, rather than the absolute value of lattice constant. The discrepancies between the calculated and experimental values of the pure Cu lattice constant are mainly due to thermal expansion and the limitations of the GGA [20]. Therefore, the optimized lattice constants can be used for subsequent calculations.

3.2. Enthalpy of Mixing

From the energy point of view, the mixing enthalpy H m i x i n g is usually introduced to describe the dissolution of the solute atom Sn in the Cu matrix, which expresses the relationship between the energies of two binary alloys with the same structure. However, the most stable structure of the element Sn in the ground state is not the fcc structure. The Birch–Murnaghan equation reveals the internal structure and properties of solids by investigating their rate of change of volume and modulus of elasticity at different pressures. The energy–volume (E-V) curve can be obtained by fitting this equation to obtain the total static energy of the pure element, which can then be substituted to obtain the enthalpy of mixing. In this calculation, in order to obtain the equilibrium volume V 0 and the static energy E 0 of the element Sn in the fcc structure, the energy–volume (E-V) curve in the ground state was fitted by the Birch–Murnaghan equation of state with the following empirical equation [22]:
E V = E 0 + 9 V 0 B 0 16 V 0 V 2 3 1 3 B 0 + V 0 V 2 3 1 2 6 4 V 0 V 2 3
where E 0 and V 0 are the static energy and equilibrium volume of each atom at steady state, respectively, while B 0 and B′0 are the first-order derivatives of the bulk modulus and bulk modulus with respect to the pressure, respectively.
The enthalpy of mixing can then be calculated by the following equation:
H m i x i n g ( C u x S n y ) = E t o t a l C u x S n y x E a t o m C u y E a t o m ( S n ) x + y
where H m i x i n g ( C u x S n y ) ,   E t o t a l C u x S n y ,   E a t o m C u , and E a t o m ( S n ) represent the mixing enthalpy, the static total energy of the Cu–Sn alloy, the static total energy of pure Cu and solute atom Sn, respectively, and x and y are the quantities of pure Cu and solute atom Sn, respectively.
Some scholars [23] pointed out that when evaluating the solid solubility of elements from the mixing enthalpy, if the contribution of entropy after heating is considered, there may be an uncertainty of approximately 0.05 eV/atom. It is shown that when the difference in radius between solute and solvent atoms |∆R| < 15%, a solid solution with larger solid solution will be formed when other conditions are similar; conversely, when |∆R| 15%, the larger the |∆R|, and the smaller the solid solution. As for the electronegativity, if the difference in electronegativity between the group elements is small, a larger solid solution degree will be formed; if the difference is large, it is easier to form stable intermetallic compounds, and even if a solid solution can be formed, its solid solution degree is not large. In this study, the radius difference |∆R| between Cu and Sn is about 23.44%, which indicates a small solid solubility, while the electronegativity difference between the two is 0.06, indicating a large solid solubility. Therefore, the magnitude of solid solubility should be the result of a combination of multiple factors, which is related to the crystal structure, electron concentration, and temperature, in addition to the atomic size and electronegativity [24]. The more negative the mixing enthalpy, the stronger the chemical bond and the better the stability. As can be seen from Table 2, the mixing enthalpies of Cu31Sn, Cu30Sn2, and Cu29Sn3 are all negative, and the negative value of the mixing enthalpy of Cu31Sn is the largest, which is −3.25 kJ/mol, indicating that 3.125 at%, 6.25 at%, and 9.375 at% Sn atoms can be solid-soluble in the Cu matrix, and Cu31Sn (3.125 at%) has the strongest chemical bond and the most stable structure.

3.3. Solid Solution Strengthening

Substitution of some atoms in the copper-based solid solutions by solute atoms will cause lattice distortion. At this point, a strain field is formed around the solute atoms, which hinders the movement of dislocations, leading to solid solution strengthening [18]. Several mechanisms have been proposed to describe the interaction between mobile dislocations and solute atoms, including the size effect [25], modulus effect [26], Suzuki effect [27], and electrostatic interaction [28]. Among them, the size effect and the modulus effect are of more importance since the effect of solid solution strengthening of copper substrates is difficult to present in a quantitative form using conventional experimental methods. Therefore, in this study, based on first principles, we introduce the parameter mismatch strain, which is the local lattice distortion around the solute atom and the size effect mentioned earlier, as a measure of the strength of the solute atom strengthening by the characteristic strain generated by the size difference between some solute atoms represented by elastic inclusions and the pores of the host material in an elastic continuous medium model. The mismatch strain is defined as follows:
ε = d d 0 d 0
where d is the distance between the host atom (Cu) and the first nearest neighbor of the solute atom (Sn), and d 0 is the distance between the host atom (Cu) and the host atom (Cu). At zero pressure, the lattice constant is optimized to a 0 , when the atomic positions are relaxed, and the distance d within the cell is measured. Then, the lattice constant is fixed to a 0 , the atomic positions are fixed to the ideal fcc lattice position, and the distance d 0 within the cell is measured. For the first nearest neighbor solvent atom, the relationship between d 0 and the lattice constant is d 0 = a 0 / 2 . The mismatch strain ε for the first nearest neighbor in the Cu–Sn alloys is shown in Table 3. This parameter is determined based on the average value of the distance between the first nearest neighbor atoms in Cu31Sn, Cu30Sn2, and Cu29Sn3 [20]. According to the Cottrell model [25], the maximum interaction force F m   between solute atoms and edge dislocations is:
F m = 3 2 1 + ν 1 ν G b 2 | ε |
where v is the Poisson’s ratio, G is the shear modulus, b is the Burns vector, and ε is the mismatch strain. In Friedel’s theory [29], the interaction forces between atoms generate a critical decomposition shear stress τ s , which is defined as
τ s = 2 F m 3 / 2 b 3 c G
where c is the concentration of solute atoms. Substituting F m in Equation (6) into Equation (7) and then using the Taylor factor M , one obtains the yield stress σ s   increased by solid solution strengthening of the polycrystalline alloy with the following relation:
σ s = M 3 3 4 2 ( 1 + v 1 v ) 3 / 2 G | ε | 3 / 2 c
In Cu–Sn alloys, the value of M is 3.06 [30]. Table 3 summarizes the misfit strain ε induced by solid solution of Sn atom into the Cu matrix and the contribution of solid solution strengthening to the yield stress of Cu–Sn alloys. The Poisson’s ratio v and shear modulus G in Equation (8) are obtained from Table 4; Table 5 below.

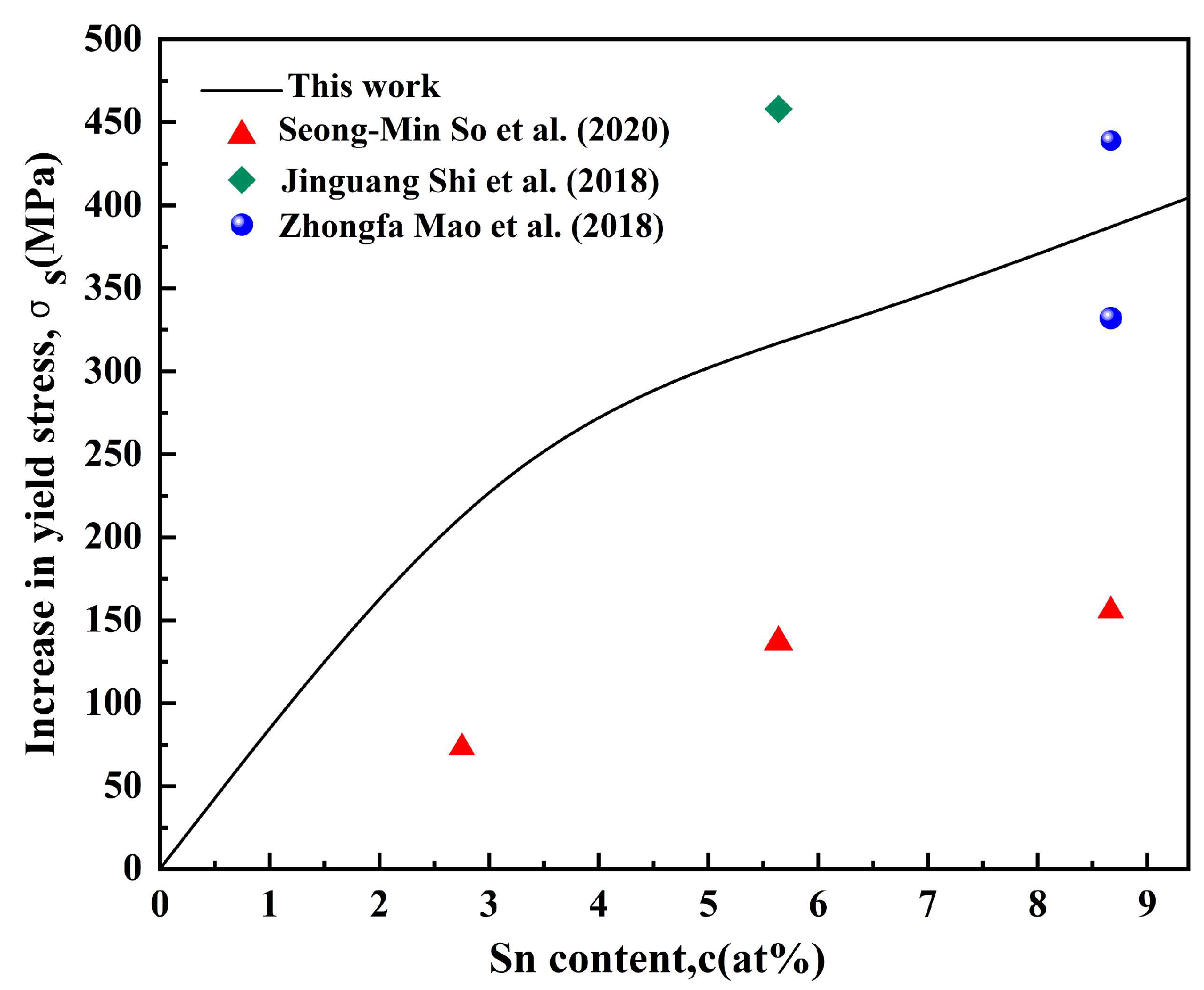

Figure 3 shows the relationship between the Sn content and the yield stress values in Cu–Sn alloys, comparing the calculated results with the analytical results of some experimental results [31,32,33]. The experimental values are distributed on both sides of the calculated results. In fact, the yield stress values depend on two major factors. On the one hand, it depends on the intrinsic factors of the material, including the bonding bonds and the influence of the microstructure dominated by four major strengthening mechanisms: solid solution strengthening, strain strengthening, dispersion strengthening, and grain size strengthening; on the other hand, the yield stress values are also affected by some extrinsic factors such as the temperature, the strain rate, and the state of stress [31]. As shown in Table 3, different processing methods and heat treatment conditions lead to different yield stress results when the solute atomic concentration is the same. The first-principles calculations used in this study simulate the relevant properties of the material at a nearly ideal 0 K condition, which differs from the experimental conditions. Hence, the yield strength values are somewhat deviated, but observing the overall trend in Figure 3, the yield stress values of the Cu–Sn alloys increase with the increase of the Sn content. The mismatch strain data obtained from this calculation, to a certain extent, can provide theoretical guidance for the solid solution strengthening effect of Cu–Sn alloys, which is of reference value for the development of new copper alloys with very high yield strength.
Table 3. Theoretical results of mismatch strain caused by Sn atoms in Cu and the contribution of solution strengthening to the yield stress of Cu–Sn alloys. It also includes some solid solution strengthening experimental values.
Table 3. Theoretical results of mismatch strain caused by Sn atoms in Cu and the contribution of solution strengthening to the yield stress of Cu–Sn alloys. It also includes some solid solution strengthening experimental values.
c (at%)ε (%) σ s M P a Notes
Present 3.1251.97233.52
6.25330.24
9.375404.46
Exp.2.753 68.5 ± 4.8As-cast[31]
5.639 133.4 ± 3.5As-cast[31]
458SLM[32]
8.668 139.2 ± 16.6As-cast[31]
436 ± 3SLM[33]
328 ± 4SLM + annealing[33]

3.4. Elastic Properties

The elastic constants of metallic materials usually express their mechanical properties, especially the stability and stiffness of the material [8]. They express the stress condition required to maintain a certain deformation.
In this study, the elastic constants will be obtained by the “stress-strain” method [34], and for cubic crystal, the system has three independent elastic constants: C 11 , C 12 , and C 44 [35].
Table 4 summarizes the elastic constants obtained from this calculation and compares the single-crystal elastic constants C i j of pure Cu with the experimentally reported and previously calculated values. As can be seen from Table 4, the C i j of Cu31Sn, Cu30Sn2, and Cu29Sn3 do not satisfy the cubic crystal structure relationship because the number of independent elastic constants will increase after geometric optimization of the model obtained with supercell disordered modeling, whose crystal structure symmetry is slightly broken due to the quasi-random distribution of solute atoms. Therefore, in the present study, we used the symmetry-based projection (SBP) technique [36,37] to correct the elastic tensor of Cu31Sn, Cu30Sn2, and Cu29Sn3. We usually take the average of the relevant elastic parameters to obtain the elastic constants of these quasi-random systems [35]. The relation is as follows:
C 11 ¯ = ( C 11 + C 22 + C 33 ) 3
C 12 ¯ = ( C 12 + C 13 + C 23 ) 3
C 44 ¯ = ( C 44 + C 55 + C 66 ) 3
The average values of the relevant elastic parameters calculated for Cu31Sn, Cu30Sn2, and Cu29Sn3 are shown in Table 4.
For stable structures, the elastic constants C i j should satisfy the corresponding Born stability criterion [38]. For the cubic crystal system, the elastic constants should satisfy the following criteria: C 11   C 12 > 0, C 11 + 2 C 12 > 0 and C 44 > 0. Observing Table 4, it can be found that the calculated elastic constants of the alloys satisfy the stability criterion, indicating that the Cu–Sn alloys are stable at 0 K. These results are consistent with the actual situation and correspond to the previously calculated mixing enthalpy results.
From the elastic constants, the corresponding bulk modulus B, shear modulus G, Young’s modulus E, and Poisson’s ratio υ can be obtained using the Voigt–Reuss–Hill approximation [39]. The Voigt, Reuss, and Hill approximations of the elastic modulus are denoted by the subscripts V, R, and H, respectively. For cubic structures, the modulus of elasticity can be defined as:
B V = B R = ( C 11 + 2 C 12 ) / 3
G V = ( C 11 C 12 + 3 C 44 ) / 5
G R = 5 C 11 C 12 C 44 / [ 4 C 44 + 3 C 11 C 12 ]
In the V-R-H model, B and G in the Hill model are obtained by taking the average of B or G in the Voigt and Reuss models,
B H = 1 2 ( B V + B R )
G H = 1 2 ( G V + G R )
Meanwhile, the relationship between Young’s modulus E and Poisson’s ratio υ can be obtained,
E = 9 B G 3 B + G
υ = 3 B 2 G 6 B + 2 G
Calculated values of elastic parameters for Cu and Cu–Sn alloys (Cu31Sn, Cu30Sn2, and Cu29Sn3) are presented in Table 5. In order to verify the reliability of the calculated results, the calculated values of the elastic parameters for copper in Table 4; Table 5 were compared with the previously reported experimental values [40,41,42] and theoretical values [43,44]. The elastic parameters obtained in this study are in better agreement with the reference values, indicating that the calculated parameters and method have high reliability and certain reference values.
Table 4. Elastic constants C i j of Cu–Sn alloys. The present calculation results are compared with experimentally reported and other theoretical values.
Table 4. Elastic constants C i j of Cu–Sn alloys. The present calculation results are compared with experimentally reported and other theoretical values.
StructureSourceElastic Constants of Crystals (GPa)
C 11 C12C13C22C23C33 C 44 C55C66
CuPresent184.5116.7 77.1
Exp.at 4.2 K a176.2124.9 81.8
Exp.at RT b170122.5 75.8
Exp.at RT c168.1121.5 75.1
Cal. d176118.2 81.9
Cal. e183.5125.9 80.9
Cu31SnPresent
Present (SBP)
182.98
182.93
109.79
109.73
109.69183.01109.71182.8078.13
78.13
78.1378.13
Cu30Sn2Present
Present (SBP)
158.44
158.27
130.77
129.82
128.96159.97129.74156.3961.33
61.34
61.3561.35
Cu29Sn3Present
Present (SBP)
160.51
160.69
107.29
106.89
106.40161.68106.97159.8875.63
75.62
75.6275.62
a Experimental data reported in Ref. [40]. b Experimental data reported in Ref. [41]. c Experimental data reported in Ref. [42]. d Calculated data reported in Ref. [43]. e Calculated data reported in Ref. [44].
Table 5. The calculated bulk modulus BH (GPa), shear modulus GH (GPa), Young’s modulus E (GPa), Poisson’s ratio υ, Pugh’s ratio GH/BH, Cauchy pressure C12-C44, dislocation strain energy W, and universal elastic anisotropy AU for Cu–Sn alloys. The present calculation results are compared with experimentally reported and previously computed values.
Table 5. The calculated bulk modulus BH (GPa), shear modulus GH (GPa), Young’s modulus E (GPa), Poisson’s ratio υ, Pugh’s ratio GH/BH, Cauchy pressure C12-C44, dislocation strain energy W, and universal elastic anisotropy AU for Cu–Sn alloys. The present calculation results are compared with experimentally reported and previously computed values.
StructureSourceModulus υGH/BHC12-C44W/J·m−1AU
BH (GPa)GH (GPa)E (GPa)
CuPresent139.755.7147.50.320.4039.60.3670.83
Exp.at 4.2 K14251.5137.80.340.36 1.80[40]
Exp.at RT138.347.7128.30.350.35 1.81[41]
Exp.at RT137.047.1126.70.350.34 1.84[42]
Cal.137.454.0143.30.330.39 1.42[43]
Cal.145.153.5142.90.340.37 1.40[44]
Cu31SnPresent134.1357.63151.230.310.4331.600.3870.72
Cu30Sn2Present139.0134.4395.420.390.2568.480.2363.06
Cu29Sn3Present124.8149.99132.310.320.4031.270.3491.40

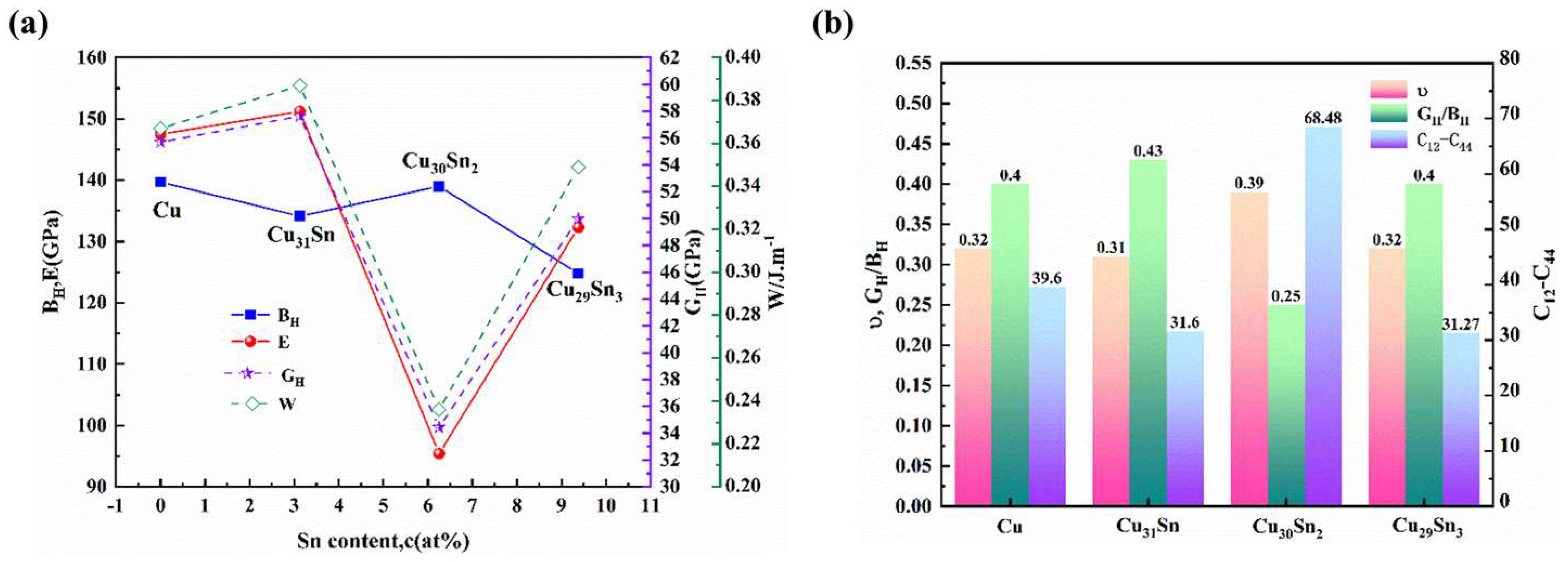

Figure 4a shows the changes in BH, GH, and E of Cu, Cu31Sn, Cu30Sn2, and Cu29Sn3 as the content of Sn increases. In general, the bulk modulus BH is used to characterize the incompressibility of a material. The higher the BH value, the less likely the material is to compress under external forces. The shear modulus GH is defined as the ability of a material to resist shear deformation. If the shear modulus GH is larger, it indicates that the directional bonding between atoms is more significant. The Young’s modulus E is a physical quantity used to describe the stiffness of a material. As the Young’s modulus E increases, the hardness of the material also increases.
As can be seen from Figure 5a, the order of values for GH and E is: Cu31Sn > Cu > Cu29Sn3 > Cu30Sn2. Cu31Sn has the highest GH value (57.63 GPa) and the highest E value (151.23 GPa), while Cu30Sn2 has the lowest GH value (34.43 GPa) and the lowest E value (95.42 GPa), indicating that among these Cu–Sn alloys, Cu31Sn has the most significant directional bonding, the strongest shear deformation resistance, and the highest hardness. On the contrary, Cu30Sn2 has the weakest shear deformation resistance and the highest plasticity. In addition, in Cu–Sn alloys, the bulk modulus presents a “downward-upward-downward” trend with the increase of Sn content. Compared with pure Cu, an increase in Sn content will reduce its incompressibility.
The lattice distortion will occur when Sn is solidly dissolved into the Cu matrix. The elastic stress field caused by this deformation increases the crystal energy, which is defined as the strain energy of the dislocation [45],
W     G b 2
where G is the shear modulus and b is the Burgers vector. For fcc crystals, b 2 = 0.5 a 2 . The greater the dislocation strain energy, the poorer its plastic deformation ability, and the higher its tensile strength. The dislocation strain energy of Cu–Sn alloys is shown in Figure 4. With the increase of Sn content, the dislocation strain energy presents a trend of first increasing, then decreasing, and then increasing, indicating that its plastic deformation ability first decreases, then increases, and then decreases. This trend is the same as that of shear modulus G and Young’s modulus E, which can be explained by the dislocation motion theory.
Elastic modulus and Poisson’s ratio are important indicators that can reflect the mechanical properties of materials to a certain extent. However, to have a better understanding of their mechanical properties, in any service environment, it is also necessary to associate their bonding properties with toughness. Poisson’s ratio υ, GH/BH [46], and Cauchy enact pressure on C12-C44 [47] to evaluate the ductility trend of the material. According to Pettifor and Pugh criteria, ductile materials should meet: υ > 0.26, GH/BH < 0.57, C12-C44 > 0; conversely, brittle materials: υ < 0.26, GH/BH > 0.57, C12-C44 < 0. From Table 5 and Figure 4b, these Cu–Sn alloys meet the toughness criteria and have ductility. With the increase of Sn content, the ductility presents a “downward-upward-downward” trend, with Cu30Sn2 having the largest υ (0.39), C12-C44 maximum (68.48), GH/BH minimum (0.25), indicating that Cu30Sn2 has the best ductility.
It is well known that elastic anisotropy is one of the causes that induce microcracking in materials [1]. Therefore, it is necessary to study its elastic anisotropy to evaluate the mechanical durability of Cu–Sn alloys. Among others, Ranganathan and Ostoja-Starzewski [48] improved the concept of the universal anisotropy index ( A U ) to study the degree of anisotropy in different directions of bonding between atoms in different crystal planes, which can be expressed as
A U = 5 G V G R + B V B R 6
A U takes into account the contributions of both shear and bulk modulus, where the deviation of A U from 0 determines the degree of crystal anisotropy, and as can be seen from Table 5, Cu30Sn2 exhibits a higher degree of anisotropy compared to Cu, Cu31Sn, and Cu29Sn3. Furthermore, this degree of anisotropy can be visually represented, as it is in Figure 5.

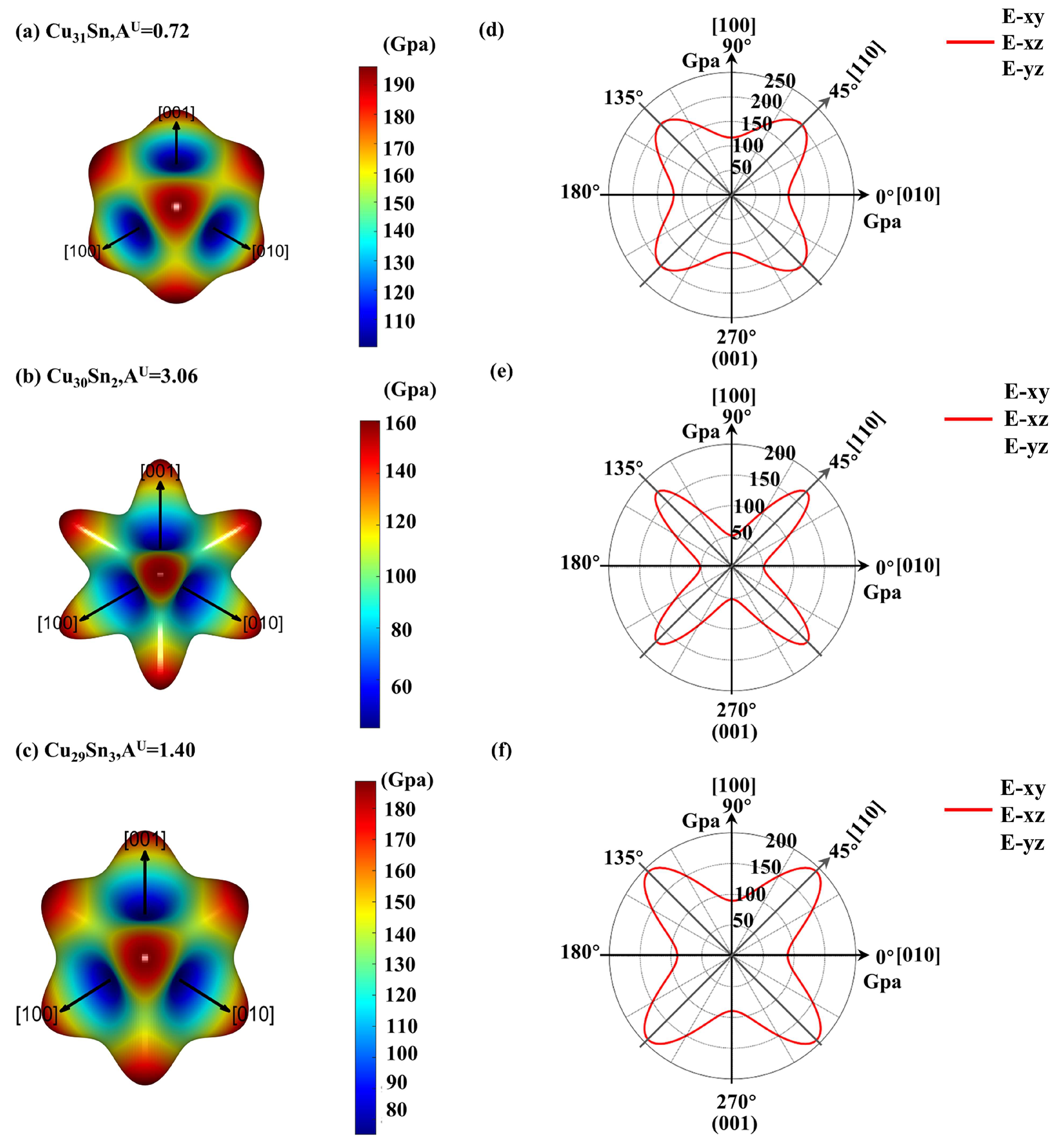

The Young’s modulus E is not only color-coded in all directions by Elastic POST [49], but also its specific magnitude is shown in a two-dimensional plot. The Cu–Sn alloys examined in this study belong to the cubic crystal system, and the directional dependence of its Young’s modulus can be obtained from the calculated flexibility constant [50], which can be expressed as
1 E = S 11 2 S 11 2 S 12 S 44 l 1 2 l 2 2 + l 2 2 l 3 2 + l 3 2 l 1 2
where E is the Young’s modulus, S i j is the elastic flexibility coefficient, and l 1 , l 2 , and l 3 are the directional cosines.
Observing the three-dimensional diagram of Young’s modulus anisotropy of Cu–Sn alloys in Figure 5a–c, the degree of elastic anisotropy of Cu30Sn2 can be described in more detail using the ratio of directional elastic modulus in Planar Projection, Figure 5d–f. The greater the deviation of this ratio from 1, the higher the elastic anisotropy of the surface [48]. For cubic crystal systems, the directional elastic modulus satisfies the following conditions: [100] = [010] = [001] [110]. E (100)/E (110) represents the directional Young’s modulus elastic anisotropy in the (110) plane. According to Figure 5d–f, the Young’s moduli of Cu31Sn, Cu30Sn2, and Cu29Sn3 in the <100> direction are 120 GPa, 50 GPa, and 85 GPa, respectively; the Young’s moduli in the <110> direction are 205 GPa, 175 GPa, and 190 GPa, respectively. The deviation between E (100)/ E (110) and 1 for Cu30Sn2 is the largest (0.714), followed by the deviation between E (100)/E (110) and 1 for Cu29Sn3 (0.553), and the deviation between E (100)/ E (110) and 1 for Cu31Sn (0.415) is the smallest. This indicates that the Young’s modulus anisotropy of Cu–Sn alloys satisfies the following requirements: Cu30Sn2 > Cu29Sn3 > Cu31Sn, which is the same as the order of A U .

3.5. Electronic Properties

The electronic structure can explain the source of mechanical properties at a microscopic level. To further grasp the phase stability and bonding characteristics of the Cu–Sn alloys, the relevant electronic properties of the solid solution were investigated based on structural optimization. Figure 6 shows the total density of states (TDOS) and the partial density of stats (PDOS) of the Cu–Sn alloys in the energy range of −12 eV to 6 eV. From Figure 6, it can be seen visually that the distribution of density of states and their trends are relatively similar for the Cu–Sn alloys. First, the TDOS below the Fermi energy level (0 eV) is contributed mainly by the Cu-3d states, with partial contributions from the Sn-5s and Sn-5p states, while the TDOS above the Fermi energy level mainly originates from the Sn-5s and Sn-5p states, while partly from the Cu-3p states. It is well known that the DOS values (N(EF))) at the Fermi energy level are related to the phase stability, where the smaller the N(EF), the more stable the corresponding phase is [51]. The N(EF) values of Cu31Sn, Cu30Sn2, and Cu29Sn3 are 7.0843, 9.1978, and 8.6509 electrons/(eV∙f.u.), respectively. The order of N(EF) values is Cu31Sn < Cu29Sn3 < Cu30Sn2. As discussed earlier, the enthalpy of mixing indicates that Cu31Sn is the most stable. Second, all Cu–Sn alloys have non-zero TDOS values at the Fermi energy level, which indicates the metallic character of these Cu–Sn alloys. Thirdly, the peak values of the Cu-3d state undergo splitting at −4 eV to −2 eV. As the Sn content increases, the three peaks gradually change from uniform to non-uniform in Cu31Sn, Cu30Sn2, and Cu29Sn3, with a decrease at −4 eV and an increase at −2 eV. This is mainly attributed to the characteristics of the crystal structure and the symmetry of coordination, resulting in the crossing or overlapping of energy levels, which in turn affects the state and degree of peaks in DOS.

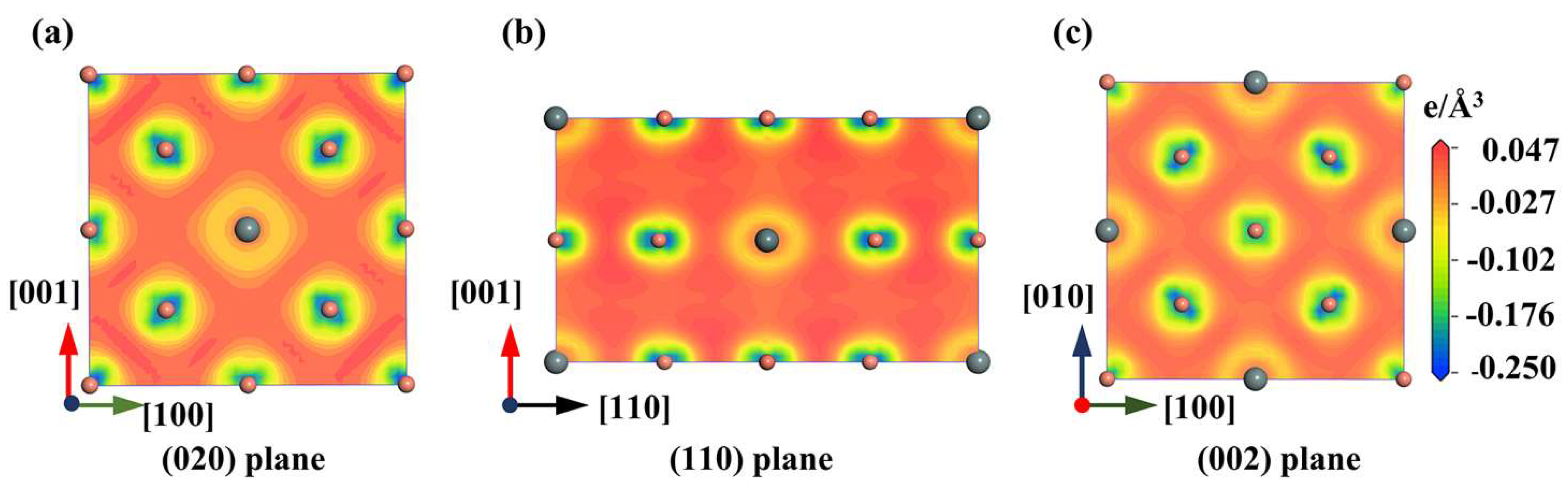

The differential charge density can directly characterize the nature of chemical bonding between different atoms and the electron gain and loss. Figure 7 shows the differential charge density diagram for Cu–Sn alloys in the range of −0.250 to 0.047 e/Å3, where the red region indicates the accumulation of electrons and the blue region indicates the depletion of electrons. As shown in Figure 7, in the Cu–Sn alloys, a large number of electrons gather between the Cu and Sn atoms, and the Cu atoms have a significant loss of charge in the outer layers, which can be clearly observed as a “sea of electrons” phenomenon, thus indicating the existence of metallic bonds [52]. As shown in Figure 7, the distribution of electron clouds around Cu atoms is in the shape of petal, with directionality. The petal distributions are closely related to the shapes of d orbitals [53]. Moreover, the electron cloud is in the shape of petal, indicating that polarization is relatively severe, resulting in uneven distribution of electrons. It is speculated that there may be other bonds in the Cu matrix besides metal bonds. In addition, some electrons accumulate between Cu and adjacent Cu atoms, which indicates the presence of metallic bonds and Cu-Cu covalent bonds in Cu–Sn alloys. Among them, compared with Cu and adjacent Cu atoms, Cu and adjacent Sn atoms direction, the blue area around Cu is larger and dense, indicating a serious electron loss and the formation of stronger Cu–Sn covalent bonds. By the non-uniformity of the charge causes anisotropy in the relevant properties of the material (e.g., elastic properties). Observing Figure 7, it is found that the blue area around Cu in Cu30Sn2 is large and dense compared to Cu31Sn and Cu29Sn3, and the non-uniformity of the charge is more significant, thus its elastic anisotropy is the highest, reflecting the highest Young’s modulus elastic anisotropy of Cu30Sn2 discussed earlier. With the addition of the alloying element Sn, the distribution of electron clouds around the atoms changes subsequently, and the electron cloud of the Sn element has a red sphere shape, indicating the accumulation of electrons in the alloying element.
On the other hand, the atomic Mulliken charge (AMC) can adequately describe the charge transfer between Cu and Sn atoms. If the atom has a negative AMC, it indicates that this atom gains charge; otherwise, this atom loses charge. In Cu29Sn3 and Cu31Sn, most of the Cu atoms gain charge from Sn atoms or other Cu atoms, and some lose charge. In Cu30Sn2, most of the Cu atoms gain charge from Sn atoms or other Cu atoms, and a few have no gain or loss of electrons. Bond population (BP) and the bond length L are also important parameters to assess the bonding properties. In general, the shorter the bond length L and the larger bond population (BP), the stronger the bond, and a bond with a BP value of zero is a perfect ionic bond; otherwise, it is a covalent bond. A larger absolute BP value indicates a stronger covalent bond. Positive and negative BP values indicate bonding interactions and antibonding interactions in the bond, respectively [54,55]. As shown in Table 6, the BP values of Cu–Sn bonds and Cu-Cu bonds in these Cu–Sn alloys are much larger than zero, thus indicating the presence of Cu–Sn covalent bonds and Cu-Cu covalent bonds. Furthermore, it can be found that Sn-Sn bonds do not exist in these Cu–Sn alloys. Therefore, Sn atoms are prone to displacement and will first form vacancies at Sn sites [47]. It was shown that bond population (BP) is also an important indicator of the mechanical properties of the material. In general, the phase stability, shear modulus and hardness of Cu–Sn alloys are positively correlated with the strength of the covalent bond, and this relationship can be obtained by bond population (BP), and the stronger the covalent bond, the larger bond population (BP). The strong phase stability, shear modulus and hardness of Cu31Sn obtained in this study can be attributed to the formation of a stronger Cu-Cu covalent bond.

3.6. Debye Temperature

The Debye temperature ( θ D ) is an important parameter of crystalline materials. On the one hand, it can reflect the thermal properties of the material, and on the other hand, it can be used as a link between the thermal and mechanical properties of the material. At low temperatures, the acoustic vibration is the only factor that triggers the vibration excitation, so at low temperatures, the Debye temperature calculated by the elastic constant is equivalent to the Debye temperature determined by the specific heat measurement. Thus, it can be calculated by the following equation [56,57],
θ D = h k 3 n 4 π N A ρ M 1 3 ν m
where h , k , and N A are Planck’s constant, Boltzmann’s constant, and Avogadro’s constant, respectively, n is the total number of atoms per unit cell, ρ is the density, M is the molecular weight, and ν m is the average speed of sound, which can be defined as [57,58],
ν m = 1 3 2 ν t 3 + 1 ν l 3 1 3
where ν l and ν t are the longitudinal and transverse sound velocities, respectively, and can be obtained from the shear modulus G , the bulk modulus B , and the density ρ , which are related as follows,
ν l = B + 4 3 G ρ 1 2
ν t = G ρ 1 2

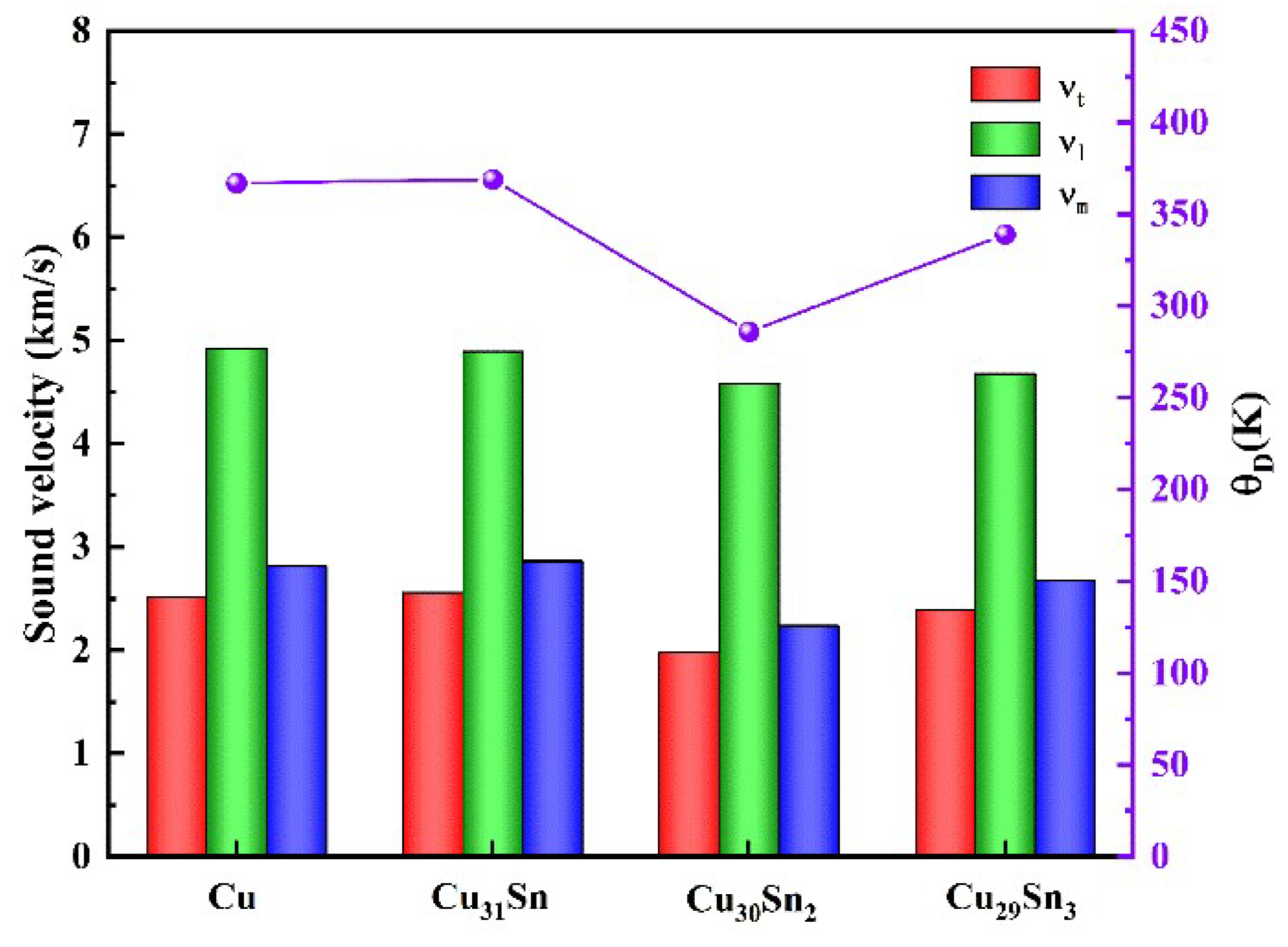

The calculated Debye temperatures, sound velocities and densities of pure Cu, and Cu–Sn alloys are shown in Table 7, which shows that the calculated sound velocities and Debye temperatures of Cu are in good agreement with the experimental values and previous calculations by scholars. In general, the higher the Debye temperature, the higher the melting point of the corresponding crystal and the stronger the covalent bond, the more stable the structure. As shown in Table 7 and Figure 8, among the Cu–Sn alloys, the Debye temperature of Cu31Sn is the highest, the corresponding covalent bond strength is the strongest, and the stability is the best, which is exactly in line with the results discussed in Table 2 and Figure 4a.
In addition, the lattice thermal conductivity κph is also one of the most fundamental physical properties of the material, which characterizes the thermal conductivity of the material and is of great significance for exploring the application of the material at high temperatures. In general, we consider the minimum value of the lattice thermal conductivity k m i n [59], which is related by the equation,
k m i n = k B 2.48 n 2 3 2 ν t + ν l
where k B is the Boltzmann constant, n is the number of atoms per unit volume, and v l and v t are the longitudinal and transverse velocities of sound, respectively.
Melting point is also an important parameter of the material and is currently a hot issue of research, playing a crucial role in predicting new intermetallic compounds for high-temperature applications. It can be obtained by the following empirical equation [60],
T m = 354 + 4.5 2 C 11 + C 33 3
In addition to the speed of sound ( ν l , ν t , ν m ) and Debye temperature θ D , the density ρ , the minimum value of lattice thermal conductivity k m i n , and the melting point T m of the Cu–Sn alloys are included in Table 7. It can be found that the minimum value of lattice thermal conductivity and melting point of Cu–Sn alloys follow the following pattern: Cu31Sn > Cu29Sn3 > Cu30Sn2. The above calculation results indicate that Cu–Sn alloys are good thermally conductive materials, and it is tentatively predicted that the thermal conductivity of Cu–Sn alloy is relatively good when the Sn content is low. However, there are few reports on the experimental Debye temperature and other thermal properties of Cu–Sn alloys. Therefore, it is hoped that the results of the present calculations can provide a reference value for subsequent studies of Cu–Sn alloys.
Table 7. The calculated and experimental results of density ( ρ ), transverse, longitudinal, average sound velocity ( ν t , ν l , ν m in m/s), Debye temperatures ( θ D , K), the minimum thermal conductivity ( k m i n in Wm−1K−1) and melting point (Tm in K) of Cu–Sn alloys.
Table 7. The calculated and experimental results of density ( ρ ), transverse, longitudinal, average sound velocity ( ν t , ν l , ν m in m/s), Debye temperatures ( θ D , K), the minimum thermal conductivity ( k m i n in Wm−1K−1) and melting point (Tm in K) of Cu–Sn alloys.
StructureSource ρ ν t ν l ν m θ D κminTmRefs.
CuPresent8.8282512492328153671.061184
Exp.8.937 1353[61]
Exp. 343 [62]
Cal.9.3532639520929583911.161330[63]
Cal.8.930227747232560335 [47]
Cu31SnPresent8.8152557489228613691.191177
Cu30Sn2Present8.7871980458722372860.881066
Cu29Sn3Present8.7542390467726783390.961077

4. Conclusions

The lattice constants, phase stability, solution strengthening, elastic properties, electronic properties, and Debye temperature of Cu–Sn alloys with different Sn contents (Cu31Sn, Cu30Sn2, Cu29Sn3) were studied by first principles. The relevant conclusions are as follows.
The calculated lattice constants are proportional to the solute concentration, consistent with the Vegard’s law, and have a linear relationship across the entire Cu–Sn solid solution region; the Sn atoms of 3.125 at%, 6.25 at%, and 9.375 at% can be solidly dissolved in the Cu matrix. The negative mixing enthalpy of Cu31Sn (3.125 at%) is the largest, indicating that its chemical bond is the strongest and its structure is the most stable. In the aspect of solution strengthening, the mismatch strain parameter is introduced to quantify the effect of solution strengthening. The calculated values can be used to predict the solution strengthening effect of Cu-based solid solutions, and are of great significance for developing copper alloys with ultra-high yield strength.
In Cu–Sn alloys, Cu30Sn2 has the smallest shear modulus and Young’s modulus. Its variation trend is the same as that of dislocation strain energy (Cu30Sn2 has a minimum dislocation strain energy of 0.236 Jm−1), indicating that when the Sn content is 6.25 at%, the plasticity of Cu–Sn alloys is the largest. In addition, Cu30Sn2 has the highest Young’s modulus and elastic anisotropy.
The electronic structure and bonding properties of the Cu–Sn alloys have been calculated, and their relationship with the stability and mechanical properties of the alloys is analyzed and discussed. Three types of bonding existed in Cu–Sn alloys: Cu-Cu covalent bonds, Cu-Cu metallic bonds, and Cu–Sn covalent bonds, of which Cu31Sn had the best stability and the highest shear modulus, which depended to a certain extent on the fact that it had stronger Cu-Cu covalent bonds.
The Debye temperature of the Cu–Sn alloys, the minimum lattice thermal conductivity, and the melting point all decrease sequentially along the order of Cu31Sn, Cu29Sn3, and Cu30Sn2. This indicates that Cu–Sn alloys are good thermal conductivity materials. Additionally, it is tentatively predicted that the thermal conductivity of Cu–Sn alloy is relatively good when Sn content is low.

Author Contributions

L.Z., Y.L., X.W. and R.Z. designed most of the experiments, L.Z. analyzed the results and wrote this manuscript, Y.L. helped analyze the experiment data and gave some constructive suggestions about how to write this manuscript. L.Z., L.X., Q.W. and Z.L. performed most experiments. B.X. provided financial support. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Natural Science Foundation of China (No.52205373).

Data Availability Statement

Not applicable.

Acknowledgments

The authors gratefully acknowledge the National Natural Science Foundation of China (No.52205373) for the financial support of this research work.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Appendix A.1. Modeling Method:Script

  • 1:
  • use strict;use Getopt::Long;
  • use MaterialsScript qw(:all);
  • my $disorderedStructure = $Documents{“Cu31Sn.xsd”};
  • my $results = Tools->Disorder->StatisticalDisorder->GenerateSuperCells
  • ($disorderedStructure,2,2,2);
  • my $table = $results->StudyTable;
  • print “Number of disorder configurations generated:”.$results->NumIrreducibleConfigurations. “\n”;
  •
  • 2:
  • use strict;
  • use Getopt::Long;
  • use MaterialsScript qw(:all);
  • my $disorderedStructure = $Documents{“Cu30Sn2.xsd”};
  • my $results = Tools->Disorder->StatisticalDisorder->GenerateSuperCells
  • ($disorderedStructure,2,2,2);
  • my $table = $results->StudyTable;
  • print “Number of disorder configurations generated:”.$results->NumIrreducibleConfigurations. “\n”;
  •
  • 3:
  • use strict;
  • use Getopt::Long;
  • use MaterialsScript qw(:all);
  • my $disorderedStructure = $Documents{“Cu29Sn3.xsd”};
  • my $results = Tools->Disorder->StatisticalDisorder->GenerateSuperCells
  • ($disorderedStructure,2,2,2);
  • my $table = $results->StudyTable;
  • print “Number of disorder configurations generated:”.$results->NumIrreducibleConfigurations. “\n”;
  •
  • Note:
  • This script references the content of the following web site: https://zhuanlan.zhihu.com/p/50322042.
Table A1. Structures.
Table A1. Structures.
StructuresWeightingConfigurationE (eV/atom)
Cu31Sn132baaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa−45,867.723
Cu30Sn21192baaaaaaaaaaabaaaaaaaaaaaaaaaaaaa−44,485.574
2192baaaaaaabaaaaaaaaaaaaaaaaaaaaaaa−44,484.631
316baaaaaabaaaaaaaaaaaaaaaaaaaaaaaa−44,485.663
448baabaaaaaaaaaaaaaaaaaaaaaaaaaaaa−44,485.603
548bbaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa−44,485.427
Cu29Sn31256baaaaaaaaaaabaaaaaabaaaaaaaaaaaa−43,103.560
2768baaaaaaabaaaaaaaaaabaaaaaaaaaaaa−43,102.542
3768baaaaaaabaaaaaaaabaaaaaaaaaaaaaa−43,101.536
4256baaaaaaabaaaaaaabaaaaaaaaaaaaaaa−43,100.554
5384baaaaaabbaaaaaaaaaaaaaaaaaaaaaaa−43,102.624
6768baabaaaaaaaaaaaabaaaaaaaaaaaaaaa−43,102.558
7192baabaaaaaaaabaaaaaaaaaaaaaaaaaaa−43,103.594
8192baabaaaabaaaaaaaaaaaaaaaaaaaaaaa−43,101.576
932baababaaaaaaaaaaaaaaaaaaaaaaaaaa−43,103.623
10384bbaaaaaaaaaaaaaaaaaaaaaabaaaaaaa−43,102.360
11384bbaaaaaaaaaabaaaaaaaaaaaaaaaaaaa−43,103.366
12384bbaaaaaabaaaaaaaaaaaaaaaaaaaaaaa−43,101.419
1396bbaaaabaaaaaaaaaaaaaaaaaaaaaaaaa−43,103.483
1496bbbaaaaaaaaaaaaaaaaaaaaaaaaaaaaa−43,103.230

Appendix A.2

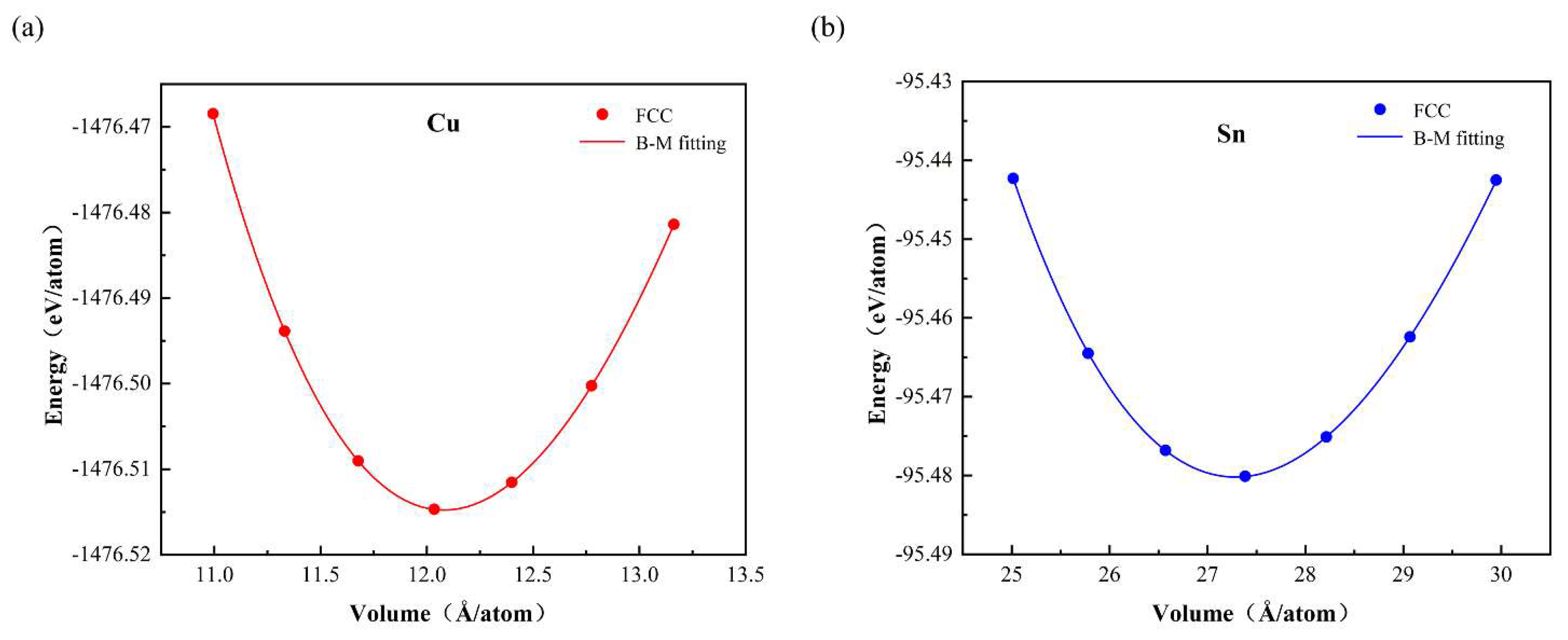

Figure A1. E-V fitting curves of pure elements (a) Cu, (b) Sn.
Figure A1. E-V fitting curves of pure elements (a) Cu, (b) Sn.
Crystals 13 01532 g0a1

Appendix A.3

Table A2. Equilibrium volume V03/atom), bulk modulus B0 (GPa), first-order derivative of bulk modulus with respect to pressure B0′ and static energy E0 (eV/atom) of Cu and Sn.
Table A2. Equilibrium volume V03/atom), bulk modulus B0 (GPa), first-order derivative of bulk modulus with respect to pressure B0′ and static energy E0 (eV/atom) of Cu and Sn.
ElementPure
V03/atom)B0 (GPa)B0E0 (eV/atom)
Cu12.04128.164.33−1476.515
Sn27.2954.474.40−95.480

Appendix A.4

Table A3. Volume V3/atom) and total energy E (eV/atom) of the Cu–Sn alloys.
Table A3. Volume V3/atom) and total energy E (eV/atom) of the Cu–Sn alloys.
StructureV3/atom)E (eV/atom)
Cu31Sn393.47−45,868.47
Cu30Sn2405.02−44,487.20
Cu29Sn3417.17−43,105.81

References

  1. Yang, L.; Kang, H. Measurements of mechanical properties of α-phase in Cu–Sn alloys by using instrumented nanoindentation. J. Mater. Res. 2012, 27, 192–196. [Google Scholar]
  2. Sun, J.; Ming, T.Y. Electrochemical behaviors and electrodeposition of Single-Phase Cu-Sn Alloy coating in [BMIM]Cl. Electrochim. Acta 2018, 297, 87–93. [Google Scholar]
  3. Liu, Y.; Wang, L. Electro-deposition preparation of self-standing Cu-Sn alloy anode electrode for lithium ion battery. J. Alloys Compd. 2019, 775, 818–825. [Google Scholar] [CrossRef]
  4. Singh, J.B.; Cai, W. Dry sliding of Cu–15 wt%Ni–8 wt%Sn bronze: Wear behaviour and microstructures. Wear 2007, 263, 830–841. [Google Scholar] [CrossRef]
  5. Zhu, S.Q.; Ringer, S.P. On the role of twinning and stacking faults on the crystal plasticity and grain refinement in magnesium alloys. Acta Mater. 2017, 144, 365–375. [Google Scholar] [CrossRef]
  6. Wen, Y.F.; Sun, J. Elastic stability of face-centered cubic Fe-Cu random solid solution alloys based on special quasirandom structure model. Chin. J. Nonferrous Met. 2012, 22, 2522–2528. [Google Scholar]
  7. Wei, Z.; Liu, L. Structural, electronic and thermo-elastic properties of Cu6Sn5 and Cu5Zn8 intermetallic compounds: First-principles investigation. Intermetallics 2010, 18, 922–928. [Google Scholar]
  8. An, R.; Wang, C. Determination of the Elastic Properties of Cu3Sn Through First-Principles Calculations. J. Electron. Mater. 2008, 37, 477–482. [Google Scholar]
  9. Davis, J.R. ASM Specialty Handbook: Copper and Copper Alloys; ASM International: Almere, The Netherlands, 2001. [Google Scholar]
  10. Scudino, S.; Unterdoerfer, C. Additive manufacturing of Cu-10Sn bronze. Mater. Lett. 2015, 156, 202–204. [Google Scholar] [CrossRef]
  11. Ping, H.; Xiao, F.R. Influence of hot pressing temperature on the microstructure and mechanical properties of 75% Cu–25% Sn alloy. Mater. Des. 2014, 53, 38–42. [Google Scholar]
  12. Payne, M.C.; Teter, M.P. Iterative minimization techniques for ab initio total-energy calculations: Molecular dynamics and conjugate gradients. Rev. Mod. Phys. 1992, 64, 1045. [Google Scholar] [CrossRef]
  13. Ming, X.; Wang, X.L. First-principles study of pressure-induced magnetic transition in siderite FeCO3. J. Alloys Compd. 2011, 510, L1–L4. [Google Scholar] [CrossRef]
  14. Varadachari, C.; Ghosh, A. Theoretical Derivations of a Direct Band Gap Semiconductor of SiC Doped with Ge. J. Electron. Mater. 2014, 44, 167–176. [Google Scholar]
  15. Ullrich, C.A.; Kohn, W. Degeneracy in Density Functional Theory: Topology in the v and n Spaces. Phys. Rev. Lett. 2002, 89, 156401. [Google Scholar] [CrossRef] [PubMed]
  16. Perdew, J.P.; Burke, K. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865. [Google Scholar] [CrossRef] [PubMed]
  17. Head, J.D.; Zerner, M.C. A Broyden—Fletcher—Goldfarb—Shanno optimization procedure for molecular geometries. Chem. Phys. Lett. 1985, 122, 264–270. [Google Scholar] [CrossRef]
  18. Liu, Y.; Liu, T. Research progress on intermetallic compounds and solid solutions of Mg alloys based on first-principlescalculation. Chongqing Daxue Xuebao/J. Chongqing Univ. 2018, 41, 30–44. [Google Scholar]
  19. Straumanis, M.E.; Yu, L.S. Lattice parameters, densities, expansion coefficients and perfection of structure of Cu and of Cu–In α phase. Acta Crystallogr. 2014, 25, 676–682. [Google Scholar] [CrossRef]
  20. Uesugi, T.; Higashi, K. First-principles studies on lattice constants and local lattice distortions in solid solution aluminum alloys. Comput. Mater. Sci. 2013, 67, 1–10. [Google Scholar] [CrossRef]
  21. Sidot, E.; Kahn-Harari, A. The lattice parameter of α-bronzes as a function of solute content: Application to archaeological materials. Mater. Sci. Eng. A 2005, 393, 147–156. [Google Scholar] [CrossRef]
  22. Liu, T.; Chong, X.Y. Changes of alloying elements on elasticity and solid solution strengthening of α-Ti alloys: A comprehensive high-throughput first-principles calculations. Rare Met. 2022, 41, 2719–2731. [Google Scholar] [CrossRef]
  23. Mxw, A.; Hong, Z.B. Solid-solution strengthening effects in binary Ni-based alloys evaluated by high-throughput calculations. Mater. Des. 2020, 198, 109359. [Google Scholar]
  24. Petrman, V.; Houska, J. Trends in formation energies and elastic moduli of ternary and quaternary transition metal nitrides. J. Mater. Sci. 2013, 48, 7642–7651. [Google Scholar] [CrossRef]
  25. Cottrell, A. Effect of solute atoms on the behavior of dislocations. In Report of a Conference on Strength of Solids; The Physical Society London: London, UK, 1948; pp. 30–36. [Google Scholar]
  26. Fleischer, R.L. Substitutional solution hardening. Acta Metall. 1963, 11, 203–209. [Google Scholar] [CrossRef]
  27. Suzuki, H. Segregation of Solute Atoms to Stacking Faults. J. Phys. Soc. Jpn. 1962, 17, 322–325. [Google Scholar] [CrossRef]
  28. Cottrell, A.H.; Hunter, S.C. CXI. Electrical interaction of a dislocation and a solute atom. Philos. Mag. 1953, 44, 1064–1067. [Google Scholar] [CrossRef]
  29. Friedel, J. Hardness of a Crystal Containing Uniformly Distributed Impurities or Precipitates. Dislocations 1964, 20, 368–384. [Google Scholar]
  30. Uesugi, T.; Takigawa, Y. Deformation Mechanism of Nanocrystalline Al-Fe Alloys by Analysis from Ab-Initio Calculations. Mater. Sci. Forum 2006, 503–504, 209–214. [Google Scholar] [CrossRef]
  31. Sms, A.; Kyk, A. Effects of Sn content and hot deformation on microstructure and mechanical properties of binary high Sn content Cu–Sn alloys. Mater. Sci. Eng. A 2020, 796, 140054. [Google Scholar]
  32. Shi, J.G.; Liu, P. Selective Laser Melting Experiment of Cu10Sn Alloy. Ind. Technol. Innov. 2018, 5, 7–11. [Google Scholar]
  33. Mao, Z.; Zhang, D.Z. Processing optimisation, mechanical properties and microstructural evolution during selective laser melting of Cu-15Sn high-tin bronze. Mater. Sci. Eng. A 2018, 721, 125–134. [Google Scholar] [CrossRef]
  34. Page, Y.L.; Saxe, P. Symmetry-General Least-Squares Extraction of Elastic Data for Strained Materials From ab Initio Calculations of Stress. Phys. Rev. B 2002, 65, 104104. [Google Scholar] [CrossRef]
  35. Jy, A.; Po, A. First-Principles Study of the Effect of Aluminum Content on the Elastic Properties of Cu-Al Alloys. Mater. Today Commun. 2022, 31, 103399. [Google Scholar]
  36. Browaeys, J.T.; Chevrot, S. Decomposition of the elastic tensor and geophysical applications. Geophys. J. R. Astron. Soc. 2010, 159, 667–678. [Google Scholar] [CrossRef]
  37. Moakher, M.; Norris, A.N. The Closest Elastic Tensor of Arbitrary Symmetry to an Elasticity Tensor of Lower Symmetry. J. Elast. 2006, 85, 215–263. [Google Scholar] [CrossRef]
  38. Waller, I. Dynamical Theory of Crystal Lattices by M. Born and K. Huang. Acta Crystallogr. 1956, 9, 837–838. [Google Scholar] [CrossRef]
  39. Chung, D.H.; Buessem, W.R. The Voigt-Reuss-Hill Approximation and Elastic Moduli of Polycrystalline MgO, CaF2, β-ZnS, ZnSe, and CdTe. J. Appl. Phys. 1967, 38, 2535–2540. [Google Scholar] [CrossRef]
  40. Overton, W.C.; Gaffney, J. Temperature Variation of the Elastic Constants of Cubic Elements. I. Copper. Phys. Rev. 1955, 98, 969–977. [Google Scholar] [CrossRef]
  41. Chang, Y.A.; Himmel, L. Temperature Dependence of the Elastic Constants of Cu, Ag, and Au above Room Temperature. J. Appl. Phys. 1966, 37, 3567–3572. [Google Scholar] [CrossRef]
  42. Schmunk, R.E.; Smith, C.S. Elastic constants of copper-nickel alloys. Acta Metall. 1960, 8, 396–401. [Google Scholar] [CrossRef]
  43. Cheng, L.; Shuai, Z. Insights into structural and thermodynamic properties of the intermetallic compound in ternary Mg–Zn–Cu alloy under high pressure and high temperature. J. Alloys Compd. 2014, 597, 119–123. [Google Scholar] [CrossRef]
  44. Zhou, W.; Liu, L. Structural, Elastic, and Electronic Properties of Al-Cu Intermetallics from First-Principles Calculations. J. Electron. Mater. 2009, 38, 356–364. [Google Scholar] [CrossRef]
  45. Li, F.; Chen, Y. First-Principles Calculations on the Enhancing Effect of Zr on the Mechanical and Thermodynamic Properties of Ir–Rh Alloys. Trans. Indian Inst. Met. 2023, 76, 1809–1817. [Google Scholar] [CrossRef]
  46. Pugh, S.F. XCII. Relations between the elastic moduli and the plastic properties of polycrystalline pure metals. Philos. Mag. 2009, 45, 823–843. [Google Scholar] [CrossRef]
  47. Qu, D.; Li, C. Structural, electronic, and elastic properties of orthorhombic, hexagonal, and cubic Cu3Sn intermetallic compounds in Sn–Cu lead-free solder. J. Phys. Chem. Solids 2019, 138, 109253. [Google Scholar] [CrossRef]
  48. Ranganathan, S.I.; Ostoja-Starzewski, M. Universal Elastic Anisotropy Index. Phys. Rev. Lett. 2008, 101, 055504. [Google Scholar] [CrossRef] [PubMed]
  49. Liao, M.; Yong, L. Alloying effect on phase stability, elastic and thermodynamic properties of Nb-Ti-V-Zr high entropy alloy. Intermetallics 2018, 101, 152–164. [Google Scholar] [CrossRef]
  50. Shuvalov, L.A. Electrical Properties of Crystals; Springer: Berlin/Heidelberg, Germany, 1988. [Google Scholar]
  51. Ma, L.; Duan, Y. Phase stability, anisotropic elastic properties and electronic structures of C15-type Laves phases ZrM2 (M = Cr, Mo and W) from first-principles calculations. Philos. Mag. 2017, 97, 2406–2424. [Google Scholar] [CrossRef]
  52. Zhu, Y.D.; Yan, M.F. First-principles investigation of structural, mechanical and electronic properties for Cu–Ti intermetallics. Comput. Mater. Sci. 2016, 123, 70–78. [Google Scholar] [CrossRef]
  53. Wei, Y.A.; Yz, A. Investigation on elastic properties and electronic structure of dilute Ir-based alloys by first-principles calculations. J. Alloys Compd. 2021, 850, 156548. [Google Scholar]
  54. Segall, M.; Shah, R. Population analysis of plane-wave electronic structure calculations of bulk materials. Phys. Rev. B Condens. Matter 1996, 54, 16317. [Google Scholar] [CrossRef] [PubMed]
  55. Liu, D.; Duan, Y. Structural properties, electronic structures and optical properties of WB2 with different structures: A theoretical investigation. Ceram. Int. 2018, 44, 11438–11447. [Google Scholar] [CrossRef]
  56. Anderson, O. A simplified method for calculating the debye temperature from elastic constants. J. Phys. Chem. Solids 1963, 24, 909–917. [Google Scholar] [CrossRef]
  57. Reffas, M.; Bouhemadou, A. Ab initio study of structural, elastic, electronic and optical properties of spinel SnMg2O4. Phys. B Condens. Matter 2010, 405, 4079–4085. [Google Scholar] [CrossRef]
  58. Schreiber, E.; Anderson, O.L.; Soga, N.; Bell, J.F. Elastic Constants and Their Measurement. J. Appl. Mech. 1975, 42, 747–748. [Google Scholar] [CrossRef]
  59. Cahill, D.G.; Pohl, R.O. Heat flow and lattice vibrations in glasses. Solid State Commun. 1989, 70, 927–930. [Google Scholar] [CrossRef]
  60. Fine, M.E. Elastic constants versus melting temperature in metals. Scr. Metall. 1984, 18, 951–956. [Google Scholar] [CrossRef]
  61. Murray, J.L. The CuTi (Copper-Titanium) system. J. Phase Equilibria 1983, 4, 81–95. [Google Scholar]
  62. Lebedev-Stepanov, P.V. Plasma frequency approach to estimate the Debye temperature of the ionic crystals and metal alloys. J. Phys. Chem. Solids 2014, 75, 903–910. [Google Scholar] [CrossRef]
  63. Li, Y.; Ma, X.J. First-principles calculations of the structural, elastic and thermodynamic properties of tetragonal copper-titanium intermetallic compounds. J. Alloys Compd. 2016, 687, 984–989. [Google Scholar] [CrossRef]
Figure 1. Crystal structure of Cu–Sn alloys (a) Cu31Sn, (b) Cu30Sn2, and (c) Cu29Sn3.
Figure 1. Crystal structure of Cu–Sn alloys (a) Cu31Sn, (b) Cu30Sn2, and (c) Cu29Sn3.
Crystals 13 01532 g001
Figure 2. Relationship between the lattice parameter and the atomic Sn concentration of Cu–Sn alloys.
Figure 2. Relationship between the lattice parameter and the atomic Sn concentration of Cu–Sn alloys.
Crystals 13 01532 g002
Figure 3. The relationship between the Sn content and the yield stress values in Cu–Sn alloys. This includes calculation results and experimental results [31,32,33].
Figure 3. The relationship between the Sn content and the yield stress values in Cu–Sn alloys. This includes calculation results and experimental results [31,32,33].
Crystals 13 01532 g003
Figure 4. Variations in BH, GH, E, and W (a), υ , GH/BH, and C12-C44 (b) for Cu–Sn alloys.
Figure 4. Variations in BH, GH, E, and W (a), υ , GH/BH, and C12-C44 (b) for Cu–Sn alloys.
Crystals 13 01532 g004
Figure 5. Three-dimensional surfaces (ac) and planar projections (df) of the Young’s modulus E for Cu–Sn alloys.
Figure 5. Three-dimensional surfaces (ac) and planar projections (df) of the Young’s modulus E for Cu–Sn alloys.
Crystals 13 01532 g005
Figure 6. Total and partial electronic densities of states (TDOS and PDOS) near Fermi level of Cu–Sn alloys (a) Cu31Sn, (b) Cu30Sn2, and (c) Cu29Sn3. The red dotted line indicates the Fermi level, and 1, 2, and 3 indicate the peak splitting of the Cu-3d state.
Figure 6. Total and partial electronic densities of states (TDOS and PDOS) near Fermi level of Cu–Sn alloys (a) Cu31Sn, (b) Cu30Sn2, and (c) Cu29Sn3. The red dotted line indicates the Fermi level, and 1, 2, and 3 indicate the peak splitting of the Cu-3d state.
Crystals 13 01532 g006
Figure 7. Charge density differences for Cu–Sn solid solutions (a) Cu31Sn, (b) Cu30Sn2 and (c) Cu29Sn3.
Figure 7. Charge density differences for Cu–Sn solid solutions (a) Cu31Sn, (b) Cu30Sn2 and (c) Cu29Sn3.
Crystals 13 01532 g007
Figure 8. Variations in the sound velocity and Debye temperature for Cu–Sn alloys.
Figure 8. Variations in the sound velocity and Debye temperature for Cu–Sn alloys.
Crystals 13 01532 g008
Table 1. Cu–Sn alloys’ model components.
Table 1. Cu–Sn alloys’ model components.
Number of Sn AtomsStructureMass Ratio of Sn Contents (wt.%)Atomic Ratio of Sn Contents (at%)
0Cu00
1Cu31Sn5.8643.125
2Cu30Sn211.0756.250
3Cu29Sn316.1959.375
Table 2. Experimental and theoretical lattice parameters (a, b, c and α, β, γ), mixing enthalpy   H ( k J / m o l ) for Cu–Sn alloys.
Table 2. Experimental and theoretical lattice parameters (a, b, c and α, β, γ), mixing enthalpy   H ( k J / m o l ) for Cu–Sn alloys.
StructureSourcea (Å)b (Å)c (Å)α (deg)β (deg)γ (deg) H ( k J / m o l )
CuExp· at 25 °C3.615--90-- [20]
Present3.629--90--
Error0.387%-----
Cu31SnPresent3.664--90--−3.25
Cu30Sn2Present3.700--90--−2.69
Cu29Sn3Present3.736--90--−1.79
Table 6. Atomic Mulliken charge (AMC), bond population (BP) analysis and mean bond length (Å) for Cu–Sn alloys. The numbers in brackets for the atom represent the number of Cu or Sn ions, whereas the number in brackets for the bond represents the number of Cu–Cu and Cu–Sn bonds.
Table 6. Atomic Mulliken charge (AMC), bond population (BP) analysis and mean bond length (Å) for Cu–Sn alloys. The numbers in brackets for the atom represent the number of Cu or Sn ions, whereas the number in brackets for the bond represents the number of Cu–Cu and Cu–Sn bonds.
SpeciesAtomCharge NumberAMCBondBPLength (Å)
spdTotal
Cu31SnCu(1)0.510.779.7211.01−0.01Cu-Cu(12)0.272.50443
Cu(12)0.510.789.7211.01−0.01Cu-Cu(48)0.232.5588
Cu(3)0.510.819.7211.03−0.03Cu-Cu(12)0.22.57028
Cu(12)0.530.819.7311.06−0.06Cu-Cu(24)0.212.57028
Cu(3)0.510.749.7310.980.02Cu-Cu(24)0.192.59082
Sn(1)0.652.4203.080.92Cu-Cu(24)0.212.59218
Cu-Cu(12)0.192.61121
Cu-Cu(24)0.162.67706
Cu–Sn(12)0.172.67706
Cu30sn2Cu(24)0.530.829.7311.07−0.07Cu-Cu(8)0.262.54638
Cu(6)0.510.779.73110Cu-Cu(16)0.262.54639
Sn(2)0.712.4203.130.87Cu-Cu(44)0.262.54828
Cu-Cu(26)0.22.61677
Cu-Cu(22)0.22.61678
Cu–Sn(8)0.182.68531
Cu-Cu(45)0.162.68531
Cu-Cu(12)0.182.68532
Cu-Cu(4)0.162.68532
Cu–Sn(3)0.182.68533
Cu29sn3Cu(12)0.540.859.7411.13−0.13Cu-Cu(12)0.242.56039
Cu(10)0.520.829.7311.07−0.07Cu-Cu(24)0.262.56039
Cu(3)0.50.719.7410.960.04Cu-Cu(12)0.232.62491
Cu(1)0.50.669.7510.920.08Cu-Cu(59)0.212.64287
Sn(3)0.792.4603.250.75Cu-Cu(48)0.192.67471
Cu–Sn(12)0.142.72284
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, L.; Li, Y.; Zhou, R.; Wang, X.; Wang, Q.; Xie, L.; Li, Z.; Xu, B. First-Principles Study of the Effect of Sn Content on the Structural, Elastic, and Electronic Properties of Cu–Sn Alloys. Crystals 2023, 13, 1532. https://doi.org/10.3390/cryst13111532

AMA Style

Zhang L, Li Y, Zhou R, Wang X, Wang Q, Xie L, Li Z, Xu B. First-Principles Study of the Effect of Sn Content on the Structural, Elastic, and Electronic Properties of Cu–Sn Alloys. Crystals. 2023; 13(11):1532. https://doi.org/10.3390/cryst13111532

Chicago/Turabian Style

Zhang, Lingzhi, Yongkun Li, Rongfeng Zhou, Xiao Wang, Qiansi Wang, Lingzhi Xie, Zhaoqiang Li, and Bin Xu. 2023. "First-Principles Study of the Effect of Sn Content on the Structural, Elastic, and Electronic Properties of Cu–Sn Alloys" Crystals 13, no. 11: 1532. https://doi.org/10.3390/cryst13111532

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
