Numerical Investigations of the Kinetic Behavior of Adhering Droplets on the Inclined Windshield in Airflows

Abstract

A theoretical foundation for implementing surface self-cleaning can be provided by analyzing the motion of adhering droplets in airflow. When driving in rainy circumstances, self-cleaning windshield technology can efficiently guarantee driver safety. In this study, the CLSVOF method is employed to simulate a three-dimensional wind tunnel model, enabling an investigation into the dynamics of droplets adhering to a windshield under the influence of airflow. Subsequent analysis mainly focuses on the impacts of wind velocity and droplet size on the motion patterns and morphological characteristics of the droplets. The temporal evolution of the forces acting on the droplets is examined, along with a comparative analysis of the predominant forces driving droplet motion against other forms of resistance. The results demonstrate that the motion patterns of the droplets can be broadly categorized into three phases: accelerated decline, forces equilibrium, and accelerated climb. As wind speed increases, there is a noticeable reduction in the wetting length L_d, while the height of the droplets H and the dominant force influencing their motion shift from gravitational component F_gsinα to wind traction force F_wind. Moreover, an increase in droplet size accentuates the lag in changes to wetting length, droplet height, and the contact angle.

1. Introduction

The interaction between droplets and solid surfaces is a phenomenon extensively observed in the field of surface self-cleaning [1,2,3,4], aimed at reducing or eliminating the adhesion of external fluid contaminants. The removal of droplets through airflow is a crucial aspect of surface self-cleaning research. This method applies the additional force created by airflow to initiate the movement of adherent droplets on surfaces such as machinery and casings, thus achieving the objective of cleaning. In practical engineering applications, variations in airflow environments, droplet properties, and surface wettability can lead to different adhesive behaviors during the interaction process between droplets and solid surfaces [5,6]. An in-depth exploration and application of this technology not only facilitates efficient surface cleaning but also diminishes the dependency on chemical cleaners, consequently reducing environmental pollution and cleaning expenses.

In recent years, surface self-cleaning research has been increasingly harnessed to address rainwater contamination on front windshields. During rainfall, droplets adhere to the windshield surface under the combined influence of their own gravity and the airflow around the window, worsening the driver’s visual impairment. A blurred windshield view can distract the driver, leading to visual fatigue and significantly compromising driving safety. Consequently, reducing droplet adhesion on the windshield and promoting droplet movement are critical for alleviating water contamination on the windshield.

Initial approaches to the issue of windshield water contamination brought on by rain concentrated on the continuous optimization of vehicle components to reduce the problem of visual obstruction, including the structure of the wipers [7,8], control strategies [9,10], and the wetting characteristics of the windshield [11,12,13]. These techniques can somewhat lessen the amount of precipitation that accumulates on the windshield but cannot reduce the frequency of raindrop impact. Modified windshield coatings are also costly and have a poor response time. These solutions do not address the issue via the investigation of microscopic droplet movement phenomena and causes.

At present, theoretical research on the self-cleaning of droplets on front windshields from the fluid dynamics perspective is an emerging technological field that demands deeper investigations. Understanding the interaction mechanism between droplets and the windshield surface will lay a theoretical foundation for further optimizing the windshield and related components, achieving self-cleaning on the surface, and enhancing driving safety.

The movement of droplets on the windshield in air conditions can be fundamentally reduced to the motion of adherent droplets on the inclined surface under the airflow. A foundational requirement for exploring the theory of self-cleaning on windshields is the extensive investigation of droplet motion in airflow. However, existing studies primarily concentrate on the detachment of adherent droplets on flat surfaces and the investigation of critical air velocity laws, without examining the full motion process of droplets on inclined surfaces. Milne and Amirfazli [14] investigated the shedding behavior of droplets on surfaces with different wettability in shear flow. They concluded that the wetting parameters of droplets on surfaces have important influences on droplet shedding. Roisman et al. [15] proposed a critical air velocity model applicable to droplet height by measuring the critical air velocity for different droplet volumes on substrates with different wettability with the same thickness of the viscous boundary in the airflow. Barwari et al. [16] determined three states of adhering droplets in shear flow just before and after motion. They eventually established their global empirical law by redefining critical air velocity. Hooshanginejed and Lee [17] investigated the interaction of a pair of string droplets in an airflow by experimental and numerical simulations and found that the critical distance for independent shedding of upstream droplets is 2.4 times the baseline length. Razzaghi and Amirfazli [18] investigated critical air velocity versus droplet spacing for droplets moving in an air stream with different alignment patterns, which showed that surface wettability does not affect the overall trend of critical air velocity with droplet spacing. Rohde et al. [19] investigated the effect of vibration on the critical air velocity of droplets by superimposing vibration on a horizontal surface. The results show that the critical air velocity is significantly reduced by superimposed harmonic oscillation. The decrease is particularly noticeable at surface vibration in the range of the first and third eigenfrequency of the droplet. Yeganehdoust et al. [20] explored droplet shedding behavior under different droplet sizes, spacings and airflow velocities through experiments and numerical simulations. A dynamic contact angle model was used to simulate droplet shedding on various wettability surfaces. The changes in drag and lift forces before and after droplet coalescence were also analyzed in detail to better explain the dynamic behavior of droplets. Shi et al. [21] focused on the differences in the behavior of droplets of different volumes on hydrophilic and superhydrophobic surfaces under airflow. It was found that larger droplets on hydrophilic surfaces exhibited longer wetting lengths and stronger adhesion, and that the air velocity was the main reason affecting the sliding and rolling behavior of droplets on superhydrophobic surfaces.

Only a few studies have explored the motion of droplets adhered to inclined surfaces in airflow, primarily concentrating on the forces exerted on droplets. Hashimoto et al. [22] investigated the acceleration of droplets moving in uniform airflows on the windshield by building a wind tunnel. They found that droplets can be classified as sliding, stationary, and climbing at different airflow velocities. Nakata et al. [23] simulated the behavior of droplets on a hydrophobic windshield under driving conditions and proposed a force equation for droplets during the movement. Chen et al. [24] proposed a new method to simulate the water flow of droplets on a tilted glass pane at the moment of rainfall and proved the reliability of the simulation compared with the experimental results. Koblik [25] used a graphical processing method to simulate the behavior of droplets on a tilted windshield under different combinations of wind and gravity. Correlation between the wind force magnitude and droplet motion was obtained. Edward et al. [26] proposed a mathematical model for the detachment of droplets on inclined surfaces under high-speed airflow, employing direct formulas for surface tension, gravity, and aerodynamic forces. This model plays a crucial role in predicting the critical air velocity. Hu et al. [27] investigated the droplet shedding behavior on metal fiber surfaces with different surface wettability and tilting angles and established predictive correlations for critical droplet sizes on metal fibers with different wettability and different tilting angles, which agreed with the experimental results. Yurishchev et al. [28] considered factors like droplet shape and airspeed in their research into droplet motion on inclined surfaces under airflow. They developed a predictive model for the air resistance coefficient that adapts to changes in influencing factors, making it useful for calculating critical air velocity.

In conclusion, current studies on the detachment behavior of droplets adhering to flat and inclined surfaces in airflow, as well as the forces acting on droplets in an airflow environment, have made significant progress. However, these studies primarily focus on predicting the numerical values of critical air velocity. The forces acting on droplets and their shape changes when they start moving have not been explored. In this study, the coupled CLSVOF method, integrating Volume of Fluid (VOF) and Level-set method, is used for numerical simulation. A three-dimensional wind tunnel model has been developed, and a dynamic contact angle model is employed to accurately simulate the changes in droplets. By considering airflow velocity and droplet size as research variables, the study offers a comprehensive analysis of how these variables influence the motion patterns and shape transformation rules of droplets adhering to inclined windshields. Finally, forces acting on the droplet are calculated. The changes in droplet forces with time are discussed, and the relationship between the dominant force of droplet movement and other resistances is compared.

2. Materials and Methods

2.1. Numerical Calculation Model

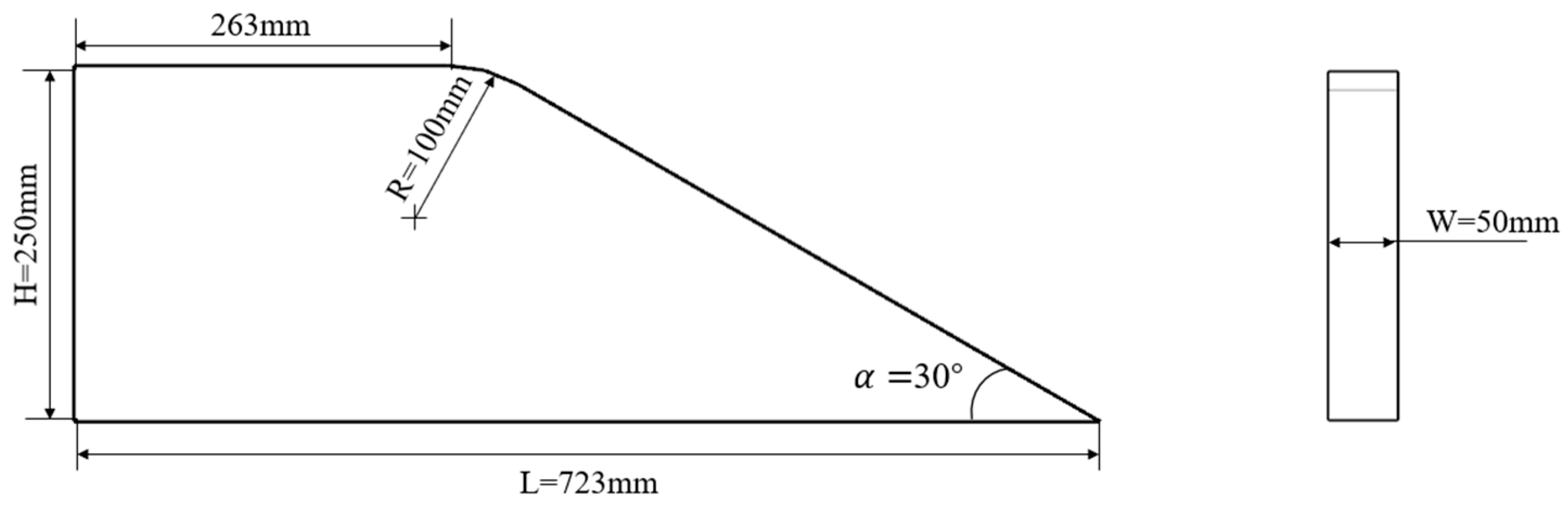

Airflow under natural conditions needs to be simulated, but the computational cost of full-scale wind tunnel numerical simulation is relatively high. Therefore, the scaled-down wind tunnel is usually used to reproduce the outflow field [29]. In order to study the motion of droplets on the windshield at a certain wind speed, the 3D geometric model used for the study is a scaled down model of the inclined surface with model dimensional parameters, as shown in Figure 1.

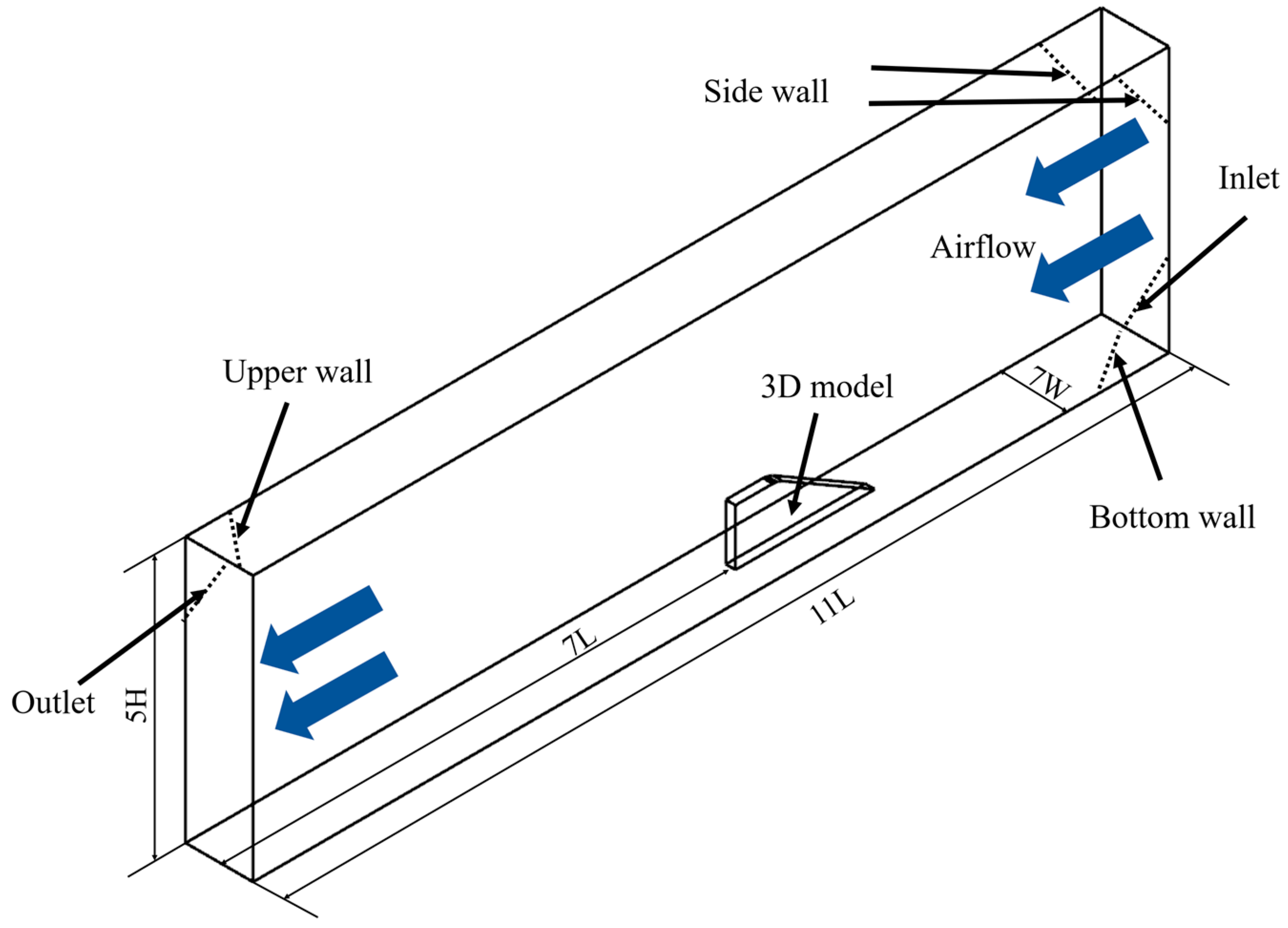

According to the wind tunnel design theory, the size of the computational domain used in the numerical simulation needs to be determined based on the size of the three-dimensional model to ensure the accuracy of the computational results, as well as the appropriateness of the computational cost at the mean time. The computational domain and the boundaries used in this study are shown in Figure 2, in which the length is 11 L, the width is 7 W, and the height is 5 H, and L, W, and H are the length, width, and height of the three-dimensional model, respectively. The 3D model is located on the symmetry plane of the computational domain, and the distance between the trailing edge of the model and the airflow outlet boundary is 7 L. In addition, the boundary conditions of the computational domain are shown in

Table 1. Boundary conditions of the computational domain.

Boundary	Boundary Condition Setting
Inlet of the computational domain	Velocity inlet
Outlet of the computational domain	Pressure outlet
Upper wall and the side wall	Symmetric boundary
3D model and the bottom wall	No slip

.

Water and air are made as the dispersed phase and continuous phase, respectively. The densities of water and air are 998.2 kg/m³ and 1.225 kg/m³, respectively, in the numerical simulation. The viscosities of water and air are 1.003 × 10⁻³ kg/m∙s and 1.79 × 10⁻⁵ kg/m∙s, respectively. The interfacial tension σ between the droplet and the air is 0.0728 N/m.

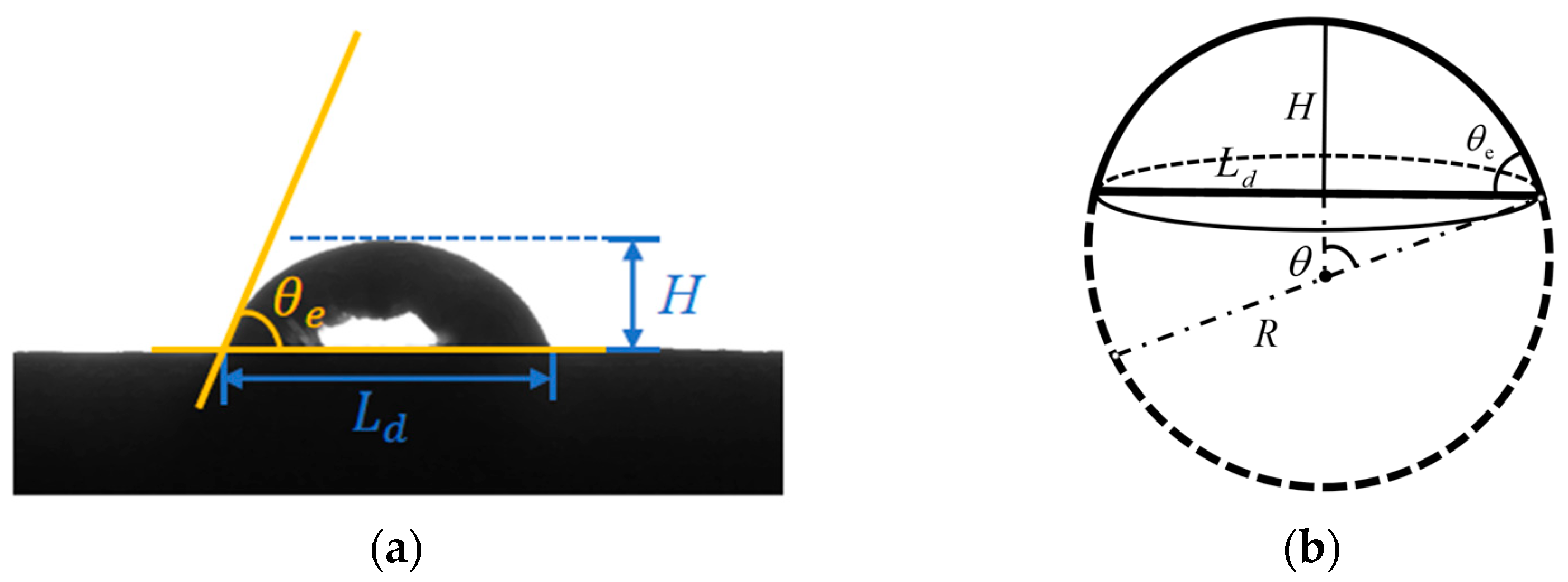

The droplet adhering to the hydrophilic surface of a windshield in a stationary state is shown in Figure 3a. In actual situations, the droplets appear cap-shaped on the surface. Considering the impact of droplet size on simulation results in numerical simulations, this study investigates droplets with volumes V’ of 14.14 μL, 22.45 μL, and 33.51 μL, respectively.

Using the spherical volume formula of $V’=\frac{4\pi }{3}{\left(\frac{D}{2}\right)}^3$, the spherical diameters D of the droplets are determined to be 3 mm, 3.5 mm, and 4 mm, respectively. Future measurements of droplet size will be uniformly annotated based on the spherical diameter D. To assess the wettability of droplets on the hydrophilic windshield surface, the static contact angle θ_e of the droplets was measured. On the substrate of the hydrophilic windshield used, the water droplets studied form a moderate static contact angle θ_e = 66.8°.

As shown in Figure 3b, to determine the initial state of droplet motion on the windshield, the initial shape of the droplet on the hydrophilic windshield is considered to be a spherical cap. Based on the droplet volume V’ and the static contact angle θ_e on the windshield, the relationship between the spherical radius R, the wetting length L_d, and the droplet height H in the numerical simulation was derived as [30]:

$$R={\left[\frac{V’}{\frac{\pi }{3}\left(2-3cos{\theta }_e+co{s}^3{\theta }_e\right)}\right]}^{\frac{1}{3}}$$

(1)

$$L_d=2Rsin{\theta }_e$$

(2)

$$H=R\left(1-cos{\theta }_e\right)$$

(3)

Understanding the impact of airflow on droplet motion is crucial to address the issue of morphological alterations of adhering droplets moving on the windshield in the presence of natural airflow. The droplet Weber number (We) is introduced to represent the ratio of inertial force to surface tension, which is defined as:

$$We=\frac{{\rho }_g{U}^{2}D}{\sigma }$$

(4)

where ${\rho }_g$ is the air density, U is the air velocity, D is the spherical diameter of the droplet in the numerical simulation, and σ is the interfacial tension between the droplet and the air.

The size of the Weber number also affects the extent of droplet fragmentation in high-speed gas streams. It needs to be limited to 10 to prevent droplet fragmentation [31]. Therefore, the wind speed U is set at 3–12 m/s based on numerical calculations.

2.2. Numerical Stimulation Methods

In numerical simulations, the Volume of Fluid (VOF) method is commonly utilized to define the interface between gas and liquid phases within a grid. In the VOF method, the F function is often used to represent the phase function, and the volume fraction β of the lattice liquid occupying the lattice space is calculated by solving the phase function. The phase function is used to characterize the distribution of the gas–liquid phases in the flow field. The definition of the F-function is shown in Equation (5):

$$F\left(\overrightarrow{r},t\right)=\left\{\begin{array}{ll}1,\hfill & in the liquid region\hfill \\ 0<F<1,\hfill & at the interface\hfill \\ 0,\hfill & in the gas region\hfill \end{array}\right.$$

(5)

where $\overrightarrow{r}$ is any point in the computational domain and t is time.

As water in numerical simulations is treated as an incompressible fluid, the primary governing equation for the VOF method is the continuity equation for incompressible fluids, ensuring effective conservation of physical quantities. The mass conservation equation for the F function can be expressed as:

$$\frac{\partial F}{\partial t}+\left(\overrightarrow{u}\cdot \nabla \right)F=0$$

(6)

where $\overrightarrow{u}$ is the velocity of the grid.

Although the VOF method can represent the structure of a complex two-phase interface and its variations with relatively simple calculations, the discontinuity of the function at the phase interface can lead to difficulties in accurately calculating the normal direction of the phase interface, the curvature, and the physical quantities related to the curvature.

The Level-set method defines the evolution equation for the position of the two-phase interface over time. Unlike the VOF method, the Level-set method uses the level set function $\phi \left(\overrightarrow{r},t\right)$, expressed as the phase function, to distinguish between different phases in the computational domain. In gas–liquid two-phase flow calculations, the level set function $\phi \left(\overrightarrow{r},t\right)$ is defined as:

$$\phi \left(\overrightarrow{r},t\right)=\left\{\begin{array}{ll}>0,\hfill & in the liquid region\hfill \\ 0<F<1,\hfill & at the interface\hfill \\ <0,\hfill & in the gas region\hfill \end{array}\right.$$

(7)

The surrogate value of the level set function $\phi \left(\overrightarrow{r},t\right)$ represents the minimum value of the line connecting the center of the calculation grid and the phase interface. At any time, only the magnitude and direction of the level set function are required to determine the location of the two-phase interface and the distribution of the gas–liquid phase. Therefore, the Level set method can avoid the tedious process of indirectly tracing the phase interface and can improve the ability of tracing the two-phase interface.

In the Level-set method, the equivalence surface of the level set function $\phi \left(\overrightarrow{r},t\right)=0$ is the interface and will satisfy the following equation:

$$\frac{D\phi }{Dt}=\frac{\partial \phi }{\partial t}+\left(\overrightarrow{u}\cdot \nabla \right)\phi =0$$

(8)

Equation (8) is the convective transport equation for the level set function $\phi \left(\overrightarrow{r},t\right)$. Since the function $\phi \left(\overrightarrow{r},t\right)$ is continuous, Equation (9) can be further rewritten as:

$$\frac{\partial \phi }{\partial t}+\overrightarrow{u}\left(\nabla \cdot \phi \right)=0$$

(9)

Since the level set function $\phi \left(\overrightarrow{r},t\right)$ is a distance function, the characteristics of the distance function must also be maintained when performing the calculation. Otherwise, it will result in the loss of fluid mass within the closed phase interface, and the physical quantity is not conserved [32,33]. The function $\phi \left(\overrightarrow{r},t\right)$ is a continuous function, which facilitates the calculation of parameters, such as the curvature of the phase interface, normal vector, and surface tension. However, the problem of the loss of fluid mass within the interface generated during the function calculation is the biggest defect of this method and one of the difficulties to be solved.

From the introduction of the VOF method and the Level-set method, it can be seen that the VOF method can maintain the conservation of physical quantities and the calculation is relatively simple, but the disadvantage is that its difficulty to accurately solve the interface normal vector, curvature, and other internal geometrical parameters. The Level-set method represents the two-phase interface as a function with $\phi \left(\overrightarrow{r},t\right)=0$, which makes it easier to calculate the parameters, such as curvature, normal vector, and surface tension. The disadvantage of the Level-set method lies in the loss of the fluid mass inside the interface in the process of calculating the function $\phi \left(\overrightarrow{r},t\right)$, which does not conserve the physical quantities.

However, the advantages and disadvantages of the VOF method and the Level Set method can complement each other, so the Coupled Level-set method and Volume of Fluid (CLSVOF) method proposed by Yokoi [34] are used to establish the numerical modelling framework according to the characteristics of both the VOF and Level-set method. The CLSVOF method is based on the VOF model and is modified by introducing the level set function $\phi \left(\overrightarrow{r},t\right)$. The CLSVOF method can be applied to the dynamic interface of liquid droplet flow problems, such as wetting, which is related to the attachment of droplets on inclined surfaces with interfacial motion. Firstly, the method will solve the continuity equation and the Navier–Stokes equations in the computational domain [35,36]:

$$\nabla \cdot \overrightarrow{v}=0$$

(10)

$$\frac{\partial }{\partial t}[\rho (\phi )\overrightarrow{v}]+\nabla \cdot [\rho (\phi )\overrightarrow{v}\overrightarrow{v}]=-\nabla p+\nabla \cdot \left[\mu (\phi )\left(\nabla \overrightarrow{v}+\nabla {\overrightarrow{v}}^T\right)\right]+\rho (\phi )\overrightarrow{g}-\overrightarrow{F}$$

(11)

where $\overrightarrow{v}$ is the velocity vector, $\overrightarrow{g}$ is the gravity, and p is the pressure. $\mu (\phi )$ and $\rho (\phi )$ are the dynamic viscosity and density of the droplet, respectively. $\phi$ is a function of the level set:

$$\phi (\overrightarrow{r},t)=\left\{\begin{array}{cc}-d,\hfill & \hfill \mathrm{in} \mathrm{the} \mathrm{gas} \mathrm{region} \hfill \\ 0,\hfill & \hfill \mathrm{at} \mathrm{the} \mathrm{interface} \hfill \\ d,\hfill & \hfill \mathrm{in} \mathrm{the} \mathrm{liquid} \mathrm{region} \hfill \end{array}\right.$$

(12)

where d is the shortest distance between the interface and the point $\overrightarrow{r}$.

The inclusion of the level set function $\phi \left(\overrightarrow{r},t\right)$ allows the calculation of both interface curvature and physical properties to be based on the distance function. The continuity of the level set functions makes the calculation results more accurate. In addition to this, the CLSVOF method will use the method proposed by Brackbill [37] via the CSF (continuous surface force) model, which is the source term of the surface tension imposed by the phase interaction condition solved. This can be expressed smoothly according to the Heaviside function:

$$\overrightarrow{F}=\sigma \kappa (\phi )\nabla H(\phi )$$

(13)

$$H(\phi )=\left\{\begin{array}{ll}0\hfill & \phi <-a\hfill \\ \frac{1}{2}+\frac{\phi }{2a}+\frac{1}{2\pi }sin\left(\frac{\pi \phi }{a}\right)\hfill & \left|\phi \right|⩽a\hfill \\ 1\hfill & \phi >a\hfill \end{array}\right.$$

(14)

where $\kappa (\phi )$ is the curvature of the liquid surface and $\sigma$ is the surface tension coefficient. $H\left(\phi \right)$ is the Heaviside function, which can be used to calculate the physical properties of fluids within the interface. a is the thickness of the transition zone at the phase interface. The physical properties of fluids $\rho \left(\phi \right) \mathrm{a}\mathrm{n}\mathrm{d} \mu \left(\phi \right)$ can be expressed as:

$$\rho (\phi )={\rho }_g+\left({\rho }_l-{\rho }_g\right)H(\phi )$$

(15)

$$\mu (\phi )={\mu }_g+\left({\mu }_l-{\mu }_g\right)H(\phi )$$

(16)

where the subscripts g and l denote the gas phase and liquid phase, respectively.

To consider the effect of the contact angle via the wall boundary condition, the surface normal at the cell next to the wall is expressed as:

$$\widehat{n}={\widehat{n}}_{w}cos\theta +{\widehat{\tau }}_{w}sin\theta$$

(17)

where ${\widehat{n}}_w$ and ${\widehat{\tau }}_w$ are the unit vectors perpendicular and tangent to the wall.

Establishing a steady-state flow field with constant wind speed in the absence of droplets is important to ensure the observation of droplet motion in the presence of a stable external flow field. The droplet motion process on the windshield was then simulated by establishing transient conditions based on the steady-state flow field. Combining the values of the VOF and Level Set functions with the geometric PLIC method, an initialization procedure is applied after each time step [38]. The calculations are performed on a fixed Eulerian structured grid using the CLSVOF method to follow the gas–liquid interface.

The Mach number of the external flow field of the windshield in the realistic environment is relatively low, and the airflow separation is easily formed around the vehicle during the driving process. Therefore, it can be regarded as an incompressible viscous isothermal flow field. The turbulence model is usually used in the numerical simulation of the external flow field of the car. In this study, the standard k-$\epsilon$ model is used with good convergence and lower residual values.

The movement of droplets on the windshield surface is influenced by the droplets’ physical properties and the surface wettability. The wettability is determined by interactions at the solid–gas, solid–liquid, and gas–liquid interfaces and is assessed using two parameters: the static contact angle θ_e and the dynamic contact angle θ_D. In the airflow, imbalances in the forces acting on the droplet can lead to dynamic changes in wettability behavior. When the contact line velocity U_cl exceeds 0, the dynamic contact angle is utilized to evaluate the motion of the droplet’s contact lines.

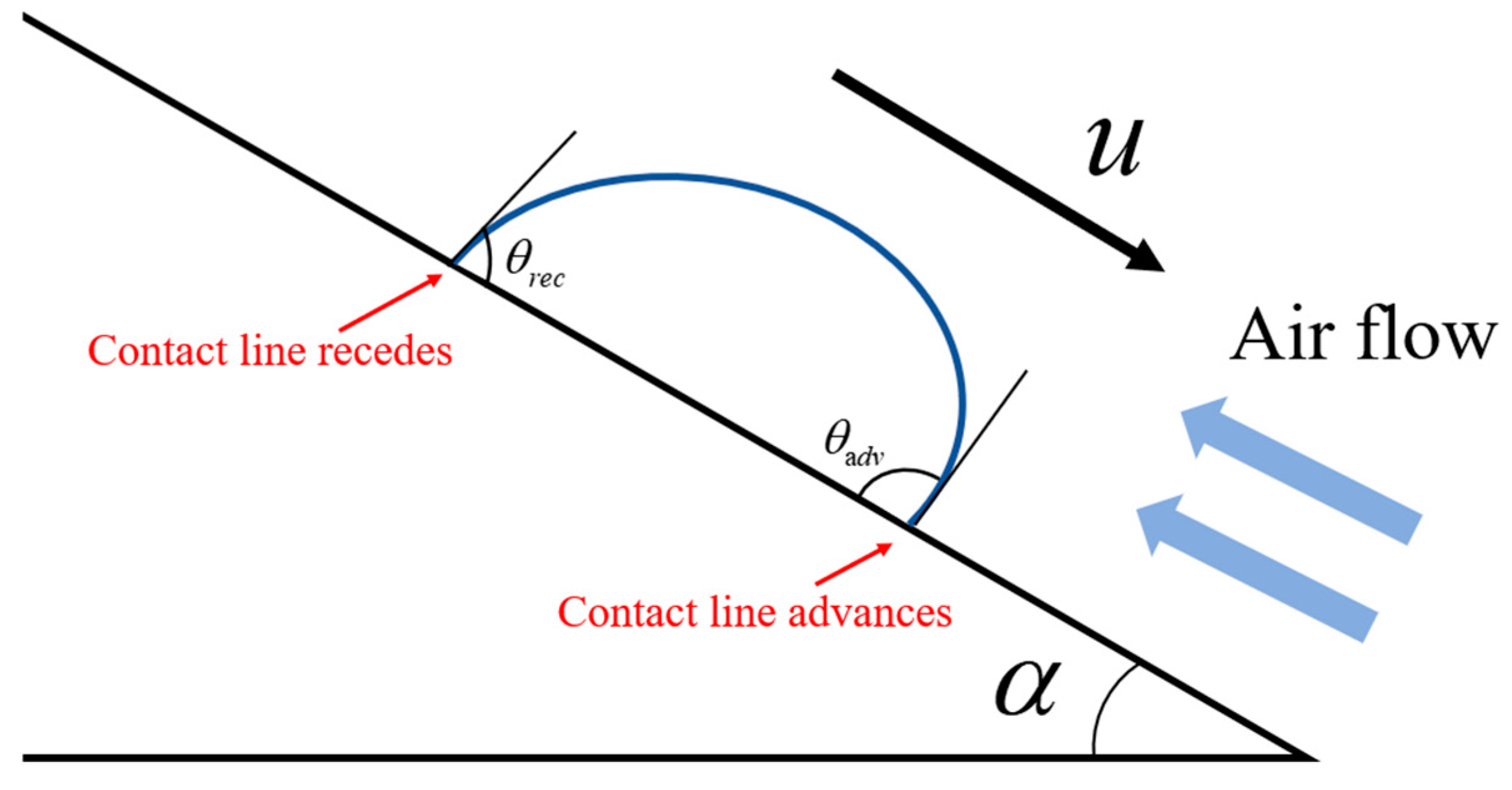

When the contact lines begin to move, its dynamic contact angle parameters are illustrated in Figure 4. The contact angle at the onset of wetting by the three-phase contact line is defined as the advancing contact angle θ_adv, while the contact angle during the retreat of the three-phase contact line along the wetted surface is defined as the receding contact angle θ_rec [39].

The dynamic contact angle model used in association with a flow model has been found to be an accurate method to represent the contact angle variation in fluid flow [40]. Thus, the dynamic contact angle is introduced to reproduce the transient contact angle values between the droplet and the wall more accurately. The dynamic contact angle (${\theta }_D$) is defined as a function of the contact line velocity in the combination of Kistler and Tanner’s methods, which is expanded in the form of the capillary number Ca, the contact line’s diffusion velocity U_cl, the static advancing contact angle θ_adv, the static receding contact angle θ_rec, and the Hoffman empirical function $f_H\left(x\right)$ and its inverse $f_H^{-1}\left(x\right)$. It can be expressed as:

$${\theta }_D=\left\{\begin{array}{ll}{f}_H\left(Ca+f_H^{-1}\left({\theta }_{adv}\right)\right)\hfill & U_{cl}\ge 0\hfill \\ {\left({{\theta }_{rec}}^3-72Ca\right)}^{\frac{1}{3}}\hfill & U_{cl}<0\hfill \end{array}\right.$$

(18)

$$f_H(x)=arccos\left(1-2tanh\left(5.16{\left(\frac{x}{1+1.31x^{0.99}}\right)}^{0.706}\right)\right)$$

(19)

where the capillary number Ca is defined as $Ca=\frac{{\mu }_l{U}_{cl}}{\sigma }$. ${\mu }_l$ and $\sigma$ in the definition equation are the dynamic viscosity and surface tension of the liquid, respectively.

2.3. Grid Strategy and Grid Independence Verification

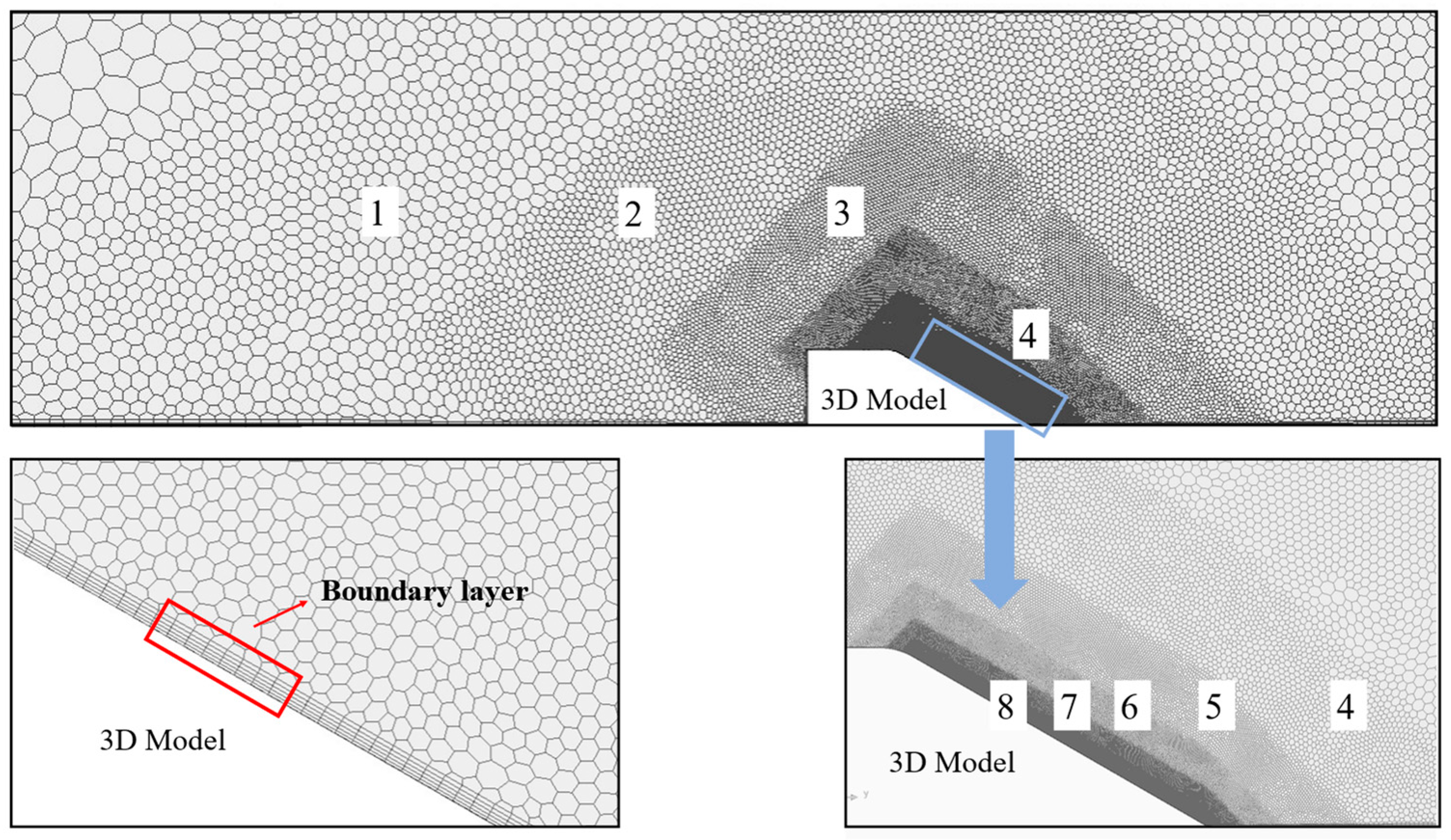

In the numerical simulation of droplet motion in the airflow, the surface mesh fitness will directly affect the accuracy of droplet simulation. Therefore, the mesh of the tilted surface of the windshield and the droplet motion region has high requirements. Thus, a polyhedral mesh is used for spatial discretization of the whole computational domain, and a smooth transition scheme is adopted between different mesh sizes. In this study, the development of the flow field in the inclined area of the 3D model is considered, and the main encrypted area is the inclined area of the model. A total of eight encrypted areas are established in the whole computational domain to ensure the grid size of the inclined area meets the needs of analyzing the droplet motion. In addition, to accurately obtain the flow inside the boundary layer and to satisfy the principle that the Y+ value is established in the logarithmic law layer, a fine prismatic layer mesh is used to delineate the surface of the window, with the first layer mesh set at 0.1 mm and the growth ratio at 1.1, totaling five layers. The encrypted region and boundary layer division of the whole computational domain are shown in Figure 5.

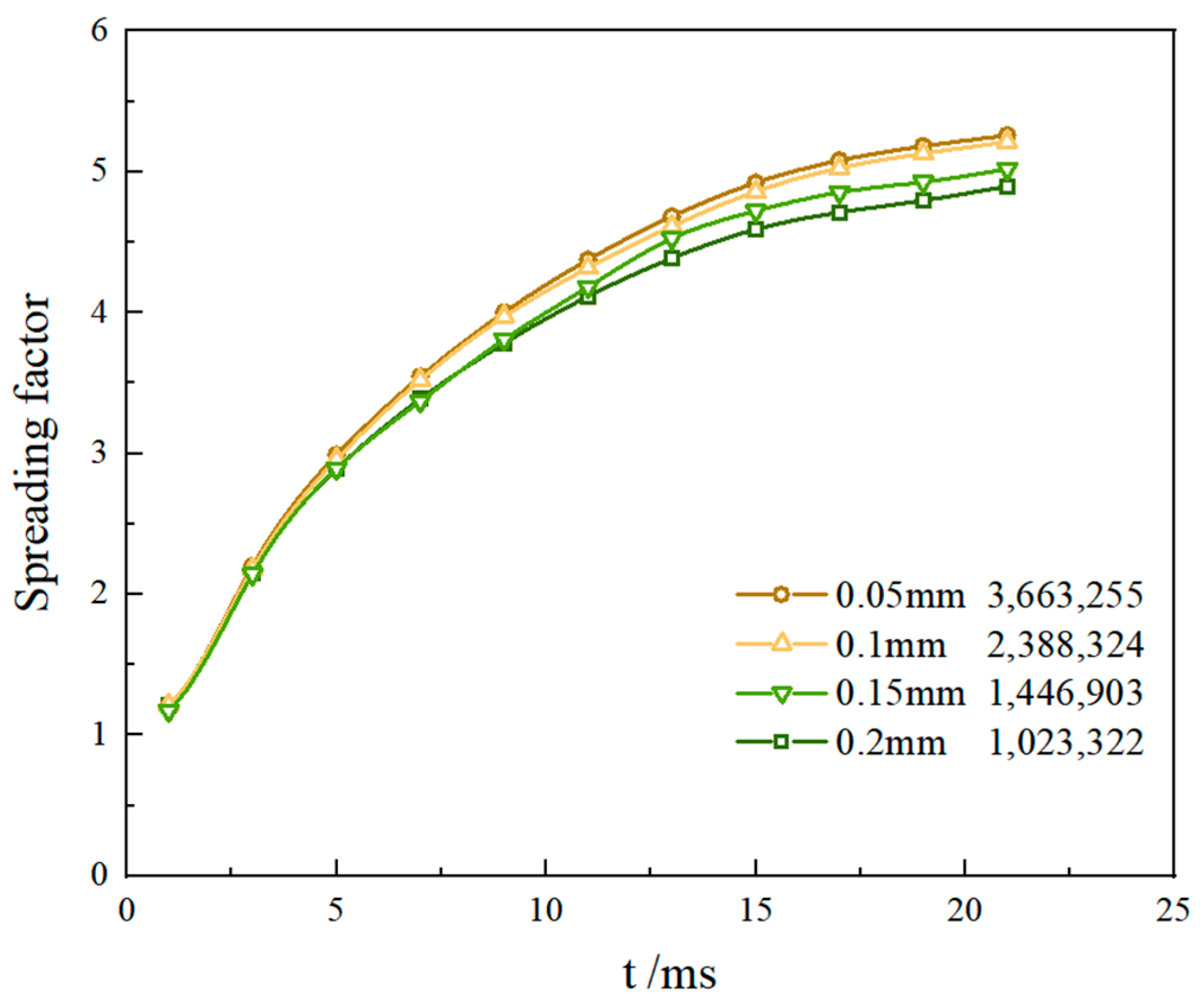

A test of grid independence is required before the numerical simulation calculation. When using the CLSVOF method for the droplet simulation, the minimum mesh size for displaying the droplet morphology needs to be considered. In the grid independence test, the minimum grid size is set to 0.05 mm, 0.1 mm, 0.15 mm, and 0.2 mm. The total number of grids drawn with the same grid strategy are 3,663,255, 2,388,324, 1,446,903, and 1,023,322, respectively. We take a 3 mm diameter droplet with an initial velocity of 0.5 m/s impinging on the inclined plane as an example and compare the droplet spreading factor (the ratio of droplet spreading length to droplet diameter). The comparison results are shown in Figure 6. The results show that a reasonable grid scale is a prerequisite for capturing the phase interface accurately. According to the graphical results, the model with the minimum grid size set to 0.1 mm, which corresponds to the total grid number of 2,388,324, is selected.

3. Results and Discussion

3.1. Experiment and Model Validation

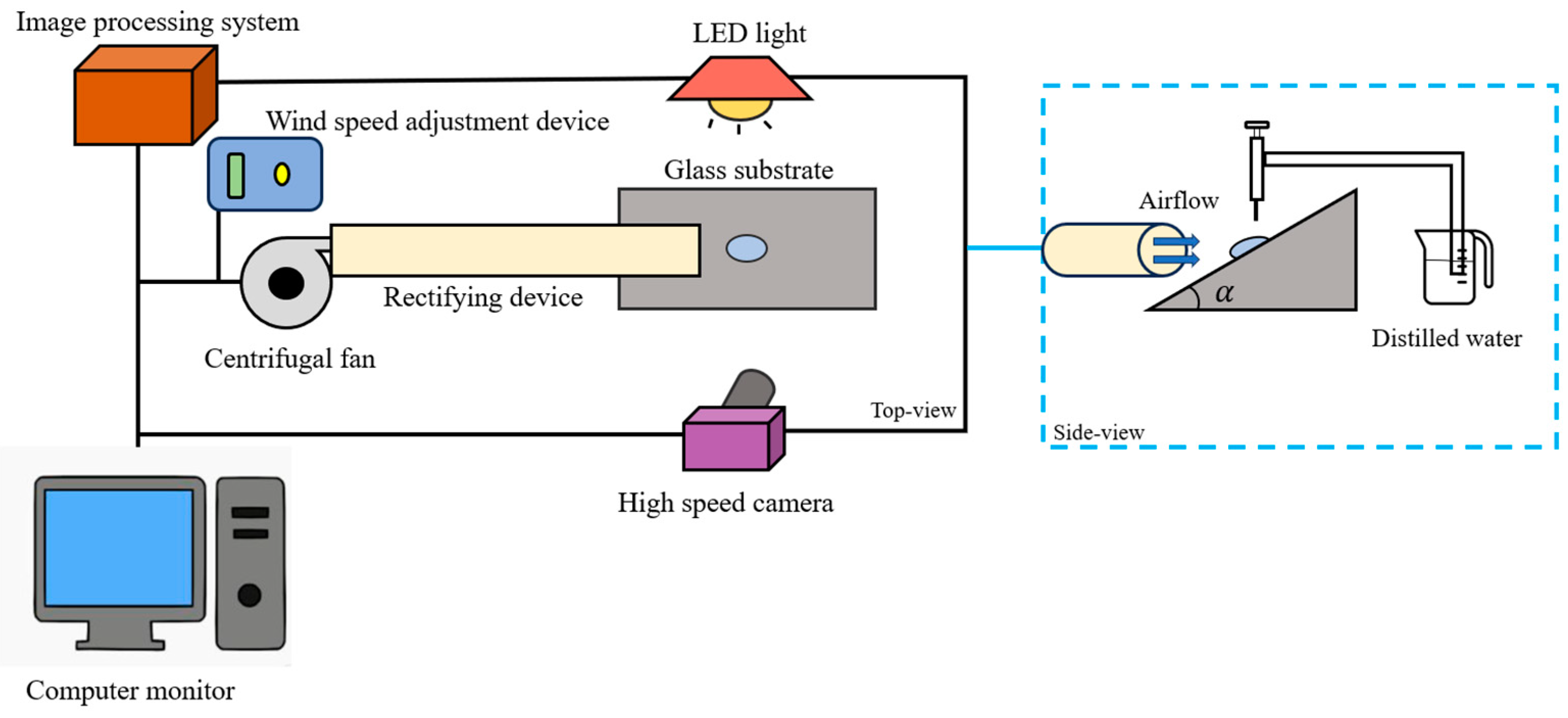

During the study, we developed an experimental setup to capture the movement of adhesive droplets on a tilted surface within airflow environment, as illustrated in Figure 7. A high-speed video camera equipped with an image processing system was utilized to record the details of droplet motion under the airflow, while an LED light source provided illumination for the experiments. Airflow was generated using a centrifugal fan, with the wind speed regulated by a wind speed adjustment device. The air passed through a 100 cm long rectifier equipped with damping screens to ensure the stable airflow. The hydrophilic glass substrate had a tilt angle of 30 degrees, identical to tilt $\alpha$ in the 3D model.

To ensure the accuracy and reliability of the experimental data, we conducted at least three replicated experiments for each airflow velocity to assess the behavior of the droplets and minimize experimental error. Figure 8 illustrates the dynamic behavior of droplets in airflow environments with velocities of U = 3 m/s, 6 m/s, and 10 m/s, using droplets with a spherical diameter of D = 3 mm. The initial state of droplet movement is marked as t = 0 ms, with the red arrow indicating the direction of droplet movement along the tilted surface.

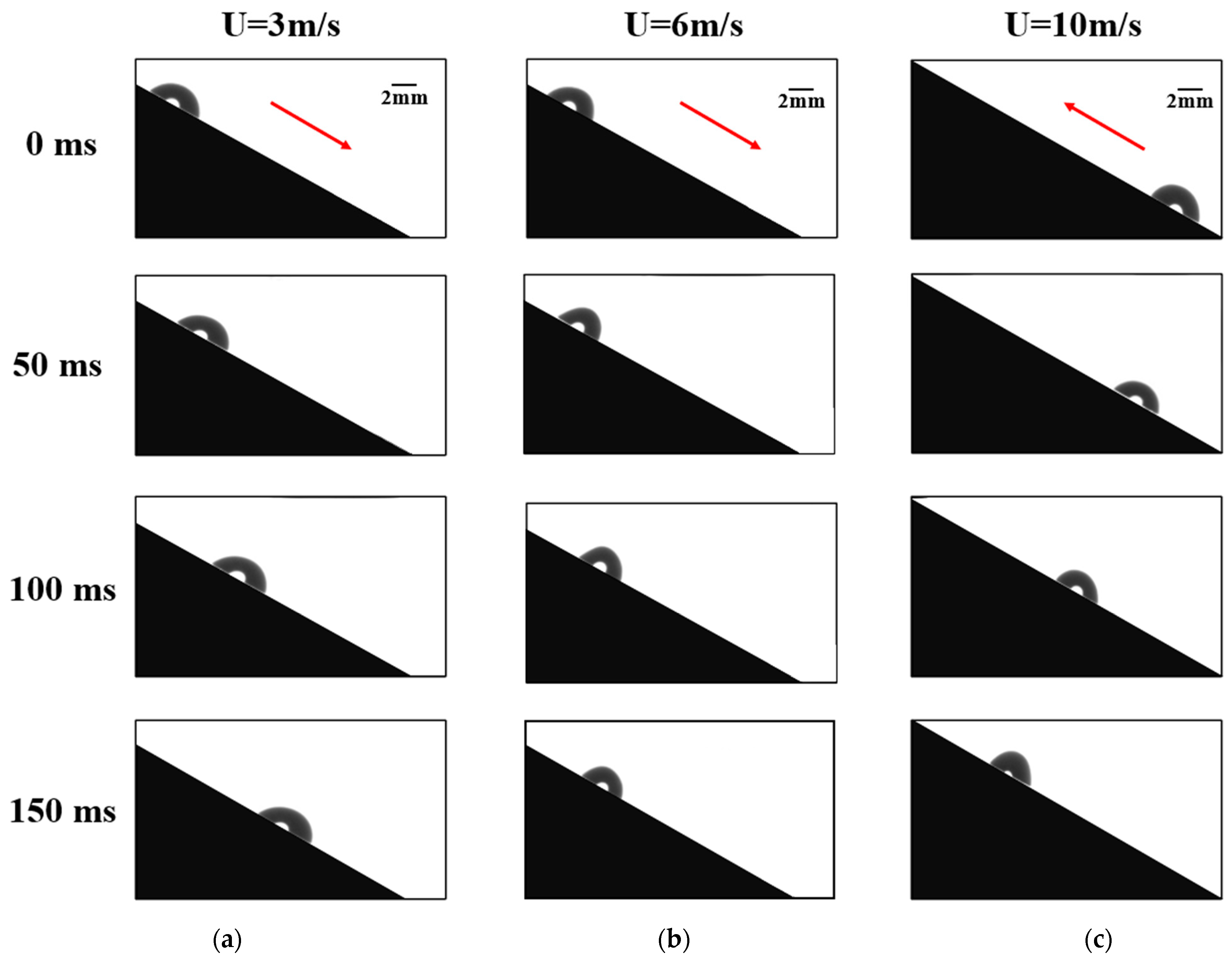

As shown in the Figure 8, at U = 3 m/s, the droplet retains its spherical cap shape in the initial state. Over time, the droplets travel greater distances along the surface and increase in velocity. At U = 6 m/s, the droplet initially moves down the surface, but its contour changes significantly during movement, resulting in an increase in droplet height H and a decrease in wetting length L_d. Additionally, the distance the droplet travels decreases significantly between t = 100 ms and 150 ms. At U = 10 m/s, the high airflow velocity prevents the droplet from maintaining a symmetric spherical cap shape in the initial state, causing the droplet to accelerate upwards along the inclined plane.

In addition, this section also compares the profiles of droplets and the displacement of the contact line under airflow conditions of U = 6 m/s between experimental observations and simulation results to validate the accuracy of the simulation. The distances between the contact lines in both experimental and numerical simulations were analyzed using the contact angle plug-in of ImageJ 1.8.0 software, with each measurement repeated five times for enhanced precision.

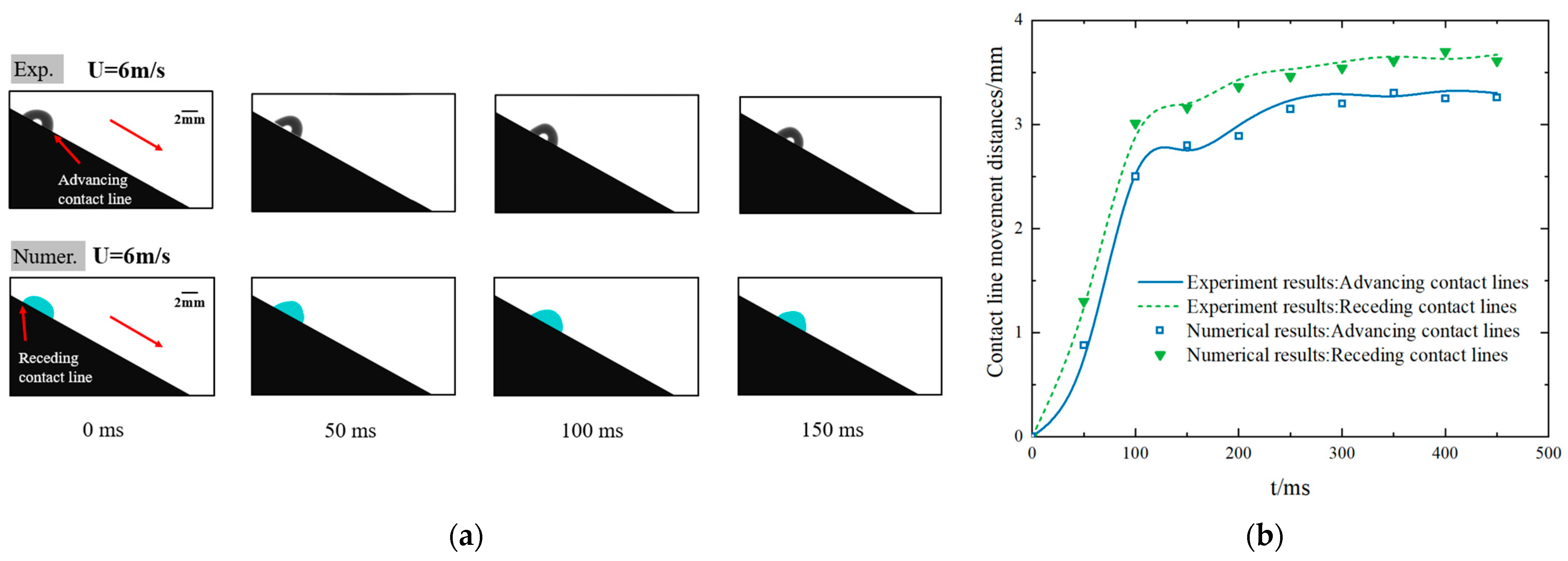

Figure 9a presents a comparison between the profiles of droplets in numerical simulations and experimental observations over various time intervals. Figure 9b depicts the movement distances of the advancing and receding contact lines. The average error between the numerical simulation results and the experimental measurements of the contact angle is found to be less than 5%, which falls within the acceptable range of engineering error. This demonstrates the reliability of the numerical model, as evidenced by the consistent agreement between the experimental data and the numerical results.

3.2. Forces Acting on the Droplet

Firstly, the droplet motion on the windshield should be deduced from the force analysis in the airflow. In the presence of the airflow, the droplets originally attached to the wall begin to deform, causing the advancing contact angle θ_adv along the direction of motion to increase above the static contact angle θ_e. The receding contact angle θ_rec on the side away from the direction of motion decreases. The contact angle hysteresis force F_adh resulting from this phenomenon can be expressed as a function of the droplet wetting length L_d, the surface tension of the droplet $\sigma$, and the contact angle hysteresis [41].

$$F_{adh}=K{L}_d\sigma \left(cos{\theta }_{rec}-cos{\theta }_{adv}\right)$$

(20)

where K is denoted as an adjustable parameter describing the variation of the droplet contact line. According to the study of Rosiman et al. [15], the value of K is set as 1.

When a droplet moves rapidly on the windshield, there is internal friction in the droplet, which forms a resistance to motion. The internal flow field is rotating [42,43]. The rotating flow field and the mean flow field inside the droplet can overlap each other, which will form a boundary layer of thickness δ. When the droplet diameter is larger than the capillary length $\sqrt{\frac{\sigma }{\rho g}}$, the viscous dissipation force $F_{\tau }$ generated by the shear stress associated with the main part of the droplet will dominate the viscous dissipation. The viscous dissipation force $F_{\tau }$ of the droplet is determined by the velocity gradient inside the droplet. According to the modification of the droplet velocity model proposed by Wang and Zhao [44], the viscous dissipation force $F_{\tau }$ of the droplet will be improved as:

$$F_{\tau }=\mu A\frac{\partial u}{\partial y}=\mu A\frac{U_d\sqrt{Re}}{\sqrt{r\Delta y}}=\mu U_{d}V{’}^{\frac{1}{3}}\sqrt{Re}{c}_4\left({\theta }_e\right)$$

(21)

where the Reynolds number Re is given by $Re=\frac{{\rho }_l{U}_{d}r}{\mu }$, where ${\rho }_l$ is the density of water, U_d is the velocity of droplet, and r is half of the wetting length L_d, r = L_d/2.

The geometric parameters describing the shape and motion of the droplet, such as the droplet volume V’, the contact area A between the droplet and the inclined surface, and the droplet motion velocity u, are brought into the expression for the viscous dissipative force $F_{\tau }$ of the droplet. It is necessary to introduce the expression c₄ (θ_e) for the equilibrium contact angle θ_e.

$$c_4\left({\theta }_e\right)=\frac{A}{V^{\frac{1}{3}}\sqrt{r\Delta y}}=\pi {\left(\frac{3}{\pi }\right)}^{\frac{1}{3}}{\left(\frac{si{n}^3{\theta }_e}{2-3cos{\theta }_e+co{s}^3{\theta }_e}\right)}^{\frac{1}{2}}{\left(\frac{2+cos{\theta }_e}{1-cos{\theta }_e}\right)}^{\frac{1}{6}}$$

(22)

The wind direction is parallel to the windshield, so there is a certain wind traction force F_wind when the droplet moves on the windshield, which is defined by the equation:

$$F_{\mathit{wind} }=\frac{1}{2}{\rho }_g{C}_{D}S{\mathrm{U}}^2$$

(23)

where ${\rho }_g$ is the air density, C_D is the drag coefficient, S is the projected area of the droplet, and U is the velocity of the airflow. The value of the drag coefficient C_D is related to the droplet shape and Reynolds number in the airflow. In order to improve the efficiency of calculation, the drag coefficient C_D of the rigid sphere model is set as 0.4.

As shown in Figure 10, the droplet attached to the windshield will be subjected to four forces when moving, namely, its own gravity F_g, droplet contact angle hysteresis F_adh, viscous dissipation force F_τ and wind traction force F_wind. The directions of F_adh and F_τ are both opposed to the direction of droplet motion.

It can be shown from the force analysis that F_adh, F_τ and, F_wind are the key factors affecting the motion pattern of droplets under airflow. As the wind traction force F_wind increases, the direction of motion and acceleration of the droplet will change. Figure 11 shows the schematic diagram of the initial shape of the droplet moving in different directions along the surface of the windshield under the airflow.

3.3. Motion Patterns of Droplets

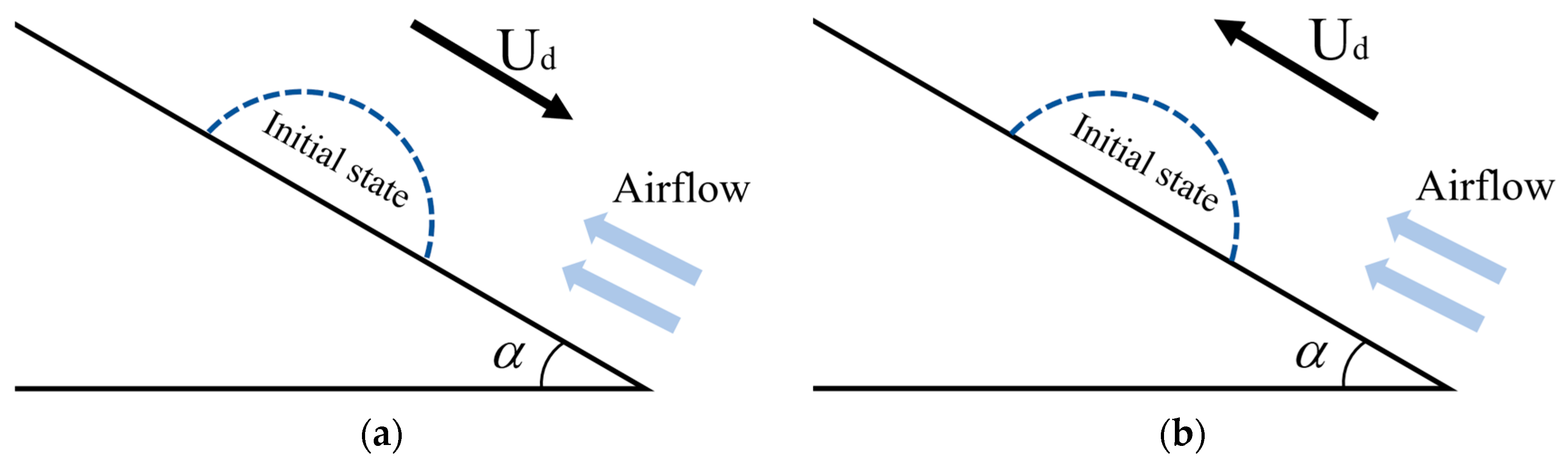

In order to further understand the different dynamic behaviors of droplets on an inclined surface in the airflow, this section summarizes different motion patterns of droplets by analyzing the changes in droplet contours. The experimental results in the previous section indicate that the droplet’s direction will change as airflow velocity increases. To better capture and analyze this change in droplet morphology and movement pattern in an airflow environment, this study reproduces the movement of the surface droplet through planarization, and the direction of the droplet’s movement is indicated by the arrows in the picture.

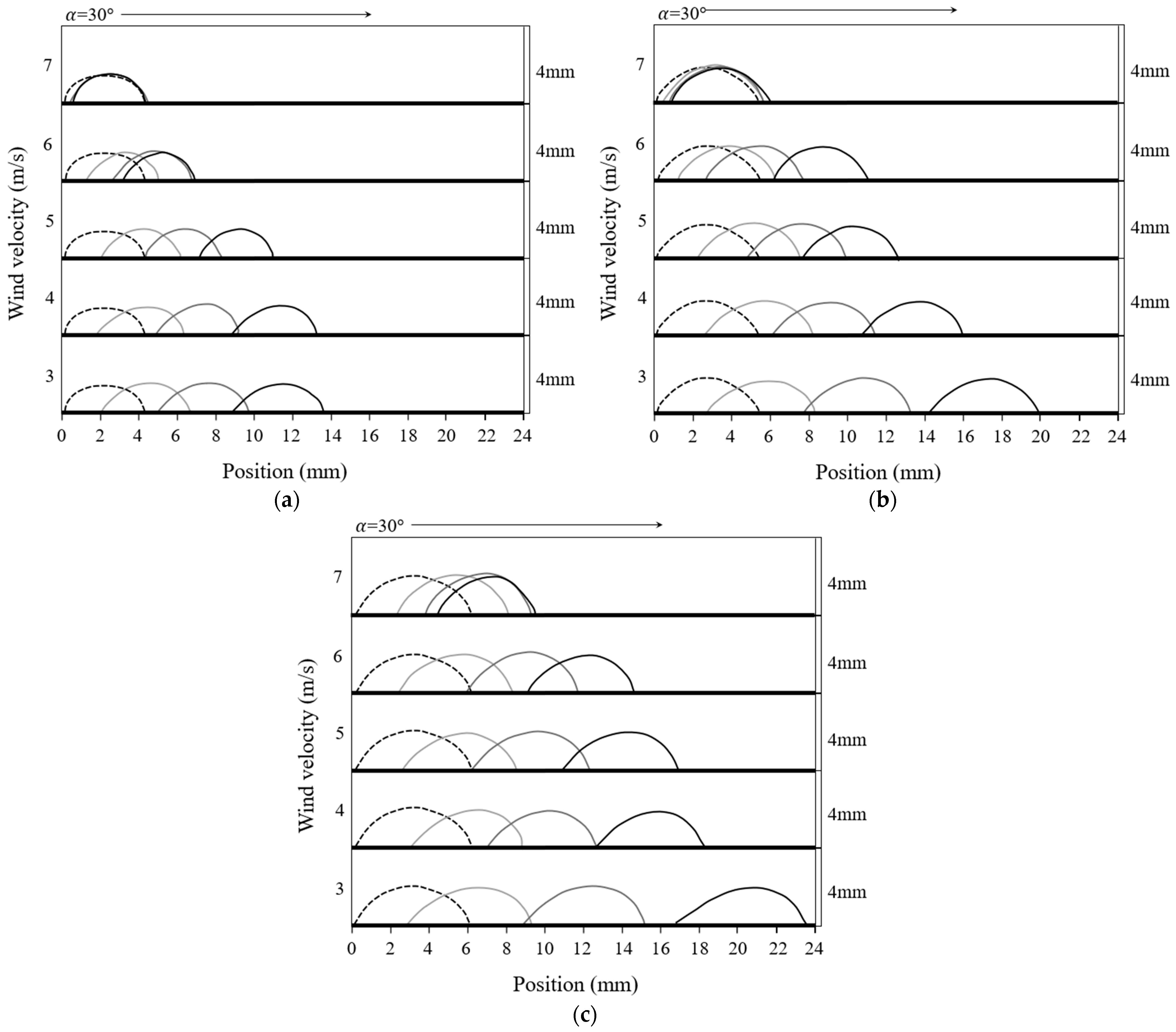

The changes in droplet contours at different times on a 30° windshield for droplets with a spherical diameter D of 3 mm, 3.5 mm, and 4 mm in air velocities U of 3–7 m/s are illustrated in Figure 12. t = 0 corresponds to the beginning of droplet motion. The initial state of the droplet is a spherical cap shape. As time increases, the droplet profiles begin to change. From the overall view of Figure 12, the droplet motion direction is all downward along the windshield. In the states of air velocity U of 3 m/s and 4 m/s, the influence of airflow is smaller, and the droplet still shows a tendency to accelerate downward. With the increase in droplet size, the inertia force of droplet motion is enhanced, resulting in the increasing speed of droplet motion. The deformation effects of the droplet are also more obvious, which are manifested by a larger advancing contact angle θ_adv and a smaller receding contact angle θ_rec. When the droplets are the same size, with the increase in wind speed, the droplets slide down the inclined surface with a decreasing distance, the wetting length L_d decreases with the increase of the droplet height H, the advancing contact angle θ_adv decreases and the receding contact angle θ_rec increases.

However, when the wind speed is increased to 7 m/s, it can be seen from the schematic diagrams of the droplet contours that the sliding distance of the droplet decreases for the same time span. The profiles of 3 mm droplets at t = 100 ms and t = 150 ms are approximately coincident, and there is also a tendency for the profiles of 3.5 mm and 4 mm droplets to coincide. This means that, when the wind speed increases to a certain value, the movement speed of the droplets shows an increase and then decreases, and may even have a stationary tendency.

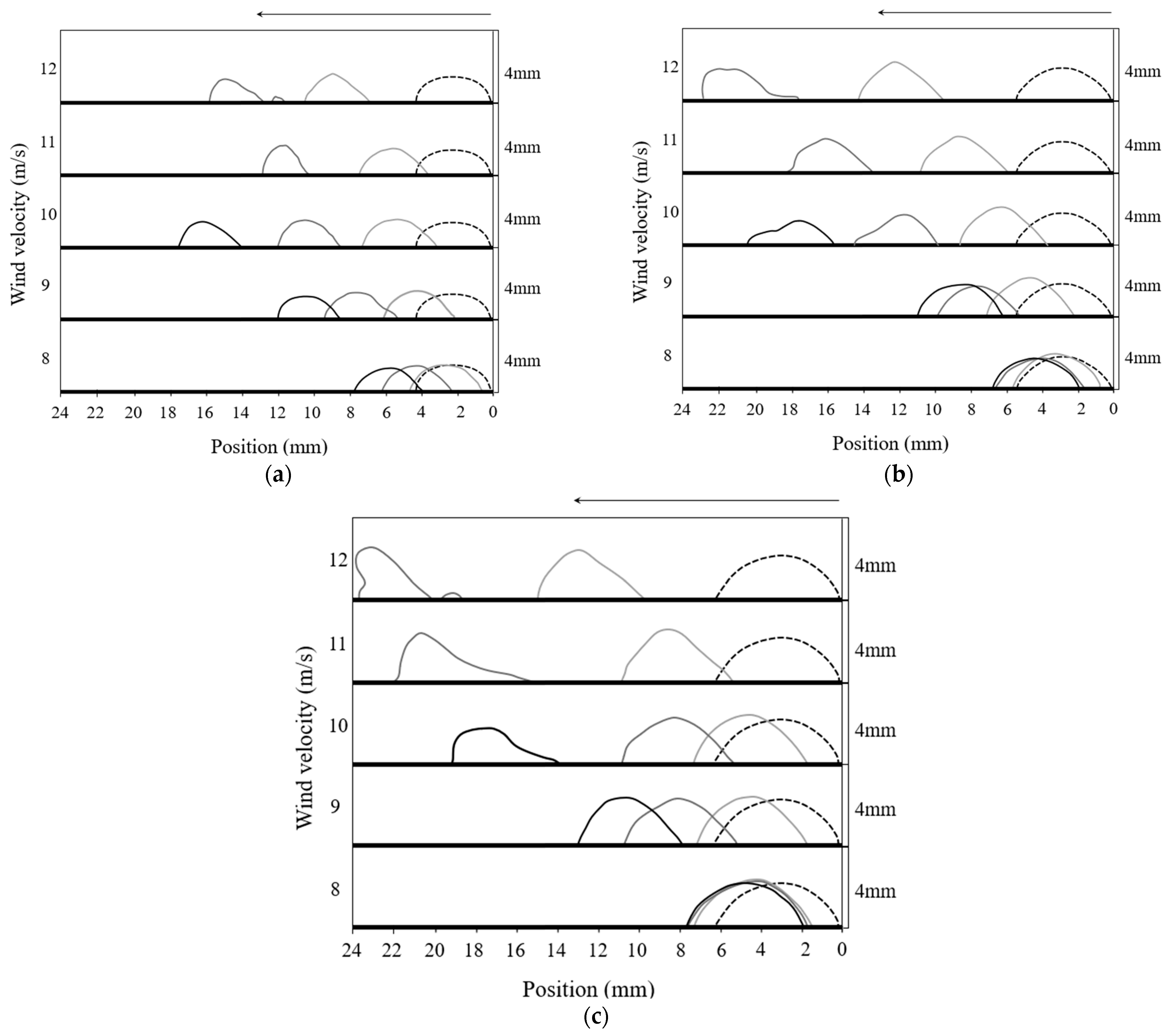

To obtain the motion of droplets on the windshield at higher air speeds, Figure 13 illustrates the variation of the profiles of D = 3 mm, 3.5 mm, and 4 mm droplets at different times on a 30° windshield in air velocity U of 8–12 m/s. It can be seen from Figure 13 that the direction of the droplets is upwards along the inclined plane. At wind speed of 8 m/s, the 3 mm droplet accelerated to climb along the inclined surface, the droplet contours of 3.5 mm and 4 mm overlapped after climbing for a certain distance, and the velocity first increased and then decreased. With increasing air velocity, which makes the wind traction force F_wind dominant, the phenomenon of accelerated droplet climbing is more obvious, and the degree of droplet profile changes is more drastic. With the increase in droplet sizes, the inertia force of the droplet increases, and the increase in droplet velocity in the same time is greater. Even the rear part of the 3.5 mm and 4 mm droplents formed a “tail” at higher wind speeds, in which case the receding contact angle θ_rec of the droplets decreased significantly and the wetting length L_d increased significantly.

In summary, when the wind speed increases, the droplets originally adhering to the slant surface show different motion patterns, which can be summarised into three main states: in the first state, the wind speed is small, the droplets are mainly driven by the gravity force F_gsinα, and the droplets will accelerate along the slant surface. In the second state, with increase in the wind speed, the droplets begin to tend to remain static and, due to the change of morphology, the droplets are balanced by the force. In the third state, in the environment of larger wind speed, the adherent droplets will be accelerated upward along the inclined plane dominated by the wind traction force F_wind, and the morphology of the droplets will change significantly with time during the movement.

3.4. Changes in Droplet Morphology Parameters

Based on the above analysis, it has been concluded that, under different air velocities, the adhering droplets on the inclined surface can be divided into three motion modes: accelerated decline, force equilibrium, and accelerated climb. In this section, the surface wettability and surface properties of droplets under different motion modes are described by investigating the droplet wetting length L_d, droplet height H, and the cosine number of advancing contact angle θ_adv and receding contact angle θ_rec on the inclined surface.

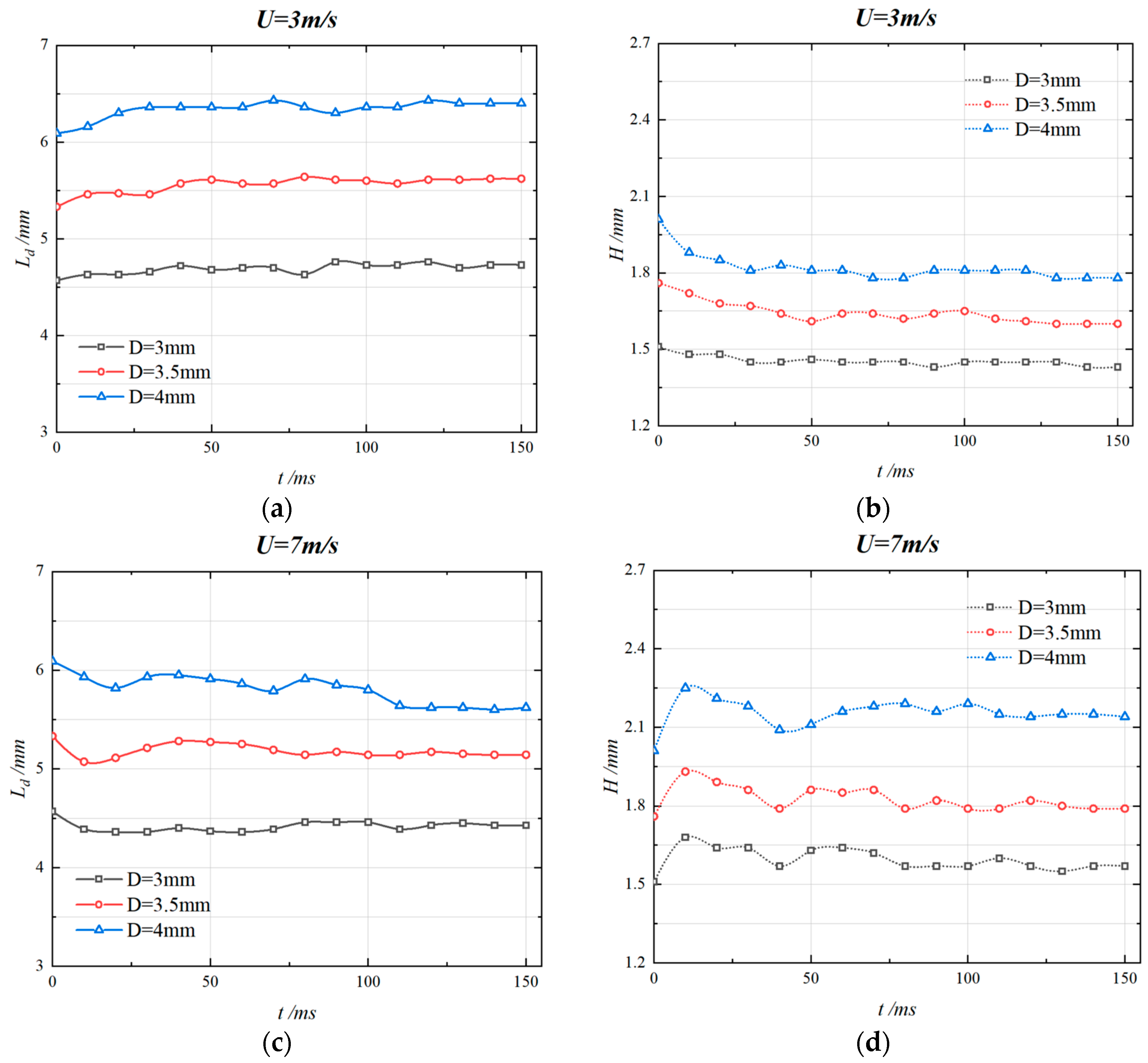

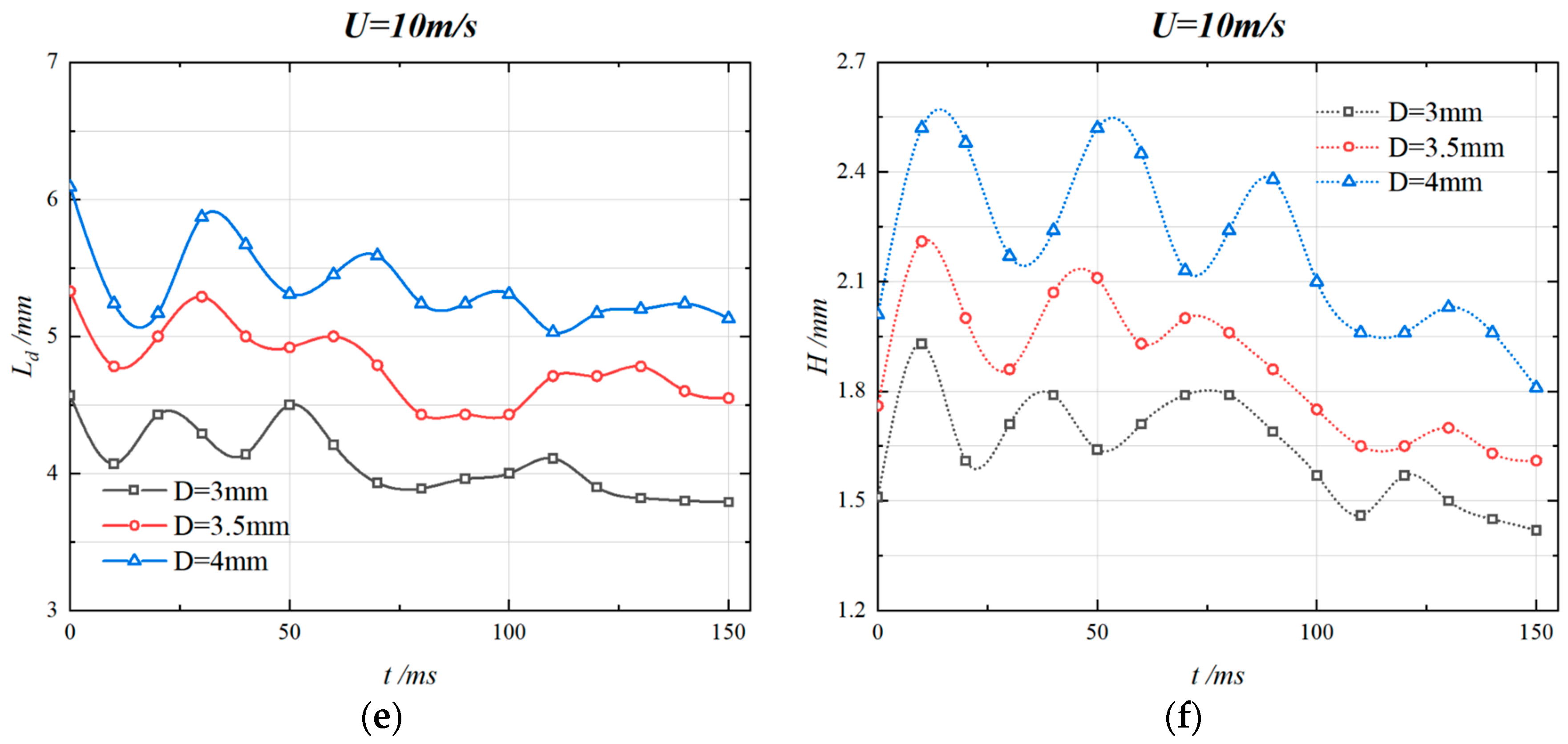

Figure 14 compares the values of wetting length L_d and droplet height H in different motion modes for the adherent droplets with spherical diameter D of 3 mm, 3.5 mm, and 4 mm on a 30° windshield in the air velocity of U = 3 m/s, 7 m/s and 10 m/s based on the simulation results in the previous section. From Figure 14a,b, at the velocity of U = 3 m/s, the droplet is in an accelerated downward motion at this time. The gravitational component force F_gsinα dominates the droplet motion. Therefore, the value of wetting length L_d will be affected by the dominant force at the beginning, and then increased, while the value of droplet height H will decrease. As the size of the droplet increases, the inertial force of the droplet strengthens, leading to a more pronounced increase in L_d and decrease in H. The forces gradually stabilize the droplet during the continuous acceleration of the decline. Therefore, the droplet morphology also reflects the trend of L_d and H changes first and then stabilizes. However, due to the existence of constant output wind force and the inertial force, it will lead to the oscillation at the droplet interface, and the value of L_d and H have smaller fluctuations under this trend. At wind speed U = 7 m/s, wind traction force F_wind increases significantly. From Figure 14c,d, unlike the case of U = 3 m/s, the value of L_d, which initially adheres to the inclined surface and remains stable, decreases significantly, and the value of H increases significantly, showing a “compact” droplet pattern. At this time, the droplet forces have not yet reached equilibrium, so in the subsequent motion process the force equilibrium will be reached through the change in L_d and H. With time changes, the value of L_d increases and tends to be stable, but the value of H still fluctuates up and down, and gradually stabilizes after 120 ms. From the overall tendency, the stable value of L_d decreases and the value of H increases compared with the initial value.

At higher wind speeds U = 10 m/s, at this time wind traction force F_wind becomes completely the dominant force in the droplet motion. From Figure 14e,f, it can be seen that, the higher the wind speed, the more likely the droplets will experience violent interfacial oscillations. Therefore, raindrops experience sharp changes in both droplet wetting length L_d and droplet height H values during the climb along the inclined plane, and this change increases as the size of the droplet increases. At the moment of initial motion, the droplets are more “compact” than at U = 7 m/s due to the influence of larger airflow force, and the number and amplitude of fluctuations in the L_d and H values are much higher. Before t = 100 ms, the direction of L_d and H fluctuations also shows a completely opposite trend. However, at t = 150 ms, the L_d and H values are lower than the initial values, probably due to the excessive wind speed that causes the droplets to climb too far and leave some liquid in their wake.

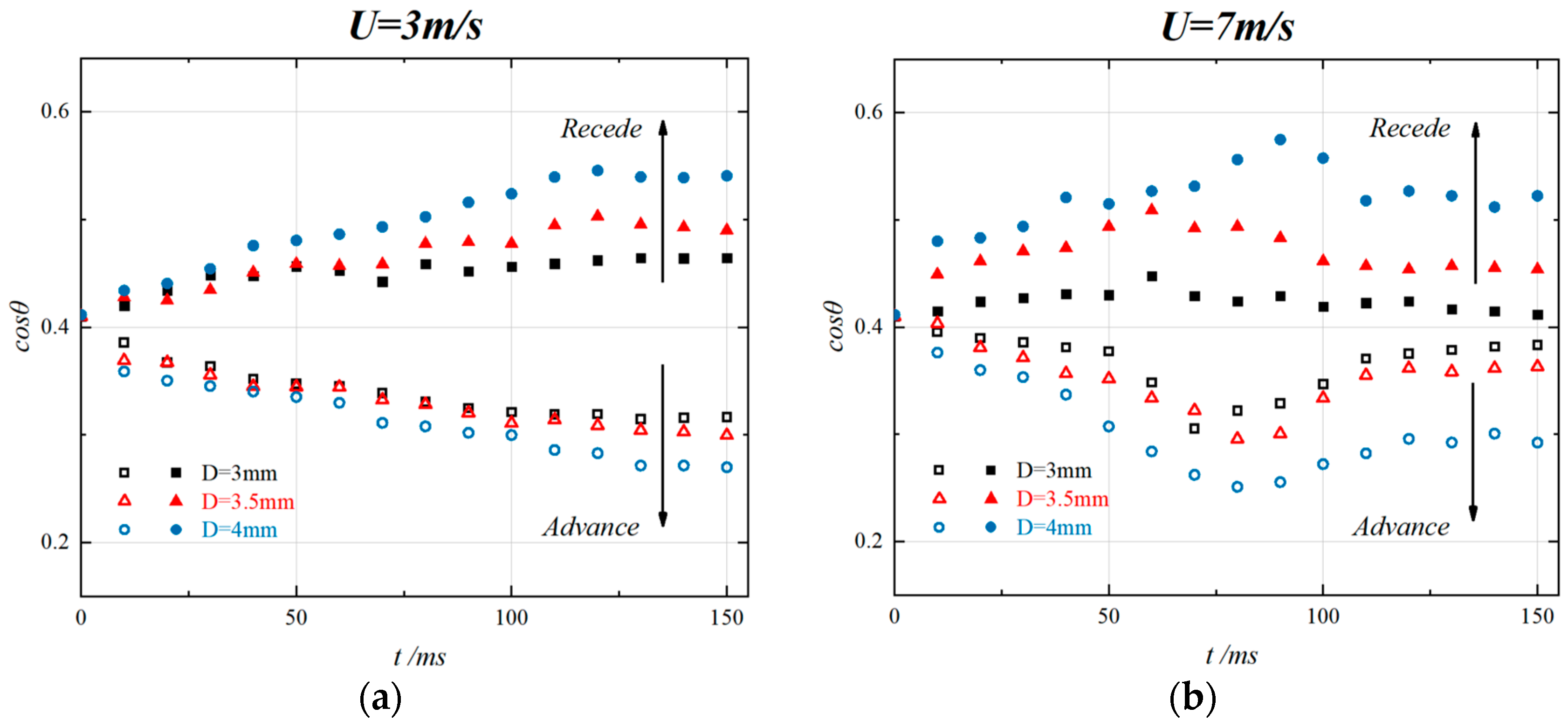

Figure 15 shows the cosine number of advancing contact angle θ_adv and receding contact angle θ_rec of the initially spherical diameters D of 3 mm, 3.5 mm, and 4 mm adherent droplets on the inclined surface at the speed of U = 3 m/s and 7 m/s. From Figure 15a, the cosine component of the advancing contact angle θ_adv decreases and then stabilizes with time, while the cosine component of the receding contact angle θ_rec increases and then stabilizes. Moreover, the increase and decrease in the cosine component of the contact angle can be more obvious with larger droplet sizes, because the droplet on the inclined surface is affected by the gravitational force, which causes continuous deformation of the droplet shape, and the contact angle of the droplet is stabilized after the force is stabilized. The results of contact angle at wind speed of 7 m/s are shown in Figure 15b. Initially, the change in the cosine component of contact angle is similar to that at 3 m/s when the droplet is not in equilibrium. However, after t = 100 ms, the cosine values of the droplet advancing θ_adv and receding contact angles θ_rec tend to be close to each other, which makes the droplet contact angle hysteresis reduce and promotes the droplet force equilibrium.

3.5. Dynamic Force Analysis

To further understand the impact of changes in size and airflow velocity on the motion state of droplets, this section provides quantitative results of droplet contact angle hysteresis force F_adh, viscous dissipation force F_τ, and wind traction force F_wind, comparing and discussing the magnitude of the droplet motion dominant force and the sum of other component forces.

3.5.1. Impact of Droplet Sizes

Figure 16 illustrates the variations in force experienced by droplets of sizes D = 3 mm, D = 3.5 mm, and D = 4 mm under the airflow of U = 3 m/s. The evolution of the droplet contact angle hysteresis force F_adh, a significant factor impeding droplet movement, is depicted in Figure 16a. According to Equation (20), the primary determinants are the differences in cosine values of the advancing and receding contact angles cosθ_rec − cosθ_adv, and the wetting length L_d. As the droplet size increases, the wetting length L_d also increases. The analysis of the cosine values of the contact angles in Figure 15a reveals that an increase in the advancing contact angle θ_adv, and a decrease in the receding contact angle θ_rec, which lead to a rise in the value of cosθ_rec − cosθ_adv over time. Moreover, as the droplet size enlarges, the initial fluctuation effect during droplet movement becomes more pronounced. Consequently, with the passage of time and increase in droplet size, the value of F_adh escalates, and the initial fluctuations in droplet movement become more evident. Under the influence of airflow, the wind traction force F_wind exerted on the droplet is illustrated in Figure 16b. The figure indicates that, at low airflow speeds, F_wind is generally modest, but its magnitude escalates with droplet size increases. According to Equation (23), F_wind is primarily influenced by the airflow velocity and the projected area S of the droplet. At the same airflow speed, an increase in the wetting length L_d of the droplet during its movement leads to a slight decrease in its the projected area, resulting in a decrease in the F_wind. The viscous dissipation force F_τ of the droplet, determined by the internal velocity gradient, is depicted in Figure 16c. The figure shows that, with the progression of time and enlargement of droplet size, the rate of increase of the viscous dissipation force F_τ initially rises and then diminishes, because the magnitude of the viscous dissipation force F_τ is mainly influenced by the volume of the droplet and the speed of its movement. As the droplet size expands, its volume increase. In the airflow of U = 3 m/s, the droplet accelerates its slide along the surface, resulting in a continuous increase in its speed.

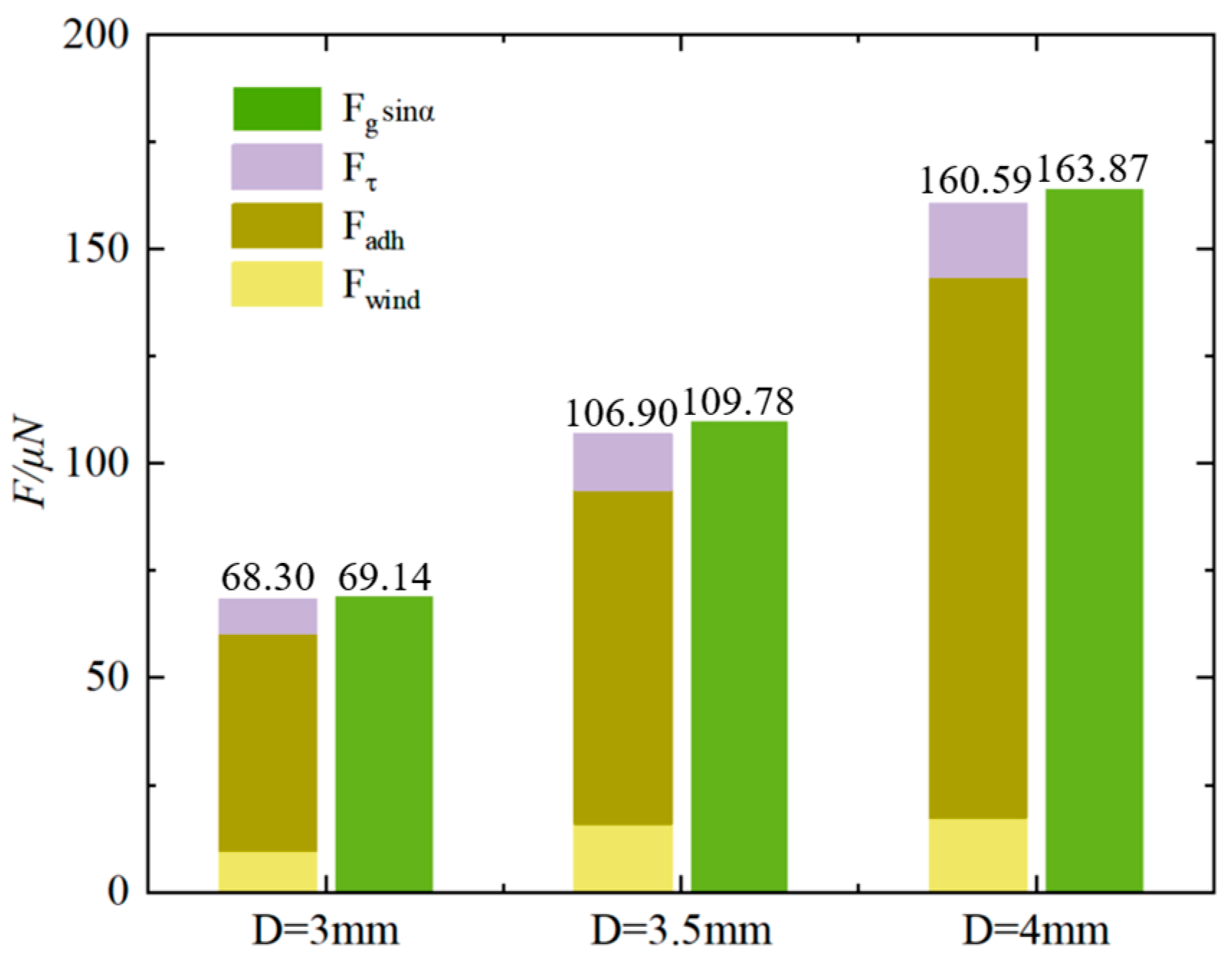

According to the analysis in Section 3.3, at the velocity of U = 3 m/s, the droplet undergoes accelerated sliding motion, with its gravitational component F_gsinα serving as the primary force propelling the motion. In contrast, the contact angle hysteresis force F_adh, viscous dissipation force F_τ, and wind traction force F_wind act as impediments. To illustrate the variations in forces acting on the droplets, Figure 17 displays a bar chart comparing the magnitude of the droplet’s gravitational component force F_gsinα with the sum of the other inhibitory forces at t = 150 ms. The force values are annotated on the bars. As depicted in the graph, the contact angle hysteresis force F_adh emerges as the most substantial force obstructing the droplet’s motion. During the accelerated sliding phase, the droplet’s gravitational component force marginally exceeds the aggregate of the contact angle hysteresis force F_adh, viscous dissipation force F_τ, and wind traction force F_wind, aligning with the findings in Section 3.3. Additionally, as the droplet size progressively increases, the disparity between the gravitational component force and the sum of the other resisting forces also grows.

3.5.2. Impact of Air Velocities

Figure 18 illustrates the variations in force experienced by the droplet with a spherical diameter of D = 3 mm under airflow velocities of U = 3 m/s, 7 m/s, and 10 m/s. The evolution of the contact angle hysteresis force F_adh is depicted in Figure 18a. At U = 3 m/s, during the accelerated sliding phase, the value of cosθ_rec − cosθ_adv increases, leading to a corresponding increase in over time. At U = 7 m/s, the droplet undergoes initial acceleration followed by a halt, with the value of cosθ_rec − cosθ_adv first rising and then falling, mirroring the trend in F_adh. At U = 10 m/s, the droplet accelerates upward, due to the impact of the airflow, and the droplet’s shape undergoes significant alterations initially, causing fluctuations in the value of cosθ_rec − cosθ_adv. However, as the upward trajectory of the droplet stabilizes, the value of F_adh also stabilizes. Figure 18b shows the wind traction force F_wind of the droplet at different airflow velocities. It is evident that, as the airflow velocity escalates, the value of F_wind also increases. At higher wind speeds, the instability in the droplet’s projected area S leads to fluctuations in the value of F_wind. Figure 18c presents the magnitude of the viscous dissipation force F_τ acting on the droplet. Given that the volume of the droplet remains constant, the value of F_τ aligns with the trend in the droplet’s speed. With the increase in airflow velocity, the droplet’s motion mode transitions from accelerated sliding to a state of force equilibrium, and eventually to accelerated climbing. In the accelerated sliding mode, the speed of the droplet progressively increases. In the force equilibrium mode, the speed initially rises and then decreases. In the accelerated climbing mode, the speed of the droplet consistently increases, with the direction opposite to that observed in the accelerated sliding mode.

As the airflow velocity changes, the dominant force influencing the droplet also changes. Figure 19 presents a bar chart comparing the dominant force with the sum of other hindering forces at different airflow velocities. The chart reveals that, at U = 3 m/s and U = 7 m/s, the gravitational component F_gsinα serves as the principal force driving the droplet. With an increase in airflow velocity, the total of other hindering forces also rises, nearing the value of F_gsinα. However, at U = 10 m/s, the leading force in the droplet shifts to F_wind, and the magnitude of F_wind surpasses the aggregate of other forces, propelling the droplet to accelerate upward in alignment with the airflow direction.

4. Conclusions

In this study, the CLSVOF method is employed to examine the behavior of droplet adhesion on the inclined windshield surface under airflow. Droplet sizes and airflow velocities are considered as key factors influencing this phenomenon. Firstly, the study focuses on exploring the variations in the direction and displacement of droplets under different air velocities. Subsequently, based on the outcomes of the numerical simulations, a classification of the droplet motion patterns is established, and the trends in the changes of droplet morphological parameters are analyzed. Finally, the forces acting on the droplets are calculated using relevant equations. The temporal evolution of these forces is investigated, and the primary forces driving droplet movement are compared with other resisting forces.

At different airflow velocities, the wind traction force F_wind acting on the droplet changes, leading to distinct modes of droplet motion: accelerated sliding at low wind speeds, equilibrium of forces, and accelerated climbing at high speeds. When the wind speed is low, the gravitational component F_gsinα predominates in the droplet’s movement, surpassing the combined effect of other impeding forces, causing the droplet to accelerate downwards along the surface. During this process, the wetting length L_d of the droplet increases, while its height H decreases slightly. The advancing contact angle θ_adv increases, and the receding contact angle θ_rec decreases, resulting in a larger difference in the cosine of the contact angles. As the size of the droplet increases, the variation in morphological parameters becomes more pronounced, and the disparity between the gravitational component F_gsinα and the sum of other hindering forces continues to grow.

In the force equilibrium mode, the velocity of the droplet initially increases and then decreases with the rise in air velocity. Throughout the movement, the wetting length L_d of the droplet diminishes while its height H escalates, resulting in a more compact droplet profile. The advancing contact angle θ_adv initially rises and then falls, whereas the receding contact angle θ_rec exhibits the opposite trend. The differences in the cosine values of the contact angle first increase and then decrease, mirroring the variation pattern of the contact angle hysteresis force F_adh.

When the airflow velocity is high, the droplet accelerates along the surface, primarily driven by wind traction force F_wind. As the velocity of the droplet increases, the value of the viscous dissipation force F_τ also rises. In this mode of motion, the wind traction force F_wind exceeds the combined value of other forces that impede the droplet’s movement. During this phase, the droplet’s interface experiences intense oscillations, leading to significant fluctuations in both the wetting length L_d and the height H of the droplet. In addition, the value of F_adh and F_wind also exhibits substantial variations because of droplet oscillation.

If the inclination angle of the windshield and the state of the liquid falling change, the behavior of the droplets will also change. Therefore, to understand the droplet motion behavior on the window surface in more detail, further studies are needed based on different droplet falling states and inclination angles of the windshield, which will be the next step in the study.
