Review

Role of Abscisic Acid, Reactive Oxygen Species, and Ca2+ Signaling in Hydrotropism—Drought Avoidance-Associated Response of Roots

by
Baris Uzilday
1,†,
Kaori Takahashi
2,†,
Akie Kobayashi
2,
Rengin Ozgur Uzilday
1,
Nobuharu Fujii
2,
Hideyuki Takahashi
2,3,* and
Ismail Turkan
1,2,4,*
1
Department of Biology, Faculty of Science, Ege University, Bornova 35100, Izmir, Turkey
2
Graduate School of Life Sciences, Tohoku University, Katahira, Sendai 980-8577, Japan
3
Research Center for Space Agriculture and Horticulture, Graduate School of Horticulture, Chiba University, Matsudo, Chiba 271-8510, Japan
4
Faculty of Agricultural Sciences and Technologies, Yasar University, University Street, No. 37-39, Bornova 35100, Izmir, Turkey
*
Authors to whom correspondence should be addressed.
†
These authors equally contributed to this work.
Plants 2024, 13(9), 1220; https://doi.org/10.3390/plants13091220
Submission received: 27 March 2024 / Revised: 23 April 2024 / Accepted: 24 April 2024 / Published: 28 April 2024
(This article belongs to the Special Issue Molecular Mechanisms Underlying Root Growth Behavior)
Browse Figures
Review Reports Versions Notes

Abstract

:
Plant roots exert hydrotropism in response to moisture gradients to avoid drought stress. The regulatory mechanism underlying hydrotropism involves novel regulators such as MIZ1 and GNOM/MIZ2 as well as abscisic acid (ABA), reactive oxygen species (ROS), and Ca2+ signaling. ABA, ROS, and Ca2+ signaling are also involved in plant responses to drought stress. Although the mechanism of moisture gradient perception remains largely unknown, the sensory apparatus has been reported to reside in the root elongation zone rather than in the root cap. In Arabidopsis roots, hydrotropism is mediated by the action of MIZ1 and ABA in the cortex of the elongation zone, the accumulation of ROS at the root curvature, and the variation in the cytosolic Ca2+ concentration in the entire root tip including the root cap and stele of the elongation zone. Moreover, root exposure to moisture gradients has been proposed to cause asymmetric ABA distribution or Ca2+ signaling, leading to the induction of the hydrotropic response. A comprehensive and detailed analysis of hydrotropism regulators and their signaling network in relation to the tissues required for their function is apparently crucial for understanding the mechanisms unique to root hydrotropism. Here, referring to studies on plant responses to drought stress, we summarize the recent findings relating to the role of ABA, ROS, and Ca2+ signaling in hydrotropism, discuss their functional sites and plausible networks, and raise some questions that need to be answered in future studies.

1. Introduction

Being sessile, plants have evolved a wide spectrum of response mechanisms and adaptations to cope with different environmental stresses. Drought is considered one of the most challenging environmental stresses, causing up to 25% of the losses in crop yield worldwide and threatening the global food supply [1]. According to the predictions of the International Water Management Institute (IWMI), one-third of the world population will be living in regions facing severe water scarcity by 2025 (IWMI Water Brief 1; https://pdf.usaid.gov/pdf_docs/Pnach595.pdf accessed on 26 March 2024). Because plants may experience too little or too much water with the accelerating effects of global climate change in the next coming decades, the control of water uptake and use in plants is extremely important [2]. Therefore, to improve the crop yield worldwide, understanding the characteristics of root growth and development under water scarcity has emerged as one of the most important tasks for plant biologists.
The loss of water from cells and the accessibility to available water are stresses that were likely imposed very early in evolution in terrestrial environments, where water was the main constraint. Hence, to maintain a favorable water balance and turgidity under water-limiting conditions, plants have developed four adaptive mechanisms: (1) drought avoidance, (2) drought tolerance, (3) drought escape, and (4) drought recovery. Among these, drought avoidance and drought tolerance are the two major mechanisms used by plants to achieve drought resistance [3].
Drought avoidance strategies aim to (1) reduce water loss by inducing rapid stomatal closure, decreasing leaf area by leaf rolling, and increasing wax accumulation on the leaf surface; and (2) enhance water storage in specific organs capable of forming fleshy water-storing tissues [4]. Moreover, to adapt to dry conditions, plants display considerable developmental plasticity in their root systems, which evolved in the sporophytes of early vascular plants during their initial expansion on land in the Early Devonian period (395–410 million years ago). The adaptations and responses of the plant root system to the variations in water availability are considered an excellent example of a drought avoidance strategy [5].
Generally, to enhance water uptake and sustain a higher water potential under water-limiting conditions, plants increase their root depth, volume, and distribution, which are mainly influenced by the depth and range of soil moisture [6]. Hence, a well-developed root system, characterized by an increased root depth, root density, and root/shoot ratio, is essential for accomplishing drought avoidance. Besides their involvement in the traits related to drought tolerance, abscisic acid (ABA), reactive oxygen species (ROS), and calcium (Ca2+) play roles in root growth and root system architecture under drought stress [7].
Even under normal conditions, the soil water availability affects the growth of the root system as a whole. In general, the water content varies among the different areas of soil, with some areas having more water than others [8,9,10], and plant roots respond to this variation in soil water content by altering their growth rate and direction. The ability of plants to direct their roots to grow toward water in the soil is called hydrotropism, a directed root growth response described in the early 19th century [11]. Hydrotropism involves root bending, owing to differential growth, and guides the roots towards areas with a higher water potential in a heterogenous soil environment.
The mechanisms underlying root hydrotropism have been investigated in recent years, and advances in genomic tools as well as the increased availability of mutants have provided valuable insights into some of the important aspects of the hydrotropic response, which include the perception and signal transduction of moisture gradients. One of the major breakthroughs in the field of root hydrotropism was achieved using Arabidopsis thaliana mutants defective in ABA synthesis or signaling; these mutants exhibited a reduced rate of the hydrotropic response, indicating that ABA signaling is essential for hydrotropism [12]. Approximately 14 years later, Krieger et al. [13] reported that ROS mediate two different directed growth responses of roots, i.e., gravitropism and hydrotropism, and demonstrated the role of hydrogen peroxide (H2O2) as a secondary messenger in hydrotropism. Additionally, changes in the free Ca2+ concentration in the cytosol have also been implicated in root hydrotropism [14,15,16]. All of these findings signify an interplay between ABA, ROS, and [Ca2+] fluxes during hydrotropism, a drought avoidance response in plants. Although ROS signaling seems to be linked to ABA and [Ca2+] fluxes in general, the investigation of the role of ROS and ROS-mediated signaling in the hydrotropic response of roots is of critical importance. The cells and/or tissues involved in these signaling processes and the apparatus involved in sensing the moisture gradients (hydrostimulation) also need to be clarified.
Throughout this review, we evaluate the roles of ABA, ROS, and Ca2+ signaling in the hydrotropic response of different plant species. We also present new perspectives and discuss the questions that need to be answered in the future to better understand the mechanisms of root hydrotropism.

2. Water Deficiency Perception, ABA Core Signaling Activation, and Their Relationship with Root Hydrotropism

To activate signaling networks and initiate suitable transcriptional regulation in response to water-deficient conditions, plants must first perceive the deficiency in soil water in the roots. However, no specific drought stress receptors have been reported in plants to date. In yeast, studies on the osmotic stress response revealed the high osmolarity glycerol (HOG) pathway, which relies on the histidine kinase Sln1, an osmosensor that monitors changes in the cell turgor pressure [17]. HOG activates a cascade of phosphorylation events via mitogen-activated protein kinases (MAPKs), which consequently induce the transcription of glycerol biosynthesis genes [18]. A similar signal perception pathway also exists in plants [19], as indicated by studies on Arabidopsis thaliana. The AtHK1 gene, which is homologous to Sln1, was expressed in Arabidopsis roots under osmotic stress [20]. Transgenic Arabidopsis plants overexpressing AtHK1 were drought tolerant, whereas athk1 mutants were more sensitive to drought [21]. It has been suggested that AtHK1 positively regulates ABA signaling rather than acting as an osmosensor, because ABA sensitivity was affected in these plants. This implies that the osmosensing pathway in Arabidopsis is different from that in yeast. The role of AtHK1 in root growth regulation was also reported in poplar [22], where the AtHK1 protein activated a phosphorelay pathway potentially involved in osmotic stress sensing [23]. In our study, no difference could be detected between the hydrotropic response of the athk1 mutant roots and that of the wild-type roots (Hiroki Takahashi et al., unpublished data). A question therefore arises regarding the role of AtHK1 in the hydrotropic response of Arabidopsis roots.
An essential part of drought perception by roots is regulated by plant hormones, predominantly ABA, and the biosynthesis of ABA in roots is well documented as an early response to water deficits [24]. The level of ABA in plants during vegetative growth is tightly controlled by a balance between its biosynthesis and catabolism to mediate a response to environmental stresses such as drought, high salt, and low temperatures, all of which impose cellular osmotic stress [25,26]. ABA regulates the expression of various stress-responsive genes including those encoding LEA proteins, dehydrins, and other protective proteins [27], and induces processes involved in the maintenance of cellular turgor and the synthesis of osmoprotectants and antioxidant enzymes [28].
ABA acts as a long-distance signal under water-limiting conditions, conveying the onset of stress from roots to shoots, which eventually results in water-saving responses such as stomatal closure and reduced leaf expansion, both of which are considered drought avoidance responses [29]. ABA is also involved in robust root growth and other architectural modifications under drought stress [30]. Root growth parameters, such as length, weight, volume, and density, increase substantially under drought stress, especially in dry areas, to maintain sufficient water potential in plant tissues. Hence, at the whole-plant level, ABA levels are slightly elevated under mild water stress to maintain root growth but inhibit shoot growth, leading to an increased root-to-shoot ratio, which has been used as a criterion for drought resistance [31,32]. On the other hand, high levels of ABA can inhibit root growth to conserve energy for the induction of defense mechanisms. This suggests that ABA levels act as a switch to transition from drought avoidance to drought tolerance, as shown in Figure 1; Arabidopsis plants display robust root growth and low ABA levels under mild drought stress and reduced root growth and high ABA levels under severe drought stress [33,34].
Thus, the above-mentioned drought avoidance responses, including stomatal closure, reduced leaf area, and robust root growth, are regulated by the ABA core signaling pathway, which comprises the following three factors involved in the perception and relay of the ABA signal: PYR/PYL/RCAR family proteins (ABA receptor), type 2C protein phosphatases (PP2Cs; negative regulator), and class III SNF1-related protein kinases 2 (SnRK2s; positive regulator) [35]. The ABA core signaling cascade is initiated when ABA binds to PYR/PYL/RCAR proteins. This results in the inhibition of PP2Cs through the formation of the ABA–PYR/PYL/RCAR–PP2Cs complexes, which activates downstream ABA signaling, i.e., the accumulation of phosphorylated SnRK2s, phosphorylation of ABA-responsive element binding factors, and ABA-related gene expression for appropriate cellular responses [36]. Hence, SnRK2s play a positive regulatory role in the drought tolerance of Arabidopsis roots. Accordingly, the transgenic Arabidopsis plants expressing 35S::SnRK2C-GFP displayed higher overall drought tolerance than the control plants; ABA activated the SnRK2 member AAPK in the guard cells of Vicia faba leaves, causing stomatal closing; and the Arabidopsis snrk2.6 (ost1) mutant was defective in ABA-induced stomatal closure [37,38].
Using the ABA biosynthesis mutant aba1-1, ABA signal transduction mutant abi2-1, and a sextuple receptor mutant, Takahashi et al. [12] and Antoni et al. [35] conceivably demonstrated that, as in the case of stomatal closure, the process of hydrotropism also requires core ABA signaling in Arabidopsis. Mutants defective in ABA biosynthesis or signaling exhibited a reduced rate of hydrotropic response. During the hydrotropic response, Arabidopsis SnRK2 protein kinases function as positive regulators of the ABA signaling pathway [39,40]. The snrk2.2 snrk2.3 double mutant showed ABA-insensitive root growth phenotypes [41], indicating that both SnRK2.2 and SnRK2.3 are involved in ABA signaling and are regulated by ABA. Additionally, the snrk2.2 snrk2.3 snrk2.6 triple mutant showed severe phenotypes consistent with impairments in ABA signaling and water stress responses [39,42]. Moreover, the snrk2.2 snrk2.3 double mutant exhibited a reduced hydrotropic response [43].
The above studies suggest that ABA is a regulator responsible for root hydrotropism, which is accompanied by differential osmotic stress to the roots in the presence of moisture gradients. A mathematical model suggested that the asymmetrical redistribution of ABA likely occurs between the convex and concave sides of the elongation zone of Arabidopsis roots in response to moisture gradients [43]. Because ABA maintains a higher rate of cell expansion under water stress conditions [31,32], the gradient of ABA could be responsible for differential root growth during the hydrotropic response. In addition, the application of exogenous ABA could reverse the decreased hydrotropic response of the roots in the aba1-1 mutant, as mentioned before. We presume that exogenous ABA perturbs the formation of an ABA gradient across the root. Accordingly, the role of an ABA gradient in the hydrotropic response needs further investigation. On the other hand, the receptor turnover is an important aspect of hormone signaling, which is also true for ABA receptors on the membranes. Previously, the RING-type E3 ubiquitin ligase RSL1 was shown to interact with the ABA receptors PYL4 and PYR1 at the plasma membrane [44]. Additionally, RSL1 overexpression lines exhibited reduced ABA sensitivity, whereas rsl1 RNA interference (RNAi) lines showed enhanced sensitivity to ABA [44]. Similarly, a recent study showed that ALG2-INTERACTING PROTEIN-X (ALIX), an endosomal sorting complex required for transport (ESCRT-III)-associated protein, directly binds to and degrades ABA receptors in late endosomes. While ABA hypersensitivity was reported in the alix-1 knockdown mutant, alix-1 plants with an impaired PYR/PYL/RCAR receptor did not exhibit this phenotype [45]. Interestingly, both ionic and nonionic hyperosmotic treatments induced clathrin-mediated endocytosis and simultaneously attenuated exocytosis in root meristematic cells [46]. Moreover, hydrotropic stimulation or exogenous ABA application induce PLDζ2 expression in the root tip, and pldζ2 plants showed delays in gravitropic and hydrotropic responses [47], which suggests that phosphatidic acid-dependent endocytosis is involved in root tropisms. PLDζ2-induced clathrin-mediated endocytosis also plays a role in the internalization and degradation of the auxin efflux carrier PIN2 [48]. Whether the changes in ABA receptor turnover on either side of the root are similar to those in the PIN2 turnover during hydrotropism deserves further investigation.
Kobayashi et al. [49] and Miyazawa et al. [50] identified MIZU-KUSSEI 1 (MIZ1) and GNOM/MIZ2, respectively, both of which are essential for hydrotropism in Arabidopsis roots. MIZ1 encodes a protein with an unknown function, which is conserved in the genome of terrestrial plants but not that of algae [49], and GNOM/MIZ2 encodes an ADP-ribosylation factor-type G (ARF-GEF) protein that regulates vesicle trafficking [50]. The roots of both miz1 and miz2 mutants are impaired in the hydrotropic response but exhibit a normal gravitropic response. Thus, the functions of MIZ1 and GNOM/MIZ2 are unique to hydrotropism, and an analysis of these proteins will likely lead to the discovery of a novel mechanism underlying root hydrotropism. Importantly, exogenous ABA application upregulated MIZ1 expression in Arabidopsis roots [51]. Although MIZ1 was expressed in a broad range of tissues, including the root cap, cortex, and epidermal layers, in the root apical meristem and elongation zone, the cortex-specific expression of MIZ1 and SnRK2.2 in the miz1 single mutant and srnk2.2 srnk2.3 double mutant, respectively, could rescue the hydrotropic response of roots [43]. These results suggest that the differential growth of the cortex is a driving force of hydrotropism. Although the molecular crosstalk between MIZ1 and ABA remains an open question, the results led us to assume that ABA biosynthesis and signaling activated under drought conditions control MIZ1 expression for inducing root hydrotropism. Also, one could postulate that an asymmetric increase in the ABA level under moisture gradients results in differential MIZ1 expression in the root elongation zone. This possibility needs to be studied, because differential MIZ1 expression in the hydrotropically responding roots has not been observed [52]. The importance of cortex-controlled root hydrotropism is also supported by the fact that the removal or ablation of the root cap disrupted gravitropism but not hydrotropism [43], as discussed below in Section 4. Thus, it is possible that the apparatus for sensing moisture gradients exists in the root cortex of elongation zone.

3. Does ROS Signaling Participate in Root Hydrotropism?

A growing body of evidence shows that the generation of ROS is one of the most common plant responses to different environmental cues, acting as a hub at which various signaling pathways converge [53]. The rapid production of ROS is a common plant response to biotic and abiotic stresses, and thus is considered a basis for unifying signaling events [53,54]. ROS production has also been observed previously during normal root growth and during root tropic responses in maize and Arabidopsis [13,55].
ROS have been implicated in both the environmental responses and related developmental processes in roots, and the roles of the respiratory burst oxidase homologs RBOHC, RBOHD, and RBOHF have been established. The RBOH homologs encode plasma membrane-localized NADPH oxidases, which are responsible for the production of apoplastic O2−. O2− is short-lived and is spontaneously or enzymatically (by superoxide dismutase) converted to hydrogen peroxide (H2O2), which mediates further ROS signaling. According to Krieger at al. [13], the directed growth of roots towards water is negatively regulated by RBOHC activity. Assays exposing the rbohc mutant to a low water potential demonstrated that the hydrotropic response of the rbohc roots was more pronounced than that of the wild-type roots. The enhanced hydrotropic bending in the rbohc roots was attributed to decreased H2O2 levels in the elongation zone. The rbohd mutant with lower H2O2 levels in whole seedlings but wild-type H2O2 levels in the root apices showed a comparable hydrotropic response to wild-type plants. These results indicate that RBOHC produces O2−, which is subsequently converted into H2O2, and that the elevated H2O2 level reduces hydrotropic bending. Additionally, the transcript abundance of RBOHC was greater than that of RBOHD and RBOHF in the elongation zone (Figure 2).
Although an asymmetric ROS distribution was detected between the convex and concave sides of the root elongation zone during gravitropism, this phenomenon was not observed in the distal or central elongation zone during hydrotropism [13]. It should be noted that the mentioned study [13] used a rhodamine-based fluorescent probe (dihydrorhodamine-123 [DHR]), which is the most sensitive to H2O2 [58] and is generally used to monitor cytosolic ROS levels [59]. Therefore, assays with DHR might not reflect the level of apoplastic ROS, which is generally produced by NADPH oxidases in response to environmental stimuli. On the other hand, analysis using diphenylene iodonium (DPI), a NADPH oxidase inhibitor, revealed that the root curvature increases during hydrotropism and decreases during gravitropism in the DPI-treated roots [13]. Moreover, the treatment of roots with an antioxidant such as ascorbate increases the curvature in hydrostimulated roots but, in turn, inhibits gravitropism. These findings suggest that NADPH oxidases and/or ROS do not play a role in the hydrotropic bending of Arabidopsis roots. Moreover, the root curvature accelerated by the modulation of ROS levels can be explained by an inhibition of the response to gravistimulation, which would enable the hydrostimulated roots to overcome gravitropism.
It has been suggested that autophagy is involved in the degradation of amyloplasts in the columella cells of hydrotropically stimulated roots, which could reduce gravitropism and thereby enhance hydrotropism [60,61,62]. Amyloplast degradation due to hydrotropic stimulation was observed in hydrotropic mutants such as miz1, nhr1, and ahr1, but it did not alter their hydrotropic response [62]. This result supports the idea that reduced gravitropism enhances the hydrotropic response; the ahydrotropic or altered hydrotropic responses of these mutants are independent of their gravitropism-interfered response. Interestingly, however, in plants expressing GFP-ATG8a, autophagosomes accumulated in the root curvature 2 h after hydrostimulation. Remarkably, several atg mutants showed an impaired hydrotropic response, indicating that autophagy is required for root bending [62]. A H2O2 biosensor (Hyper) showed that H2O2 accumulated in the root curvature at a similar rate as the autophagosomes during the hydrotropic response. The inhibition of the peroxidase and RBOH activities affected the root curvature either negatively or positively, indicating that low levels of ROS accelerate the hydrotropic response. Jiménez-Nopala et al. [62] hypothesized that ROS’ regulation of autophagy is involved in cell-wall-mediated differential growth in the root elongation zone and is required for the induction of hydrotropism. However, it should be noted that the chemical inhibition of RBOH decreases the root growth rate, and Hyper is a cytosolic H2O2 reporter that does not fully represent the apoplastic ROS levels.

4. How Does Ca2+ Signaling Function in Root Hydrotropism?

The evolutionarily conserved phenomenon of increased cytosolic Ca2+ in response to diverse environmental signals puts Ca2+ among the most important second messengers [63]. A low Ca2+ level (nanomolar levels) in the cytoplasm and high free Ca2+ level (millimolar levels) in the endoplasmic reticulum (ER), vacuoles, other organelles, and cell walls are tightly regulated by a system of cellular membrane-localized pumps, channels, or transporters. Hence, the sensitivity of cells to various environmental stimuli is dependent on their ability to sequester and utilize Ca2+ from internal stores [64]. Ca2+-sensing mechanisms that maintain specificity in terms of signal transmission and response generation have been an intense area of research recently. The “calcium signature”, the kinetics and magnitude of the Ca2+ concentration, varies with signals and possibly contributes to the specificity of responses [64]. Ca2+-sensing and -binding proteins further specify and amplify these signals and are involved in signal transmission and relay [65]. Some of these proteins with enzymatic activity can amplify the signals on their own, whereas other proteins with no enzymatic activity amplify and relay the signals by interacting with other proteins possessing enzymatic or transcriptional activity. Plant Ca2+ sensor proteins either act as sensor responders or sensor relay proteins [66]. Sensor responder proteins such as Ca2+-dependent protein kinases (CDPKs) perform both sensing and response functions. On the other hand, sensor relay proteins such as calcineurin B-like proteins (CBLs) and CBL-interacting protein kinases (CIPKs) bind effectively to Ca2+ ions, undergo conformational changes, and then interact with specific downstream proteins with amplification and relay functions usually via phosphorylation and dephosphorylation [67].
Calreticulin (CRT), a low-affinity high-capacity Ca2+-binding protein that exists in the ER lumen, acts as a calcium-binding peptide (CBP) to specifically increase Ca2+ storage in the nucleus and ER. Additionally, CRT also affects intracellular Ca2+ homoeostasis by modulating the storage, release, and transport of ER-localized Ca2+ [67]. Calcineurin, a Ca2+-calmodulin (CaM)-dependent serine–threonine phosphatase, has been implicated in various signaling events in cells. Accordingly, calcineurin modulates cellular processes in response to the secondary messenger Ca2+.
Tsou et al. [68] reported that plants expressing the CBP domain of CRT exhibited better survival under drought or salinity stress due to increased Ca2+ levels and exhibited greater root growth than the wild-type. CIPK6, a member of the CIPK gene family, was induced in CBP-expressing plants even under normal conditions. The loss of function of CIPK6 abolished the stress tolerance of CBP-overexpressing transgenic plants. This demonstrates that Ca2+ stored in the ER can directly participate in signal transduction to alter gene expression.
It has been suggested that Ca2+ influx or the cytosolic Ca2+ concentration plays a role in the induction of gravitropism, but no direct evidence in support of the Ca2+-mediated regulation of gravitropism has been shown to date [69,70]. On the other hand, the hydrotropic response of agravitropic ageotropum pea roots was shown to be inhibited by the application of a calcium chelator, ethylene glycol-bis-(β-aminoethyl ether)-N,N,N′,N′-tetraacetic acid (EGTA), or a Ca2+ channel blocker [14]. The application of a Ca2+ ionophore, A23187, accelerated the hydrotropic response of pea roots or abolished the EGTA-mediated inhibition of hydrotropism [14]. Recently, Shkolnik et al. [15] reported that cytosolic Ca2+ acts as a slow and long-distance signal in the hydrotropic response. Upon hydrostimulation, a shootward Ca2+ signal travels from the lateral root cap to the elongation zone through the root phloem. This signal becomes distributed asymmetrically upon reaching the elongation zone, where a stronger accumulation of Ca2+ is observed at the convex side of the root [15]. The elevation of cytosolic Ca2+ and the hydrotropic response were inhibited in roots treated with a chelator (BAPTA-AM), while treatment with a Ca2+ ionophore (Br-A23187) enhanced root hydrotropism [15]. MIZ1, an essential molecule for hydrotropism, localizes on the ER surface [71]. Interestingly, the ER-localized Ca2+-ATPase pump ECA1 regulates cytosolic Ca2+ levels in coordination with MIZ1, and the root curvature is enhanced in the absence of functional ECA1, because of an increase in the cytosolic Ca2+ concentration. MIZ1 directly interacts with ECA1 and negatively suppresses ECA1 function, causing an increase in the cytosolic Ca2+ levels [15]. Shkolnik et al. [15] consider that an increase in the cytosolic Ca2+ level in the lateral root cap is required for hydrotropic bending at the elongation zone. These findings suggest the importance of cytosolic Ca2+ in the induction of root hydrotropism.
We also observed a similar transition in the cytosolic Ca2+ levels following hydrostimulation in Arabidopsis roots, although it was difficult to detect the asymmetry in the Ca2+ distribution in our system (Figure 3). This difference could be due to the non-tagged Yellow Cameleon (YC) 3.6 used in our study, while Shkolnik et al. [15] used the nuclear export signal (NEC)-tagged YC3.6 driven by the UBQ10 promoter for reducing background signals in the cytosol. Nevertheless, in the split-agar assay, the hydrotropic curvature of the Arabidopsis roots became visible 6–12 h after the start of hydrostimulation, reached a peak at 36 h after hydrostimulation, and slightly decreased thereafter (Figure 3A). A reduction in the root curvature at a later stage of the assay was caused by the strengthening of the gravitropic response as the roots deviated from the plumb line in response to a water gradient. The analysis using YC3.6 showed that the cytosolic Ca2+ level in the root cap (including the lateral root cap) started increasing at 6–12 h and continued to increase until 36 h after hydrostimulation (Figure 3B,C). The Ca2+ increase appeared to expand to other tissues a little later. Relatively, a strong signal of a higher Ca2+ level was observed in the lateral root cap. The stele of the elongation zone showed a remarkable increase in cytosolic Ca2+ 36–48 h after hydrostimulation (Figure 3B,D). The systemic treatment of Arabidopsis roots with osmotic stress increased the cytosolic Ca2+ level in both the root cap and entire root proper (intensively in the stele) as observed in the hydrostimulated roots (Figure 4). Considering that roots asymmetrically perceive osmotic stress in the presence of moisture gradients, the asymmetry of the cytosolic Ca2+ level and its relationship with MIZ1 function observed by Shkolnik et al. [15] in hydrostimulated roots could explain an essential part of the signaling system for hydrotropism. However, the sensory cells/tissues that perceive moisture gradients for the induction of the hydrotropic response need to be investigated. The de-tipping of roots with precise and careful surgery or laser ablation of the root tip suppressed gravitropism but did not perturb hydrotropism in Arabidopsis [43]. In rice and cucumber seedlings, de-tipping accelerated the hydrotropic response of roots, probably by inhibiting the gravitropic response [72,73]. It appears that long-distance Ca2+ signaling due to hydrostimulation occurs even in de-tipped roots, although a part of the lateral root cap remains intact in some of these roots (Figure 5). We cannot rule out a possibility that hydrostimulation or osmotic stress causes a Ca2+ increase in the elongation zone independently of the root cap. Additionally, a previous study showed that MIZ1 functions in the cortex of the elongation zone to induce hydrotropism [43]. A question arises as to how a change in the cytosolic Ca2+ concentration in the root cap or root-cap-driven Ca2+ signaling is related to MIZ1 function in the cortex. It is therefore important to examine whether the asymmetric perception of water stress in the presence of moisture gradients occurs and results in asymmetrical Ca2+ signaling in the root elongation zone itself. Furthermore, the participation of Ca2+ channel proteins in the hydrotropic response of Arabidopsis roots was demonstrated in osca1 mutants, but evidence suggests their importance at the plasma membrane [74]. It is probable that the ER- and MIZ1-mediated regulation of the cytosolic Ca2+ concentration is influenced by Ca2+ influx from the apoplast.
In addition, Tanaka-Takada et al. [16] showed that plasma membrane-associated cation-binding protein (PCaP1) plays a role in hydrotropism. The N-terminal end of PCaP1 can bind to phosphatidylinositol diphosphates and Ca2+ via a CaM complex. PCaP1 binds to phosphatidylinositol diphosphates at low cytosolic Ca2+ levels, and phosphatidylinositol diphosphates are replaced with Ca2+ at high Ca2+ levels. The pcap1 null mutants exhibited decreased root bending in response to hydrostimulation; however, this phenotype was rescued when PCaP1 was expressed under the control of an endodermis-specific promoter in the pcap1 background. PCaP1 likely functions in the endodermis to facilitate the hydrotropic response. Thus, Ca2+ signaling could be a crucial player in hydrotropism, although Ca2+ signaling across tissues and its relation to MIZ1 regulation in the cortex need to be clarified.

5. Crosstalk among ROS, Ca2+, and ABA Signaling Pathways

The literature discussed above indicates that ROS, Ca2+, and ABA play regulatory roles in the hydrotropic response. However, it is still difficult to propose a model that explains how these three factors interact during hydrotropism, since the dynamics of ROS, Ca2+, and ABA have never been tested in a single study. However, thus far, both the ROS-induced Ca2+ wave and Ca2+-induced ROS wave have been well established as mechanisms for long-distance signal transduction [76]. For example, salt stress sensed at the tip of Arabidopsis roots triggers a Ca2+ wave, which is then propagated through the endodermis and cortex, indicating that signal transduction exhibits cell type specificity [77]. It has been demonstrated that Ca2+ influx into the cytosol is dependent on the vacuolar ion channel TWO PORE CHANELL1 (TPC1); interestingly, TPC1 is sensitive to H2O2 [78]. On the other hand, NADPH oxidases are activated by Ca2+ either directly via their EF-hand motif or indirectly via CDPKs [79]. The sensitivity of TPC1 to H2O2 and the induction of NADPH oxidase activity via Ca2+ suggests a feed-forward mechanism between ROS and Ca2+ that can amplify and transduce the signal through plant organs. The rate of Ca2+ waves decreased from 396 µm s−1 to 15.5 µm s−1 in the tpc1-2 mutant and to 73 µm s−1 in rbohd mutants [80]. Hence, ROS wave-dependent systemic signaling depends mostly on vacuolar Ca2+ release and the subsequent signal amplification. It would be interesting to test the hydrotropic response of tpc1-2 mutants to ascertain whether ROS and Ca2+ waves play a role in hydrotropic root bending.
Our current state of knowledge, based on the literature, suggests that RBOHs are not involved in the hydrotropic response; on the contrary, the inhibition of RBOHs enhances the rate of root bending. Therefore, RBOH-mediated ROS production is activated during hydrotropism. Is this a side effect of the increase in the cytosolic Ca2+ concentration during hydrotropism? Does RBOH activity slow down the hydrotropic response by changing the cell wall structure (stiffening or loosening) as a side effect? These questions deserve further scrutiny.

6. Commonalities and Differences between Root Hydrotropism and Leaf Stomatal Movement

It appears that the stomatal and hydrotropic responses share similar mechanisms of stimuli perception and signal transduction. The number of cells (even tissue types) to be coordinated might differ between the two responses, being higher in root hydrotropism; however, ABA is required for both these responses, and ABA perception and signal transduction utilize common circuits (Figure 6). In addition, the release of Ca2+ from cellular storage and the involvement of ROS are common to both events. The rbohd rbohf double mutant exhibited reduced sensitivity to ABA and consequently less ABA-induced inhibition of root growth than the wild-type [81]. Moreover, these rbohd and rbohf mutants exhibited defects in ROS generation, an increase in the cytosolic Ca2+ concentration, and the activation of Ca2+-permeable channels in response to ABA. Treatment with H2O2 activated the Ca2+ current in the mutant roots, indicating the involvement of RBOHs in the cytosolic Ca2+ increase. Hence, ROS, Ca2+, and ABA are mutually involved in stomatal closure and root hydrotropism. However, the phenomenon of hydrotropism is complex because of the spatial distribution of these events in different root tissues and the amplitude of signals that regulate root growth under an osmotic gradient. Also, the stomatal response occurs after the osmotic regulation of individual cells, whereas the hydrotropic response is caused by the differential growth of a limited number of cells.

7. Concluding Remarks

Numerous studies have been conducted on the role of ABA and Ca2+ flux in the hydrotropic response of roots. Although the available information suggests that ROS is a negative regulator of the hydrotropic response, its involvement in root hydrotropism with respect to the regulation of the Ca2+ and ABA responses remains obscure. The elucidation of the molecular network of ABA, ROS, and Ca2+ signaling, together with the functions of MIZ1 and GNOM/MIZ2, will shed a light on root hydrotropism. As discussed above, MIZ1 and ABA function in the cortex; ROS accumulation is observed in the root at the point of the curve; a change in the cytosolic Ca2+ level occurs in the root cap and stele of the elongation zone; and the plasma membrane-associated Ca2+-binding protein in the endodermis is involved in hydrotropism. The signaling network that controls hydrotropism could be clarified by understanding (1) the roles played by cells/tissues in the function of each regulator, and (2) the relationships among these regulators. To understand the sensory mechanism of hydrostimulation, we may not need to consider a particular apparatus if the asymmetry in the ABA distribution and/or cytosolic Ca2+ concentration is established as a result of the differential perception of water stress by the roots in the presence of moisture gradients. However, specific regulators such as a certain type of ion channel or signaling network could play a role in hydrotropism, since MIZ1 and GNOM/MIZ2 are indispensable for hydrotropism in Arabidopsis roots. We did not describe the details here, but it was shown that cytokinin plays an important role in root hydrotropism [82,83]. Interestingly, the asymmetric distribution of cytokinin occurred in hydrotropically stimulated roots and caused differential cell division in the meristematic zone [83]. As discussed in the present paper, the regulation of hydrotropism by cytokinin also needs to be further studied in relation to other regulators responsible for hydrotropism or differential cell expansion in hydrotropically responding roots. Additionally, differences in the regulatory mechanism of hydrotropism among species should be investigated in future studies. We have learned that mechanisms underlying root hydrotropism are quite unique to this process compared with other tropisms such as gravitropism, although root phototropism partially shares the regulatory mechanism with hydrotropism [84]. Answering the questions raised in this review will help to further understand the sensory and signaling mechanisms underlying the hydrotropic response of roots.

Funding

This work was supported by a Grant-in-Aid for Scientific Research on Innovative Areas (no. JP18H04962, awarded to H.T.); JSPS KAKENHI Grant Number JP26870057 and Tohoku University Center for Gender Equality Promotion (TUMUG) Support Project (Project to Promote Gender Equality and Female Researchers, awarded to A.K.); and IAAR Research Support Program, Chiba University, Japan.

Data Availability Statement

The data presented in this article are available from the corresponding authors upon request.

Acknowledgments

We thank Simon Gilroy at the University of Wisconsin–Madison, USA, for providing the seeds of Yellow Cameleon 3.6. The first draft of this manuscript was written when Ismail Turkan (I.T.) served at Tohoku University, Japan, from 1 August to 31 December 2018.

Conflicts of Interest

No conflict of interest declared.

References

  1. Leng, G.; Hall, J. Crop yield sensitivity of global major agricultural countries to droughts and the projected changes in the future. Sci. Total Environ. 2019, 654, 811–821. [Google Scholar] [CrossRef] [PubMed]
  2. Jasechko, S. Plants turn on the tap. Nat. Clim. Change 2018, 8, 562. [Google Scholar] [CrossRef]
  3. Fang, Y.; Xiong, L. General mechanisms of drought response and their application in drought resistance improvement in plants. Cell. Mol. Life Sci. 2015, 72, 673–689. [Google Scholar] [CrossRef] [PubMed]
  4. Yue, B.; Xue, W.; Xiong, L.; Yu, X.; Luo, L.; Cui, K.; Jin, D.; Xing, Y.; Zhang, Q. Genetic basis of drought resistance at reproductive stage in rice: Separation of drought tolerance from drought avoidance. Genetics 2006, 172, 1213–1228. [Google Scholar] [CrossRef] [PubMed]
  5. Ilyas, M.; Nisar, M.; Khan, N.; Hazrat, A.; Khan, A.H.; Hayat, K.; Fahad, S.; Khan, A.; Ullah, A. Drought tolerance strategies in plants: A mechanistic approach. J. Plant Growth Regul. 2021, 40, 926–944. [Google Scholar] [CrossRef]
  6. Nippert, J.B.; Holdo, R.M. Challenging the maximum rooting depth paradigm in grasslands and savannas. Funct. Ecol. 2015, 29, 739–745. [Google Scholar] [CrossRef]
  7. Mittler, R.; Blumwald, E. The roles of ROS and ABA in systemic acquired acclimation. Plant Cell 2015, 27, 64–70. [Google Scholar] [CrossRef] [PubMed]
  8. Harris, J.M. Abscisic acid: Hidden architect of root system structure. Plants 2015, 4, 548–572. [Google Scholar] [CrossRef] [PubMed]
  9. Puertolas, J.; Alcobendas, R.; Alarcón, J.J.; Dodd, I.C. Long-distance abscisic acid signalling under different vertical soil moisture gradients depends on bulk root water potential and average soil water content in the root zone. Plant Cell Environ. 2013, 36, 1465–1475. [Google Scholar] [CrossRef]
  10. Puértolas, J.; Conesa, M.R.; Ballester, C.; Dodd, I.C. Local root abscisic acid (ABA) accumulation depends on the spatial distribution of soil moisture in potato: Implications for ABA signalling under heterogeneous soil drying. J. Exp. Bot. 2015, 66, 2325–2334. [Google Scholar] [CrossRef]
  11. Knight, T.A. On the causes which influence the direction of the growth of roots. Philos. Trans. R. Soc. Lond. B Biol. Sci. 1811, 2, 209–219. [Google Scholar] [CrossRef]
  12. Takahashi, N.; Goto, N.; Okada, K.; Takahashi, H. Hydrotropism in abscisic acid, wavy, and gravitropic mutants of Arabidopsis thaliana. Planta 2002, 216, 203–211. [Google Scholar] [CrossRef] [PubMed]
  13. Krieger, G.; Shkolnik, D.; Miller, G.; Fromm, H. Reactive oxygen species tune root tropic responses. Plant Physiol. 2016, 172, 1209–1220. [Google Scholar] [CrossRef] [PubMed]
  14. Takano, M.; Takahashi, H.; Suge, H. Calcium requirement for the induction of hydrotropism and enhancement of calcium-induced curvature by water stress in primary roots of pea. Plant Cell Physiol. 1997, 38, 385–391. [Google Scholar] [CrossRef]
  15. Shkolnik, D.; Nuriel, R.; Bonza, M.C.; Costa, A.; Fromm, H. MIZ1 regulates ECA1 to generate a slow, long-distance phloem-transmitted Ca2+ signal essential for root water tracking in Arabidopsis. Proc. Natl. Acad. Sci. USA 2018, 115, 8031–8036. [Google Scholar] [CrossRef] [PubMed]
  16. Tanaka-Takada, N.; Kobayashi, A.; Takahashi, H.; Kamiya, T.; Kinoshita, T.; Maeshima, M. Plasma membrane-associated Ca2+-binding protein PCaP1 is involved in root hydrotropism of Arabidopsis thaliana. Plant Cell Physiol. 2019, 60, 1331–1341. [Google Scholar] [CrossRef] [PubMed]
  17. Saito, H.; Tatebayashi, K. Regulation of the osmoregulatory HOG MAPK cascade in yeast. JB-Minireview—Functions of MAP Kinase Cascades. J. Biochem. 2004, 136, 267–272. [Google Scholar] [CrossRef]
  18. Reiser, V.; Raitt, D.C.; Saito, H. Yeast osmosensor Sln1 and plant cytokinin receptor Cre1 respond to changes in turgor pressure. J. Cell Biol. 2003, 161, 1035–1040. [Google Scholar] [CrossRef] [PubMed]
  19. Jogawat, A.; Vadassery, J.; Verma, N.; Oelmüller, R.; Dua, M.; Nevo, E.; Johri, A.K. PiHOG1, a stress regulator MAP kinase from the root endophyte fungus Piriformospora indica, confers salinity stress tolerance in rice plants. Sci. Rep. 2016, 6, 36765. [Google Scholar] [CrossRef]
  20. Urao, T.; Yakubov, B.; Satoh, R.; Yamaguchi-Shinozaki, K.; Seki, M.; Hirayama, T.; Shinozaki, K. A transmembrane hybrid-type histidine kinase in Arabidopsis functions as an osmosensor. Plant Cell 1999, 11, 1743–1754. [Google Scholar] [CrossRef]
  21. Tran, L.S.P.; Urao, T.; Qin, F.; Maruyama, K.; Kakimoto, T.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Functional analysis of AHK1/ATHK1 and cytokinin receptor histidine kinases in response to abscisic acid, drought, and salt stress in Arabidopsis. Proc. Natl. Acad. Sci. USA 2007, 104, 20623–20628. [Google Scholar] [CrossRef] [PubMed]
  22. Héricourt, F.; Chefdor, F.; Bertheau, L.; Tanigawa, M.; Maeda, T.; Guirimand, G.; Courdavault, V.; Larcher, M.; Depierreux, C.; Bénédetti, H.; et al. Characterization of histidine-aspartate kinase HK1 and identification of histidine phosphotransfer proteins as potential partners in a Populus multistep phosphorelay. Physiol. Plant. 2013, 149, 188–199. [Google Scholar] [CrossRef] [PubMed]
  23. Chefdor, F.; Bénédetti, H.; Depierreux, C.; Delmotte, F.; Morabito, D.; Carpin, S. Osmotic stress sensing in Populus: Components identification of a phosphorelay system. FEBS Lett. 2006, 580, 77–81. [Google Scholar] [CrossRef] [PubMed]
  24. Schachtman, D.P.; Goodger, J.Q. Chemical root to shoot signaling under drought. Trends Plant Sci. 2008, 13, 281–287. [Google Scholar] [CrossRef]
  25. Yamaguchi-Shinozaki, K.; Shinozaki, K. Transcriptional regulatory networks in cellular responses and tolerance to dehydration and cold stresses. Annu. Rev. Plant Biol. 2006, 57, 781–803. [Google Scholar] [CrossRef]
  26. Qin, F.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Achievements and challenges in understanding plant abiotic stress responses and tolerance. Plant Cell Physiol. 2011, 52, 1569–1582. [Google Scholar] [CrossRef] [PubMed]
  27. Fujita, Y.; Fujita, M.; Satoh, R.; Maruyama, K.; Parvez, M.M.; Seki, M.; Hiratsu, K.; Ohme-Takagi, M.; Shinozaki, K.; Yamaguchi-Shinozaki, K. AREB1 is a transcription activator of novel ABRE-dependent ABA signaling that enhances drought stress tolerance in Arabidopsis. Plant Cell 2005, 17, 3470–3488. [Google Scholar] [CrossRef] [PubMed]
  28. Reddy, A.R.; Chaitanya, K.V.; Vivekanandan, M. Drought-induced responses of photosynthesis and antioxidant metabolism in higher plants. J. Plant Physiol. 2004, 161, 1189–1202. [Google Scholar] [CrossRef]
  29. Kooyers, N.J. The evolution of drought escape and avoidance in natural herbaceous populations. Plant Science 2015, 234, 155–162. [Google Scholar] [CrossRef]
  30. Salazar-Blas, A.; Noriega-Calixto, L.; Campos, M.E.; Eapen, D.; Cruz-Vázquez, T.; Castillo-Olamendi, L.; Sepulveda-Jiménez, G.; Porta, H.; Dubrovsky, J.G.; Cassab, G.I. Robust root growth in altered hydrotropic response1 (ahr1) mutant of Arabidopsis is maintained by high rate of cell production at low water potential gradient. J. Plant Physiol. 2017, 208, 102–114. [Google Scholar] [CrossRef]
  31. Saab, I.N.; Sharp, R.E.; Pritchard, J. Effect of inhibition of ABA accumulation on the spatial distribution of elongation in the primary root and mesocotyl of maize at low water potentials. Plant Physiol. 1992, 99, 26–33. [Google Scholar] [CrossRef] [PubMed]
  32. Saab, I.N.; Sharp, R.E.; Pritchard, J.; Voetberg, G.S. Increased endogenous abscisic acid maintains primary root growth and inhibits shoot growth of maize seedlings at low water potentials. Plant Physiol. 1990, 93, 1329–1336. [Google Scholar] [CrossRef] [PubMed]
  33. van der Weele, C.M.; Spollen, W.G.; Sharp, R.E.; Baskin, T.I. growth of Arabidopsis thaliana seedlings under water deficit studied by control of water potential in nutrient-agar media. J. Exp. Bot. 2000, 52, 1555–1562. [Google Scholar] [CrossRef] [PubMed]
  34. Li, X.; Chen, L.; Forde, B.G.; Davies, W.J. The biphasic root growth response to abscisic acid in Arabidopsis involves interaction with ethylene and auxin signalling pathways. Front. Plant Sci. 2017, 8, 1493. [Google Scholar] [CrossRef] [PubMed]
  35. Antoni, R.; Gonzalez-Guzman, M.; Rodriguez, L.; Peirats-Llobet, M.; Pizzio, G.A.; Fernandez, M.A.; Winne, N.D.; Jaeger, G.D.; Dietrich, D.; Bennett, M.J.; et al. PYRABACTIN RESISTANCE1-LIKE8 plays an important role for the regulation of abscisic acid signaling in root. Plant Physiol. 2013, 161, 931–941. [Google Scholar] [CrossRef] [PubMed]
  36. Duarte, K.E.; de Souza, W.R.; Santiago, T.R.; Sampaio, B.L.; Ribeiro, A.P.; Cotta, M.G.; da Cunha, B.A.D.B.; Marraccini, P.R.R.; Kobayashi, A.K.; Molinari, H.B.C. Identification and characterization of core abscisic acid (ABA) signaling components and their gene expression profile in response to abiotic stresses in Setaria viridis. Sci. Rep. 2019, 9, 4028. [Google Scholar] [CrossRef] [PubMed]
  37. Li, J.; Wang, X.Q.; Watson, M.B.; Assmann, S.M. Regulation of abscisic acid-induced stomatal closure and anion channels by guard cell AAPK kinase. Science 2000, 287, 300–303. [Google Scholar] [CrossRef] [PubMed]
  38. Yoshida, R.; Umezawa, T.; Mizoguchi, T.; Takahashi, S.; Takahashi, F.; Shinozaki, K. The regulatory domain of SRK2E/OST1/SnRK2. 6 interacts with ABI1 and integrates abscisic acid (ABA) and osmotic stress signals controlling stomatal closure in Arabidopsis. J. Biol. Chem. 2006, 281, 5310–5318. [Google Scholar] [CrossRef]
  39. Nakashima, K.; Fujita, Y.; Kanamori, N.; Katagiri, T.; Umezawa, T.; Kidokoro, S.; Maruyama, K.; Yoshida, K.; Ishiyama, K.; Kobayashi, M.; et al. Three Arabidopsis SnRK2 protein kinases, SRK2D/SnRK2. 2, SRK2E/SnRK2. 6/OST1 and SRK2I/SnRK2. 3, involved in ABA signaling are essential for the control of seed development and dormancy. Plant Cell Physiol. 2009, 50, 1345–1363. [Google Scholar] [CrossRef]
  40. Fujii, H.; Verslues, P.E.; Zhu, J.K. Arabidopsis decuple mutant reveals the importance of SnRK2 kinases in osmotic stress responses in vivo. Proc. Natl. Acad. Sci. USA 2011, 108, 1717–1722. [Google Scholar] [CrossRef]
  41. Fujii, H.; Verslues, P.E.; Zhu, J.K. Identification of two protein kinases required for abscisic acid regulation of seed germination, root growth, and gene expression in Arabidopsis. Plant Cell 2007, 19, 485–494. [Google Scholar] [CrossRef]
  42. Fujii, H.; Zhu, J.K. Arabidopsis mutant deficient in 3 abscisic acid-activated protein kinases reveals critical roles in growth, reproduction, and stress. Proc. Natl. Acad. Sci. USA 2009, 106, 8380–8385. [Google Scholar] [CrossRef] [PubMed]
  43. Dietrich, D.; Pang, L.; Kobayashi, A.; Fozard, J.A.; Boudolf, V.; Bhosale, R.; Antoni, R.; Nguyen, T.; Hiratsuka, S.; Fujii, N.; et al. Root hydrotropism is controlled via a cortex-specific growth mechanism. Nat. Plants 2017, 3, 17057. [Google Scholar] [CrossRef] [PubMed]
  44. Bueso, E.; Rodriguez, L.; Lorenzo-Orts, L.; Gonzalez-Guzman, M.; Sayas, E.; Muñoz-Bertomeu, J.; Ibañez, C.; Serrano, R.; Rodriguez, P.L. The single-subunit RING-type E3 ubiquitin ligase RSL 1 targets PYL 4 and PYR 1 ABA receptors in plasma membrane to modulate abscisic acid signaling. Plant J. 2014, 80, 1057–1071. [Google Scholar] [CrossRef] [PubMed]
  45. García-León, M.; Cuyas, L.; El-Moneim, D.A.; Rodriguez, L.; Belda-Palazón, B.; Sanchez-Quant, E.; Fernández, Y.; Roux, B.; Zamarreño, Á.M.; García-Mina, J.M.; et al. Arabidopsis ALIX regulates stomatal aperture and turnover of abscisic acid receptors. Plant Cell 2019, 31, 2411–2429. [Google Scholar] [CrossRef] [PubMed]
  46. Zwiewka, M.; Nodzyński, T.; Robert, S.; Vanneste, S.; Friml, J. Osmotic stress modulates the balance between exocytosis and clathrin-mediated endocytosis in Arabidopsis thaliana. Mol. Plant 2015, 8, 1175–1187. [Google Scholar] [CrossRef] [PubMed]
  47. Taniguchi, Y.Y.; Taniguchi, M.; Tsuge, T.; Oka, A.; Aoyama, T. Involvement of Arabidopsis thaliana phospholipase Dζ2 in root hydrotropism through the suppression of root gravitropism. Planta 2010, 231, 491. [Google Scholar] [CrossRef] [PubMed]
  48. Li, G.; Xue, H.W. Arabidopsis PLDζ2 regulates vesicle trafficking and is required for auxin response. Plant Cell 2007, 19, 281–295. [Google Scholar] [CrossRef] [PubMed]
  49. Kobayashi, A.; Takahashi, A.; Kakimoto, Y.; Miyazawa, Y.; Fujii, N.; Higashitani, A.; Takahashi, H. A gene essential for hydrotropism in roots. Proc. Natl. Acad. Sci. USA 2007, 104, 4724–4729. [Google Scholar] [CrossRef]
  50. Miyazawa, Y.; Takahashi, A.; Kobayashi, A.; Kaneyasu, T.; Fujii, N.; Takahashi, H. GNOM-mediated vesicular trafficking plays an essential role in hydrotropism of Arabidopsis roots. Plant Physiol. 2009, 149, 835–840. [Google Scholar] [CrossRef]
  51. Moriwaki, T.; Miyazawa, Y.; Fujii, N.; Takahashi, H. Light and abscisic acid signalling are integrated by MIZ1gene expression and regulate hydrotropic response in roots of Arab. Thaliana. Plant Cell Environ. 2012, 35, 1359–1368. [Google Scholar] [CrossRef] [PubMed]
  52. Moriwaki, T.; Miyazawa, Y.; Kobayashi, A.; Takahashi, H. Molecular mechanisms of hydrotropism in seedling roots of Arabidopsis thaliana (Brassicaceae). Am. J. Bot. 2013, 100, 25–34. [Google Scholar] [CrossRef] [PubMed]
  53. Sewelam, N.; Kazan, K.; Schenk, P.M. Global plant stress signaling: Reactive oxygen species at the cross-road. Front. Plant Sci. 2016, 7, 187. [Google Scholar] [CrossRef] [PubMed]
  54. Mittler, R.; Vanderauwera, S.; Suzuki, N.; Miller, G.A.D.; Tognetti, V.B.; Vandepoele, K.; Gollery, M.; Shulaev, V.; Van Breusegem, F. ROS signaling: The new wave? Trends Plant Sci. 2011, 16, 300–309. [Google Scholar] [CrossRef] [PubMed]
  55. Tsukagoshi, H.; Busch, W.; Benfey, P.N. Transcriptional regulation of ROS controls transition from proliferation to differentiation in the root. Cell 2010, 143, 606–616. [Google Scholar] [CrossRef] [PubMed]
  56. Brady, S.M.; Orlando, D.A.; Lee, J.Y.; Wang, J.Y.; Koch, J.; Dinneny, J.R.; Mace, D.; Ohler, U.; Benfey, P.N. A high-resolution root spatiotemporal map reveals dominant expression patterns. Science 2007, 318, 801–806. [Google Scholar] [CrossRef] [PubMed]
  57. Winter, D.; Vinegar, B.; Nahal, H.; Ammar, R.; Wilson, G.V.; Provart, N.J. An “Electronic Fluorescent Pictograph” browser for exploring and analyzing large-scale biological data sets. PLoS ONE 2007, 2, e718. [Google Scholar] [CrossRef] [PubMed]
  58. Gomes, A.; Fernandes, E.; Lima, J.L. Fluorescence probes used for detection of reactive oxygen species. J. Biochem. Biophys. Methods 2005, 65, 45–80. [Google Scholar] [CrossRef]
  59. Douda, D.N.; Khan, M.A.; Grasemann, H.; Palaniyar, N. SK3 channel and mitochondrial ROS mediate NADPH oxidase-independent NETosis induced by calcium influx. Proc. Natl. Acad. Sci. USA 2015, 112, 2817–2822. [Google Scholar] [CrossRef]
  60. Takahashi, N.; Yamazaki, Y.; Kobayashi, A.; Higashitani, A.; Takahashi, H. Hydrotropism interacts with gravitropism by degrading amyloplasts in seedling roots of Arabidopsis and radish. Plant Physiol. 2003, 132, 805–810. [Google Scholar] [CrossRef]
  61. Nakayama, M.; Kaneko, Y.; Miyazawa, Y.; Fujii, N.; Higashitani, N.; Wada, S.; Ishida, H.; Yoshimoto, K.; Shirasu, K.; Yamada, K.; et al. A possible involvement of autophagy in amyloplast degradation in columella cells during hydrotropic response of Arabidopsis roots. Planta 2012, 236, 999–1012. [Google Scholar] [CrossRef] [PubMed]
  62. Jiménez-Nopala, G.; Salgado-Escobar, A.E.; Cevallos-Porta, D.; Cárdenas, L.; Sepúlveda-Jiménez, G.; Cassab, G.; Porta, H. Autophagy mediates hydrotropic response in Arabidopsis thaliana roots. Plant Sci. 2018, 272, 1–13. [Google Scholar] [CrossRef] [PubMed]
  63. Edel, K.H.; Marchadier, E.; Brownlee, C.; Kudla, J.; Hetherington, A.M. The evolution of calcium-based signalling in plants. Curr. Biol. 2017, 27, R667–R679. [Google Scholar] [CrossRef] [PubMed]
  64. Meena, M.K.; Sardar, A.; Chattopadhyaya, D. Decoding and relay of calcium signals in plants. Proc. Indian Natl. Sci. Acad. 2019, 85, 143–156. [Google Scholar]
  65. Kim, M.C.; Chung, W.S.; Yun, D.J.; Cho, M.J. Calcium and calmodulin-mediated regulation of gene expression in plants. Mol. Plant 2009, 2, 13–21. [Google Scholar] [CrossRef] [PubMed]
  66. Sanders, D.; Pelloux, J.; Brownlee, C.; Harper, J.F. Calcium at the crossroads of signaling. Plant Cell 2002, 14 (Suppl. S1), S401–S417. [Google Scholar] [CrossRef] [PubMed]
  67. Michalak, M.; Parker, J.R.; Opas, M. Ca2+ signaling and calcium binding chaperones of the endoplasmic reticulum. Cell Calcium 2002, 32, 269–278. [Google Scholar] [CrossRef]
  68. Tsou, P.L.; Lee, S.Y.; Allen, N.S.; Winter-Sederoff, H.; Robertson, D. An ER-targeted calcium-binding peptide confers salt and drought tolerance mediated by CIPK6 in Arabidopsis. Planta 2012, 235, 539–552. [Google Scholar] [CrossRef] [PubMed]
  69. Björkman, T.; Cleland, R.E. The role of extracellular free-calcium gradients in gravitropic signalling in maize roots. Planta 1991, 185, 379–384. [Google Scholar] [CrossRef]
  70. Toyota, M.; Furuichi, T.; Sokabe, M.; Tatsumi, H. Analyses of a gravistimulation-specific Ca2+ signature in Arabidopsis using parabolic flights. Plant Physiol. 2013, 163, 543–554. [Google Scholar] [CrossRef]
  71. Yamazaki, T.; Miyazawa, Y.; Kobayashi, A.; Moriwaki, T.; Fujii, N.; Takahashi, H. MIZ1, an essential protein for root hydrotropism, is associated with the cytoplasmic face of the endoplasmic reticulum membrane in Arabidopsis root cells. FEBS Lett. 2012, 86, 398–402. [Google Scholar] [CrossRef]
  72. Nakajima, Y.; Nara, Y.; Kobayashi, A.; Sugita, T.; Miyazawa, Y.; Fujii, N.; Takahashi, H. Auxin transport and response requirements for root hydrotropism differ between plant species. J. Exp. Bot. 2017, 68, 3441–3456. [Google Scholar] [CrossRef] [PubMed]
  73. Fujii, N.; Miyabayashi, S.; Sugita, T.; Kobayashi, A.; Yamazaki, C.; Miyazawa, Y.; Kamada, M.; Kasahara, H.; Osada, I.; Shimazu, T.; et al. Root-tip-mediated inhibition of hydrotropism is accompanied with the suppression of asymmetric expression of auxin-inducible genes in response to moisture gradients in cucumber roots. PLoS ONE 2018, 13, e0189827. [Google Scholar] [CrossRef] [PubMed]
  74. Akita, K.; Miyazawa, Y. The mechanosensitive Ca2+ channel, OSCA1.1, modulates root hydrotropic bending in Arabidopsis thaliana. Environ. Exp. Bot. 2022, 197, 104825. [Google Scholar] [CrossRef]
  75. Kaneyasu, T.; Kobayashi, A.; Nakayama, M.; Fujii, N.; Takahashi, H.; Miyazawa, Y. Auxin response, but not its polar transport, plays a role in hydrotropism of Arabidopsis roots. J. Exp. Bot. 2007, 58, 1143–1150. [Google Scholar] [CrossRef] [PubMed]
  76. Gilroy, S.; Białasek, M.; Suzuki, N.; Górecka, M.; Devireddy, A.R.; Karpiński, S.; Mittler, R. ROS, calcium, and electric signals: Key mediators of rapid systemic signaling in plants. Plant Physiol. 2016, 171, 1606–1615. [Google Scholar] [CrossRef] [PubMed]
  77. Choi, W.G.; Toyota, M.; Kim, S.H.; Hilleary, R.; Gilroy, S. Salt stress-induced Ca2+ waves are associated with rapid, long-distance root-to-shoot signaling in plants. Proc. Natl. Acad. Sci. USA 2014, 111, 6497–6502. [Google Scholar] [CrossRef] [PubMed]
  78. Gilroy, S.; Suzuki, N.; Miller, G.; Choi, W.G.; Toyota, M.; Devireddy, A.R.; Mittler, R. A tidal wave of signals: Calcium and ROS at the forefront of rapid systemic signaling. Trends Plant Sci. 2014, 19, 623–630. [Google Scholar] [CrossRef] [PubMed]
  79. Kimura, S.; Kaya, H.; Kawarazaki, T.; Hiraoka, G.; Senzaki, E.; Michikawa, M.; Kuchitsu, K. Protein phosphorylation is a prerequisite for the Ca2+-dependent activation of Arabidopsis NADPH oxidases and may function as a trigger for the positive feedback regulation of Ca2+ and reactive oxygen species. Biochim. Et Biophys. Acta (BBA)-Mol. Cell Res. 2012, 1823, 398–405. [Google Scholar] [CrossRef]
  80. Evans, M.J.; Choi, W.G.; Gilroy, S.; Morris, R.J. A ROS-assisted calcium wave dependent on the AtRBOHD NADPH oxidase and TPC1 cation channel propagates the systemic response to salt stress. Plant Physiol. 2016, 171, 1771–1784. [Google Scholar] [CrossRef]
  81. Jiao, Y.; Sun, L.; Song, Y.; Wang, L.; Liu, L.; Zhang, L.; Li, N.; Miao, C.; Hao, F. AtrbohD and AtrbohF positively regulate abscisic acid-inhibited primary root growth by affecting Ca2+ signalling and auxin response of roots in Arabidopsis. J. Exp. Bot. 2013, 64, 4183–4192. [Google Scholar] [CrossRef] [PubMed]
  82. Saucedo, M.; Ponce, G.; Campos, M.E.; Eapen, D.; García, E.; Luján, R.; Sánchez, Y.; Cassab, G.I. An altered hydrotropic response (ahr1) mutant of Arabidopsis recovers root hydrotropism with cytokinin. J. Exp. Bot. 2012, 63, 3587–3602. [Google Scholar] [CrossRef] [PubMed]
  83. Chang, J.; Li, X.; Fu, W.; Wang, J.; Yong, Y.; Shi, H.; Ding, Z.; Kui, H.; Gou, X.; He, K.; et al. Asymmetric distribution of cytokinins determines root hydrotropism in Arabidopsis thaliana. Cell Res. 2019, 29, 984–993. [Google Scholar] [CrossRef] [PubMed]
  84. Pang, L.; Kobayashi, A.; Stsumi, Y.; Miyazawa, Y.; Fujii, N.; Ditrich, D.; Bennett, M.J.; Takahashi, H. MIZU-KUSSEI1 (MIZ1) and GNOM/MIZ2 control not only positive hydrotropism but also ohototropism in Arabidopsis roots. J. Exp. Bot. 2023, 74, 4892–4895. [Google Scholar] [CrossRef] [PubMed]
Plants 13 01220 g001
Figure 1. Growth rate of Arabidopsis thaliana roots exposed to decreasing water potential and exogenous ABA treatment. Data were taken from van der Weele et al. [33] for water potential and from Li et al. [34] for exogenous ABA. Data presented in the studies were extracted from graphs with WebPlotDigitizer, and graphs in this figure were prepared as relative values to depict avoidance and tolerance responses.
Figure 1. Growth rate of Arabidopsis thaliana roots exposed to decreasing water potential and exogenous ABA treatment. Data were taken from van der Weele et al. [33] for water potential and from Li et al. [34] for exogenous ABA. Data presented in the studies were extracted from graphs with WebPlotDigitizer, and graphs in this figure were prepared as relative values to depict avoidance and tolerance responses.
Plants 13 01220 g001
Plants 13 01220 g002

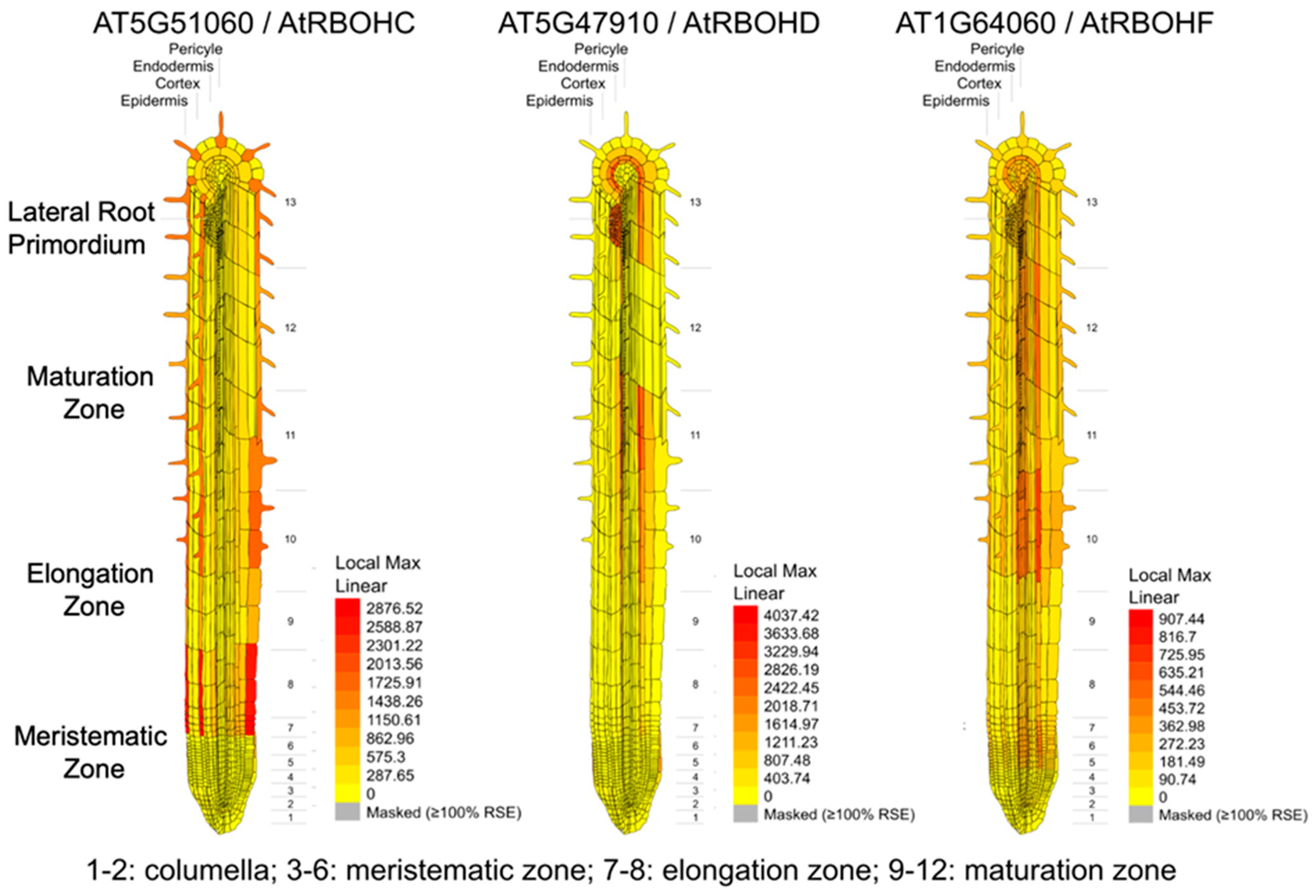

Figure 2. Expression of RBOHC, RBOHD, and RBOHF genes in Arabidopsis roots. Data source: Brady et al. [56] and Winter et al. [57] with eFP Browser.
Figure 2. Expression of RBOHC, RBOHD, and RBOHF genes in Arabidopsis roots. Data source: Brady et al. [56] and Winter et al. [57] with eFP Browser.
Plants 13 01220 g002
Plants 13 01220 g003
Figure 3. Hydrotropic curvature and cytosolic Ca2+ imaging in Arabidopsis roots. (A) Time course analysis of hydrotropic response. Roots of three-day-old seedlings of Arabidopsis thaliana ecotype Columbia (Col-0) were hydrotropically stimulated using the split-agar assay [75]. Root curvature (degrees) was measured using ImageJ ver. 1.42 and expressed as mean ± SE (n = 30). Asterisks indicate significant differences (* p < 0.05; ** p < 0.01; Student’s t-test). (B) Time course study of the changes in YC3.6 (Ca2+ reporter) signal intensity in control and hydrostimulated roots. Roots were observed under a confocal laser scanning microscope (FV-1000/IX-81, Olympus, Tokyo, Japan), and FRET images were obtained. Three roots from each treatment are shown. (C,D) Quantification of YC3.6 signal intensity in the lateral root cap (C) and stele (D) of the elongation zone. Data represent the mean ± SE (n = 9–15). Asterisks indicate significant differences (* p < 0.05; ** p < 0.01; Student’s t-test).
Figure 3. Hydrotropic curvature and cytosolic Ca2+ imaging in Arabidopsis roots. (A) Time course analysis of hydrotropic response. Roots of three-day-old seedlings of Arabidopsis thaliana ecotype Columbia (Col-0) were hydrotropically stimulated using the split-agar assay [75]. Root curvature (degrees) was measured using ImageJ ver. 1.42 and expressed as mean ± SE (n = 30). Asterisks indicate significant differences (* p < 0.05; ** p < 0.01; Student’s t-test). (B) Time course study of the changes in YC3.6 (Ca2+ reporter) signal intensity in control and hydrostimulated roots. Roots were observed under a confocal laser scanning microscope (FV-1000/IX-81, Olympus, Tokyo, Japan), and FRET images were obtained. Three roots from each treatment are shown. (C,D) Quantification of YC3.6 signal intensity in the lateral root cap (C) and stele (D) of the elongation zone. Data represent the mean ± SE (n = 9–15). Asterisks indicate significant differences (* p < 0.05; ** p < 0.01; Student’s t-test).
Plants 13 01220 g003
Plants 13 01220 g004
Figure 4. Time course study of the changes in YC3.6 (Ca2+ reporter) signal intensity in systemically osmo-stressed roots. Seedling roots were exposed to varying degrees of osmotic stress (0, −0.25, −0.5, −0.75, and −1.0 MPa). Roots were observed under a confocal laser scanning microscope (FV-1000/IX-81, Olympus), and FRET images were obtained. Three roots from each treatment are shown.
Figure 4. Time course study of the changes in YC3.6 (Ca2+ reporter) signal intensity in systemically osmo-stressed roots. Seedling roots were exposed to varying degrees of osmotic stress (0, −0.25, −0.5, −0.75, and −1.0 MPa). Roots were observed under a confocal laser scanning microscope (FV-1000/IX-81, Olympus), and FRET images were obtained. Three roots from each treatment are shown.
Plants 13 01220 g004
Plants 13 01220 g005

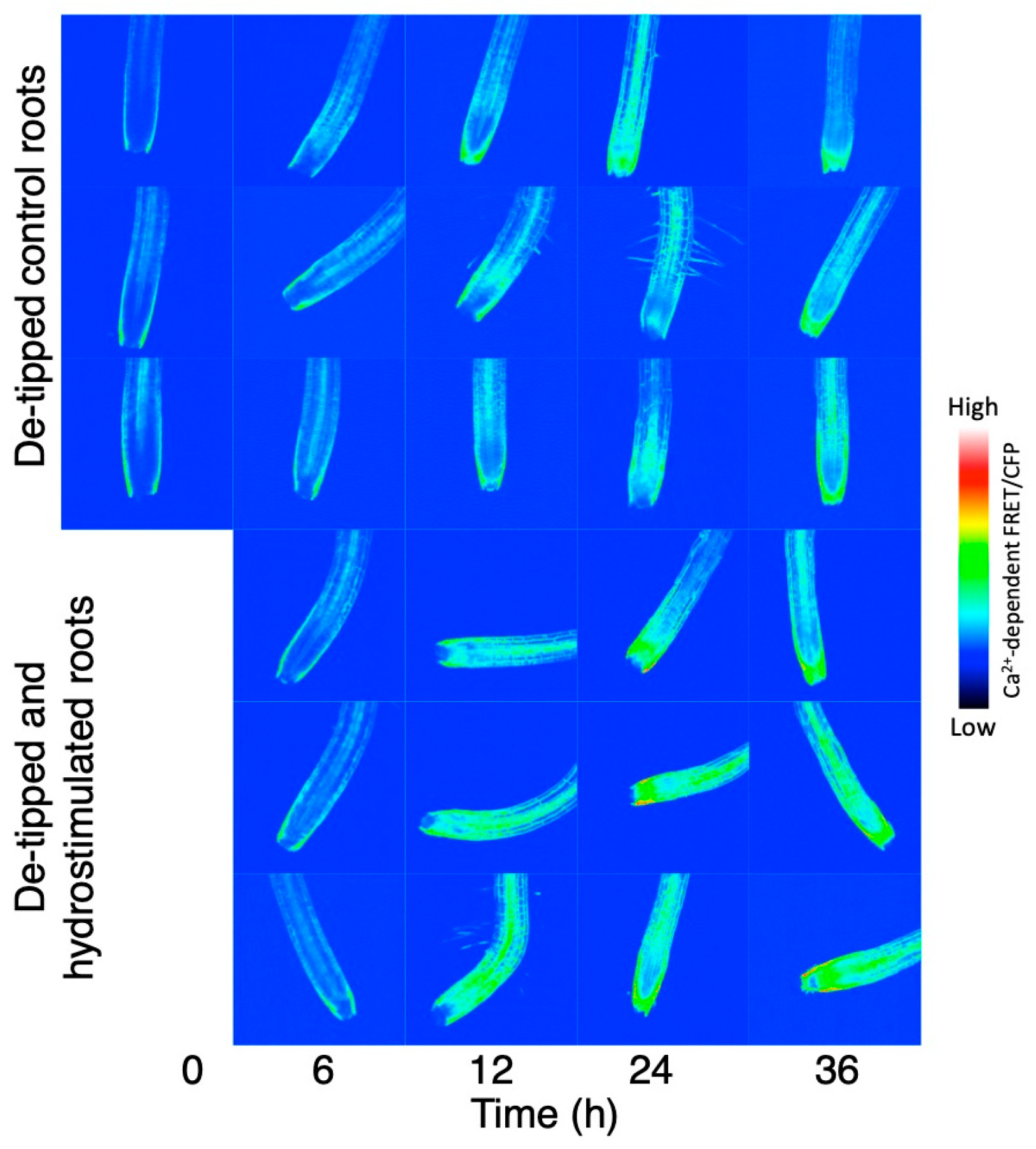

Figure 5. Effects of de-tipping on YC3.6 signal intensity in control and hydrostimulated roots. Root tip (100 μm) was removed with a micro blade under a stereomicroscope (SZX16, Olympus). Roots were observed under a confocal laser scanning microscope (FV-1000/IX-81, Olympus), and FRET images were obtained. Three roots from each treatment are shown.
Figure 5. Effects of de-tipping on YC3.6 signal intensity in control and hydrostimulated roots. Root tip (100 μm) was removed with a micro blade under a stereomicroscope (SZX16, Olympus). Roots were observed under a confocal laser scanning microscope (FV-1000/IX-81, Olympus), and FRET images were obtained. Three roots from each treatment are shown.
Plants 13 01220 g005
Plants 13 01220 g006
Figure 6. Scheme depicting the commonalities between hydrotropism and stomatal response.
Figure 6. Scheme depicting the commonalities between hydrotropism and stomatal response.
Plants 13 01220 g006
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Uzilday, B.; Takahashi, K.; Kobayashi, A.; Uzilday, R.O.; Fujii, N.; Takahashi, H.; Turkan, I. Role of Abscisic Acid, Reactive Oxygen Species, and Ca2+ Signaling in Hydrotropism—Drought Avoidance-Associated Response of Roots. Plants 2024, 13, 1220. https://doi.org/10.3390/plants13091220

AMA Style

Uzilday B, Takahashi K, Kobayashi A, Uzilday RO, Fujii N, Takahashi H, Turkan I. Role of Abscisic Acid, Reactive Oxygen Species, and Ca2+ Signaling in Hydrotropism—Drought Avoidance-Associated Response of Roots. Plants. 2024; 13(9):1220. https://doi.org/10.3390/plants13091220

Chicago/Turabian Style

Uzilday, Baris, Kaori Takahashi, Akie Kobayashi, Rengin Ozgur Uzilday, Nobuharu Fujii, Hideyuki Takahashi, and Ismail Turkan. 2024. "Role of Abscisic Acid, Reactive Oxygen Species, and Ca2+ Signaling in Hydrotropism—Drought Avoidance-Associated Response of Roots" Plants 13, no. 9: 1220. https://doi.org/10.3390/plants13091220

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
