Improving the Flotation of Unoxidized and Oxidized Molybdenite Fines Using Dodecylamine as a Collector: Flotation Tests and Interaction Mechanism

Abstract

The flotation of unoxidized and oxidized molybdenite fines is a challenging job worldwide. In this work, dodecylamine (DDA) was developed as a potential collector to improve the flotation of molybdenite fines with and without oxidation. The flotation behaviors and interaction mechanisms were probed through flotation tests, contact angle, Zeta potential, Scanning Electron Microscope-Energy Dispersive Spectrometer(SEM-EDS), and X-ray Photoelectron Spectroscopy (XPS). The flotation tests revealed that DDA improved the flotation of unoxidized or oxidized molybdenite fines efficiently. The results of Zeta potential, contact angle, and SEM-EDS uncovered that a substantial number of DDA species adsorbed on both fresh and oxidized molybdenite faces and edges, thus enhancing their hydrophobicity. XPS analysis further manifested that RNH₂ and RNH₃⁺ adsorbed on the S atoms of fresh faces through hydrogen bonding. Meanwhile, RNH₂ and RNH₃⁺ mainly adsorbed on fresh edges via chemical bonding between amine groups and Mo sites and electrostatic force. For oxidized molybdenite, RNH₂ and RNH₃⁺ interacted with oxidized faces through hydrogen bonding while adsorbed on oxidized edges via hydrogen bonding and electrostatic interaction.

1. Introduction

Molybdenum (Mo) is a rare and strategic metal that has been broadly used in the metallurgy, machinery, chemical, and aerospace industries owing to its high strength and excellent corrosion resistance [1,2]. Up to now, 95% of molybdenum production originates from molybdenite. With the gradual reduction of high-grade molybdenite ores, exploiting fine-disseminated and low-grade molybdenite deposits is essential to satisfy increasing consumption demand. Nevertheless, these refractory ores are required to be finely ground to liberate them from other gangue minerals. As a laminar mineral with distinct anisotropic properties, molybdenite possesses polar edges and non-polar faces [3]. The hydrophilic edge originates from the cleavage of S–Mo covalent bonds, while the hydrophobic face is derived from the break of van der Waals force between S–Mo–S layers [4]. Notably, molybdenite hydrophobicity depends on the edge/face ratio. As particle size decreases, the hydrophilic edge gradually dominates, leading to a significant decline in the floatability of molybdenite fines [5].

In addition, oxidation is another important factor affecting the flotation of molybdenite ores. Molybdenite ores are prone to be oxidized in the presence of oxygen, moisture, microbial activity, and acidic substances [6], leading to diminishing hydrophobicity. [7]. Yi et al. reported that the oxidation reaction made the molybdenite surface less hydrophobic [8]. Wei et al. further revealed that both faces and edges exhibited hydrophilic properties after oxidation [9]. Because covalent bonds are ruptured to produce edges, they are known to be considerably more reactive than faces. As a result, the oxidation reaction occurs primarily on edges, and on the defect sites in faces [10]. Notably, molybdenite fines are more readily oxidized due to the dominant edges, and then the hydrophobicity significantly decreases, resulting in the poor flotation performance of oxidized molybdenite fines.

Kerosene is a commonly used collector for molybdenite flotation that preferentially adsorbs on molybdenite faces rather than edges via van der Waals forces and hydrophobic interactions [11]. However, kerosene cannot efficiently collect molybdenite fines owing to its poor affinity toward hydrophilic edges. After oxidation, since the hydrophobicity of the faces decrease, the affinity between kerosene and the faces becomes weaker, leading to worse floatability. Consequently, exploring novel collectors to improve the flotation of oxidized and unoxidized molybdenite fines is essential.

Dodecylamine (DDA) is a common cationic collector, which can be used to collect silicate and oxidized minerals. In its molecular structure, DDA contains a long carbon chain and an amine group. The amine group has a lone-pair electron that can complex with metal sites. Meanwhile, the long carbon chain renders the mineral surface hydrophobic. In this work, DDA was first tested as a collector of molybdenite fines. The flotation performances and interaction mechanisms were probed via flotation, contact angle, Zeta potential, SEM-EDS, and XPS measurements. The objective was to verify if it was suitable for promoting the flotation of molybdenite fines and to shed some light on its interaction mechanism.

2. Experimental

2.1. Materials

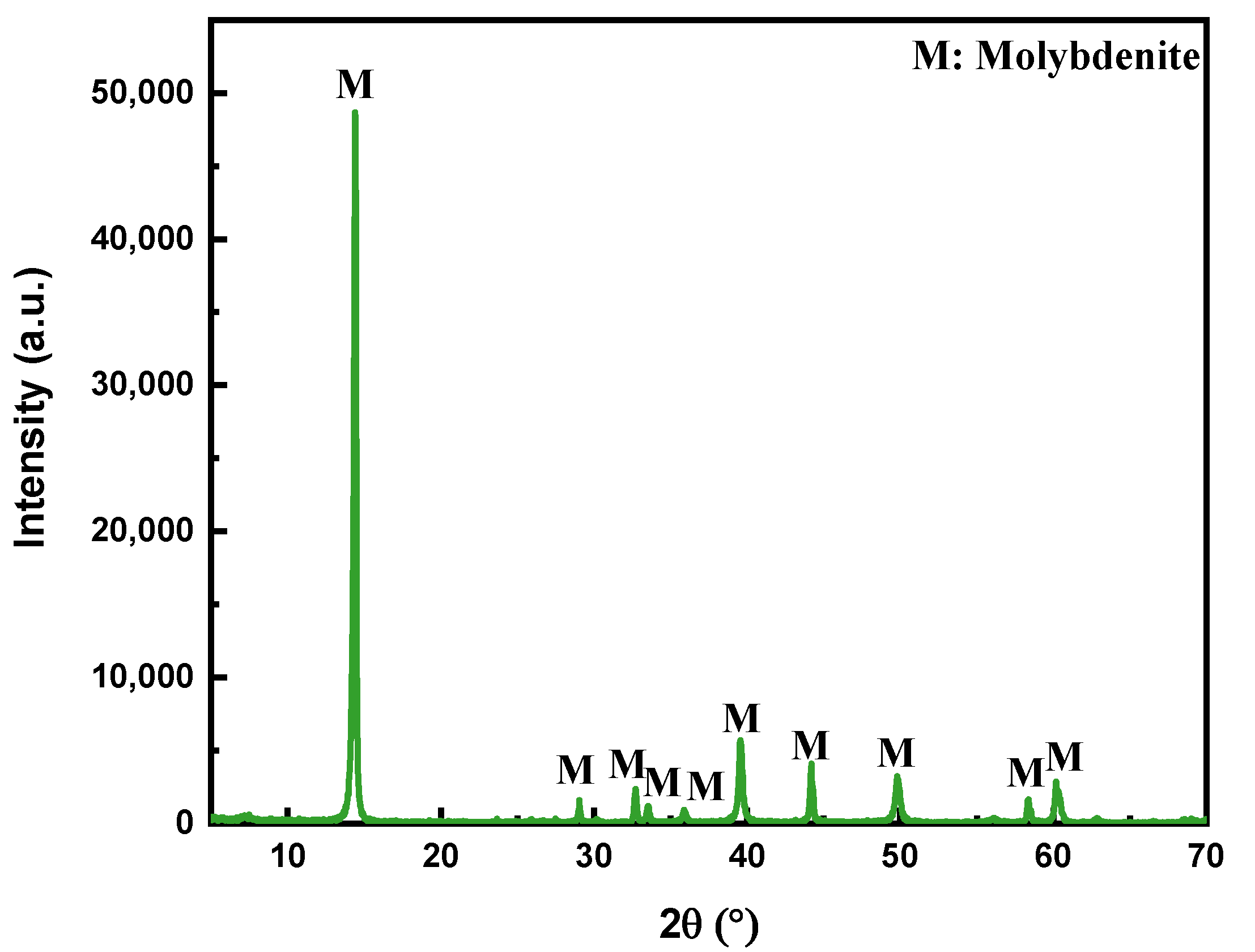

Molybdenite samples were purchased from Guangxi province, China. These samples were selected, ground, and screened to obtain −20 μm size fractions for flotation tests and measurements. The XRD (D8 Advance, Bruker, Billerica, MA, USA) pattern of molybdenite is illustrated in Figure 1, and there was no apparent impurity peak. The results of XRD and the chemical assay showed that the molybdenite samples were of high purity (97%).

Reagents utilized in this work include the collectors DDA and kerosene, pH modifiers NaOH and HCl, the frother methyl isobutyl carbinol (MIBC), and oxidant hydrogen peroxide (H₂O₂), which were all obtained from Aladin, China. Ultrapure water was used.

2.2. Oxidation Treatment and Flotation Tests

Molybdenite powders (2 g) were added to 1 M H₂O₂ (30% v/v) solution, and the suspension was stirred at 300 rpm for 24 h. Then, the pulp was transferred to a flotation cell. After pH adjustment, DDA or kerosene was introduced and conditioned for 5 min. When kerosene was employed as the collector, MIBC was introduced to the pulp and conditioned for 1 min before flotation. When DDA was used as a collector, MIBC was not needed. The flotation was performed for three minutes.

2.3. Contact Angle Measurement

A contact angle goniometer (Dataphysics OCA20, Filderstadt, Germany) was employed to measure the contact angles of the face and edge samples using the sessile drop method. During the measurements, the needle with a diameter of 0.5 mm was used to inject ultrapure water droplets, resulting in a droplet size of about 4 mm. The bulk molybdenite with good crystallinity was used to prepare the faces and edges samples. The fresh faces (0.5 × 0.5 cm²) were obtained by mechanically exfoliating the top layers of molybdenite utilizing Scotch tape. An approximate 0.5 cm thick molybdenite sample was cut into 0.4 × 0.3 cm² for preparing the edges sample. The edges sample were polished with wet silicon carbide paper in the sequence of 240, 400, 800, 1200, 3000, and 7000 grit, and then polished with 1 and 0.3 μm alumina powder suspensions, respectively. Moreover, the fresh faces and edges were immersed in H₂O₂ solution for 24 h to prepare the oxidized faces and edges samples. For the treated samples with DDA, the fresh and oxidized faces and edges were immersed in 100 mg/L DDA solution (pH = 7) for 5 min. Afterwards, these samples were blown dry for measurement.

2.4. Zeta Potential Measurement

Zeta potential was measured using a Zetasizer Nano (Malvern, UK). First, 0.1 g oxidized or unoxidized molybdenite samples were added into a DDA solution (100 mg/L, 10⁻³ M NaCl) and stirred for 5 min. After pH regulation, 1 mL of suspension was takenfor measurements.

2.5. SEM-EDS Measurement

Molybdenite faces and edges samples were prepared as presented in Section 2.3. SEM (JEM-2100F, JEOL, Tokyo, Japan) was used to observe the morphology characteristics. The element distribution was detected with an Energy Dispersive Spectrometer (EDAX Elite, Pleasanton, CA, USA).

2.6. Raman Measurement

Raman spectra were obtained using an INVIA Raman microscope with a 532 nm Ar laser (Renishaw, Gloucestershire, UK). The faces and edges samples with and without oxidation were prepared as presented in Section 2.3. Moreover, the H₂O₂ solution remaining after oxidation of the faces and edges was also used for measurements.

2.7. XPS Measurement

First, 2 g of unoxidized and oxidized molybdenite samples were treated with DDA solution (100 mg/L, pH = 7) and conditioned for 5 min. Then, the samples were collected and dried for measurements. XPS spectra were obtained by an X-ray photoelectron spectrometer (Thermo Scientific K-Alpha, Waltham, MA, USA). The measurement was conducted via an Al Kα sputtering ray source at 12 kV and pass energy of 50 eV. The spectra were fitted using Avantage software 5.9922. The standard C 1s peak was calibrated to 284.80 eV.

3. Results and Discussion

3.1. Flotation Tests

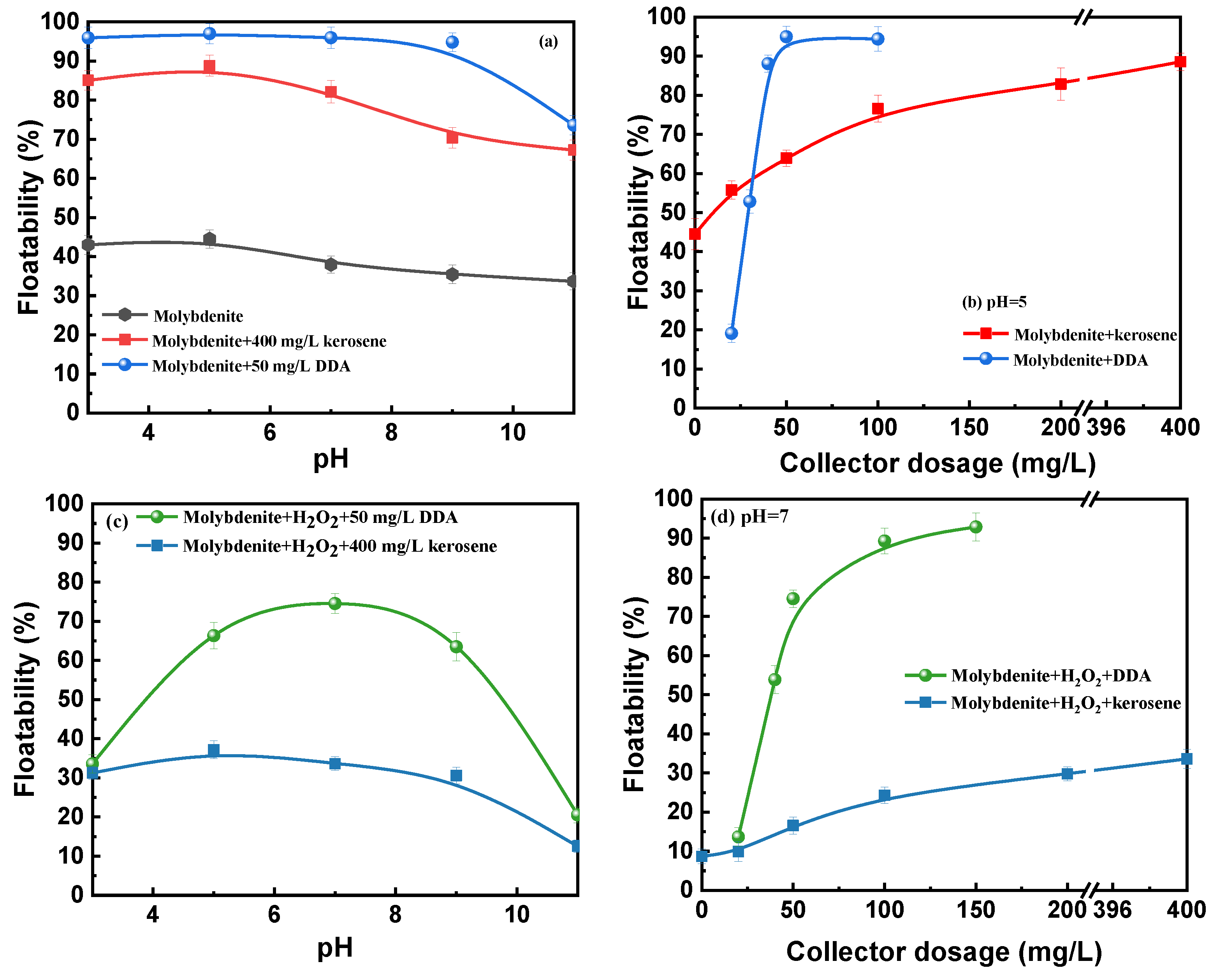

Figure 2a presents the floatability of molybdenite fines as a function of pH. It was clear that molybdenite floatability decreased gradually as pH increased, which might be due to the generation of hydrophilic molybdate ions [12]. After the addition of DDA, the floatability of molybdenite fines surged to 97% at a pH of 5, whereas a high dosage of kerosene achieved a floatability of 88.82%. Compared with kerosene, a lower dosage of DDA could achieve higher floatability, indicating that DDA was more efficient in the flotation of molybdenite fines at a broad pH range.

Figure 2b shows the impact of collector dosage on the floatability of molybdenite fines. Notably, molybdenite floatability improved remarkably as the collector dosage increased. At DDA dosage of 50 mg/L, the floatability reached 94.96%, which was much higher than that (88.56%) obtained at kerosene dosage of 400 mg/L. These results revealed that DDA exhibited much stronger collecting ability to molybdenite fines, which had the potential to replace kerosene.

Figure 2c illustrates molybdenite floatability after oxidation as a function of pH. When kerosene was used as a collector, the floatability of oxidized molybdenite fines decreased slightly as pH increased. On the contrary, the floatability improved substantially after the introduction of DDA at a pH of 5–7. It was clear that a low dosage of DDA achieved floatability of 74.52% while a high dosage of kerosene only obtained floatability of 33.62% at a pH of 7. The huge difference in floatability meant that less reagent was needed when DDA was used. These results indicated that DDA also significantly improved the flotation of oxidized molybdenite fines.

The influence of collector dosage on the flotation of oxidized molybdenite fines is presented in Figure 2d. It was obvious that oxidized molybdenite exhibited very poor floatability (8.69%). After the addition of kerosene, the floatability reached 33.62% at 400 mg/L of kerosene. Notably, the floatability surged dramatically to nearly 90% when 100 mg/L of DDA was introduced. These results indicated that DDA was more effective than kerosene in collecting oxidized molybdenite fines.

3.2. Contact Angle

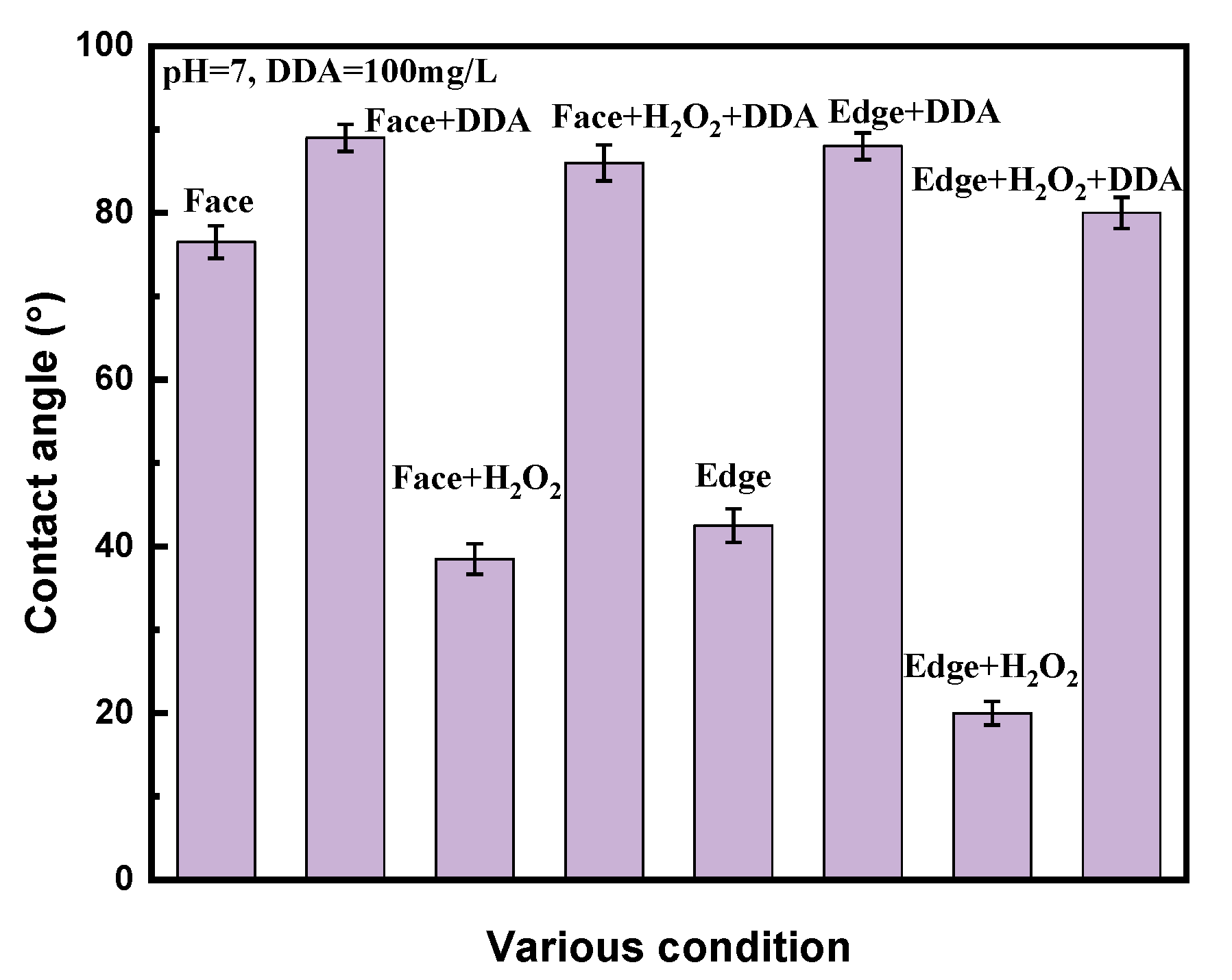

Figure 3 depicts contact angles of treated and untreated faces and edges under various conditions. The contact angle of fresh molybdenite faces and edges was 76.5° and 42.5°, respectively. After adding DDA, the contact angle of the faces and edges increased to 89° and 86°, suggesting that DDA improved the hydrophobicity of fresh faces and edges. After oxidation, the contact angle of both the faces and edges reduced to 38.5° and 20°, which explained the poor flotation of oxidized molybdenite fines. For oxidized molybdenite fines treated with DDA, the contact angle of the faces and edges reached 88° and 80°, respectively, which elucidated that DDA could also remarkably enhance the hydrophobicity of both oxidized faces and edges. These results revealed that DDA could improve the hydrophobicity of the faces and edges before and after oxidation, which corresponded well with the flotation results.

3.3. Zeta Potential

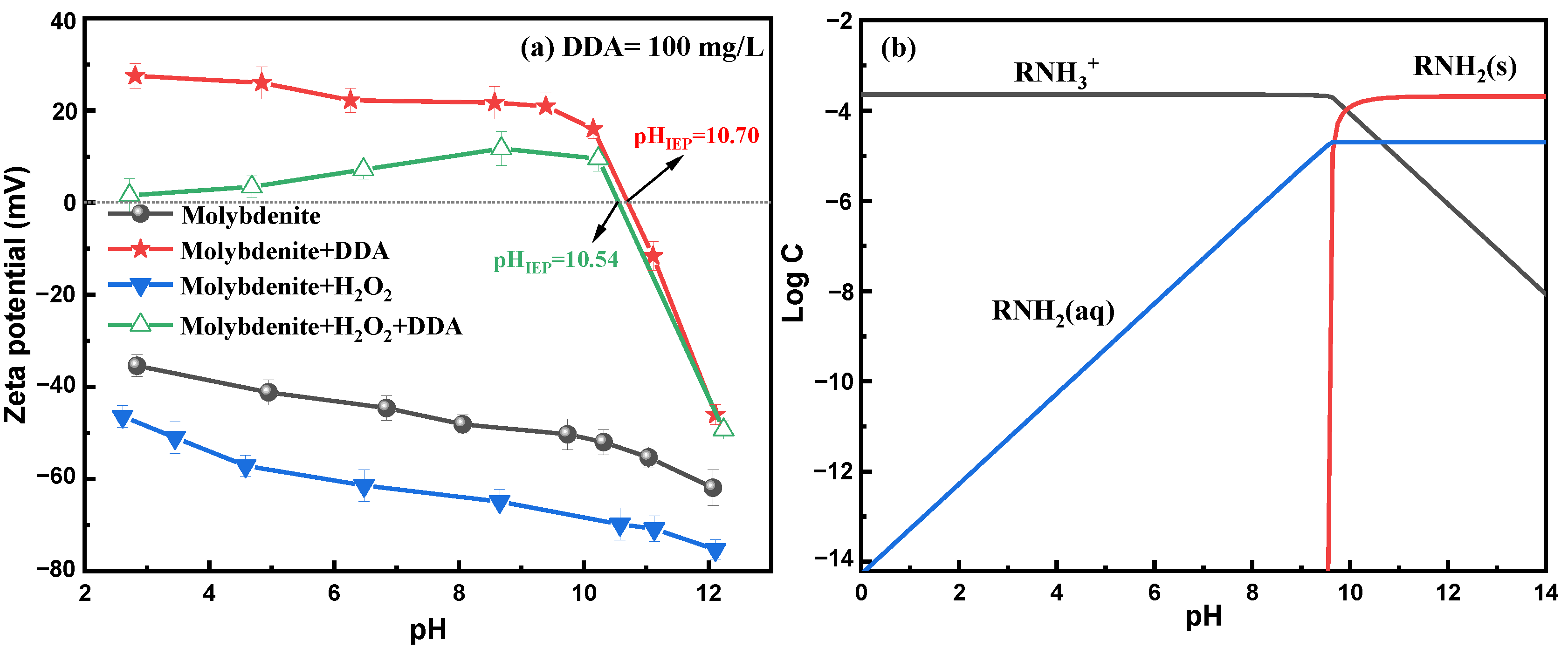

The effect of pH on Zeta potential of oxidized and unoxidized molybdenite fines with and without DDA is displayed in Figure 4a. For molybdenite, Zeta potential was negative throughout the pH range. After oxidation, Zeta potential shifted towards a more negative direction over the pH range, which might be ascribed to the formation of more negatively charged molybdate ions (HMoO₄⁻/MoO₄²⁻) [7]. After the introduction of DDA, Zeta potential of both oxidized and unoxidized molybdenite fines became positive at a pH around 2–10, and their isoelectric point (IEP) moved to an approximate pH of 10.54 and 10.70, respectively. Based on the DDA species distribution diagram (Figure 4b), the cationic species RNH₃⁺ dominated, where a few neutral species of RNH₂(aq) were also present in the pH range of 0–9.54. Consequently, it was easy to understand that these DDA species adsorbed on unoxidized and oxidized molybdenite surfaces and reversed their Zeta potential from negative to positive [13].

3.4. Raman and SEM-EDS Analysis

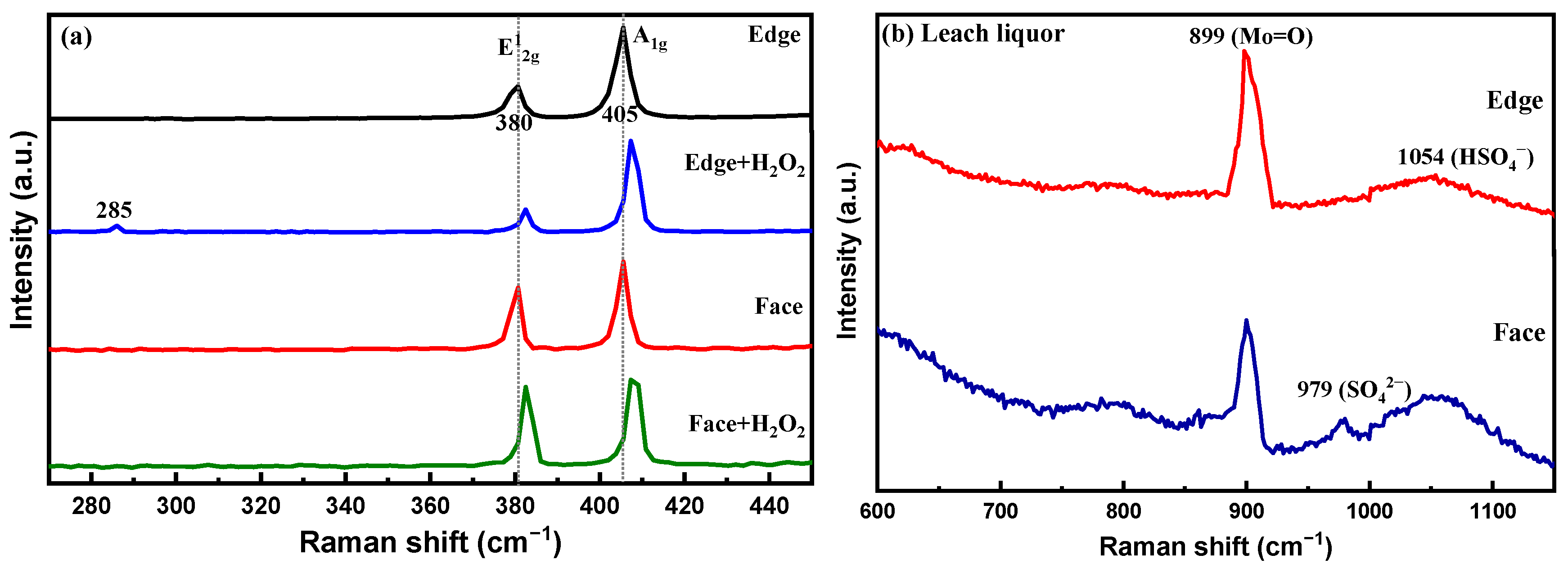

The species of molybdenite faces and edges were examined using Raman spectrum. Figure 5a depicts Raman spectra of faces and edges before and after oxidation. The distinct peaks at 380 and 405 cm⁻¹ represented the in-plane E¹_2g and out-of-plane A_1g vibration modes of Mo-S bonds [14], which were detected on both unoxidized faces and edges. For oxidized edges, a new peak at 285 cm⁻¹ appeared, which was ascribed to MoO₃, indicating that the oxidation degree of the edges increased. For oxidized faces, the A_1g peak was broadened, suggesting the softening of the Mo–S phonon mode, which might be due to the decrease in Mo–S bonds [15]. Furthermore, both faces and edges exhibited red shifts of E¹_2g and A_1g peaks after oxidation, which might be due to the generation of sulfur vacancies during oxidation [16].

Raman spectra of molybdenite species in oxidation leach liquor are displayed in Figure 5b. For the edge liquor, the peaks at 899 and 1054 cm⁻¹ represented Mo=O in MoO₄²⁻ and HSO₄⁻. For the face liquor, the same two peaks were also detected, and another peak at 979 cm⁻¹ of the faces was ascribed to SO₄²⁻ [17]. The appearance of HSO₄⁻ and SO₄²⁻ indicated the oxidation of sulfur in molybdenite. Compared with the edge liquor, the intensity of MoO₄²⁻ reduced while HSO₄⁻ increased in the face liquor, and the new peak of SO₄²⁻ appeared, indicating that more sulfur and fewer molybdenum oxidized products dissolved from faces than edges. Furthermore, ICP results illustrated that the sulfur and molybdenum elemental contents were 1016.84 mg/L and 330.03 mg/L in the liquor, suggesting the oxidized products of sulfur were more soluble than those of molybdenum.

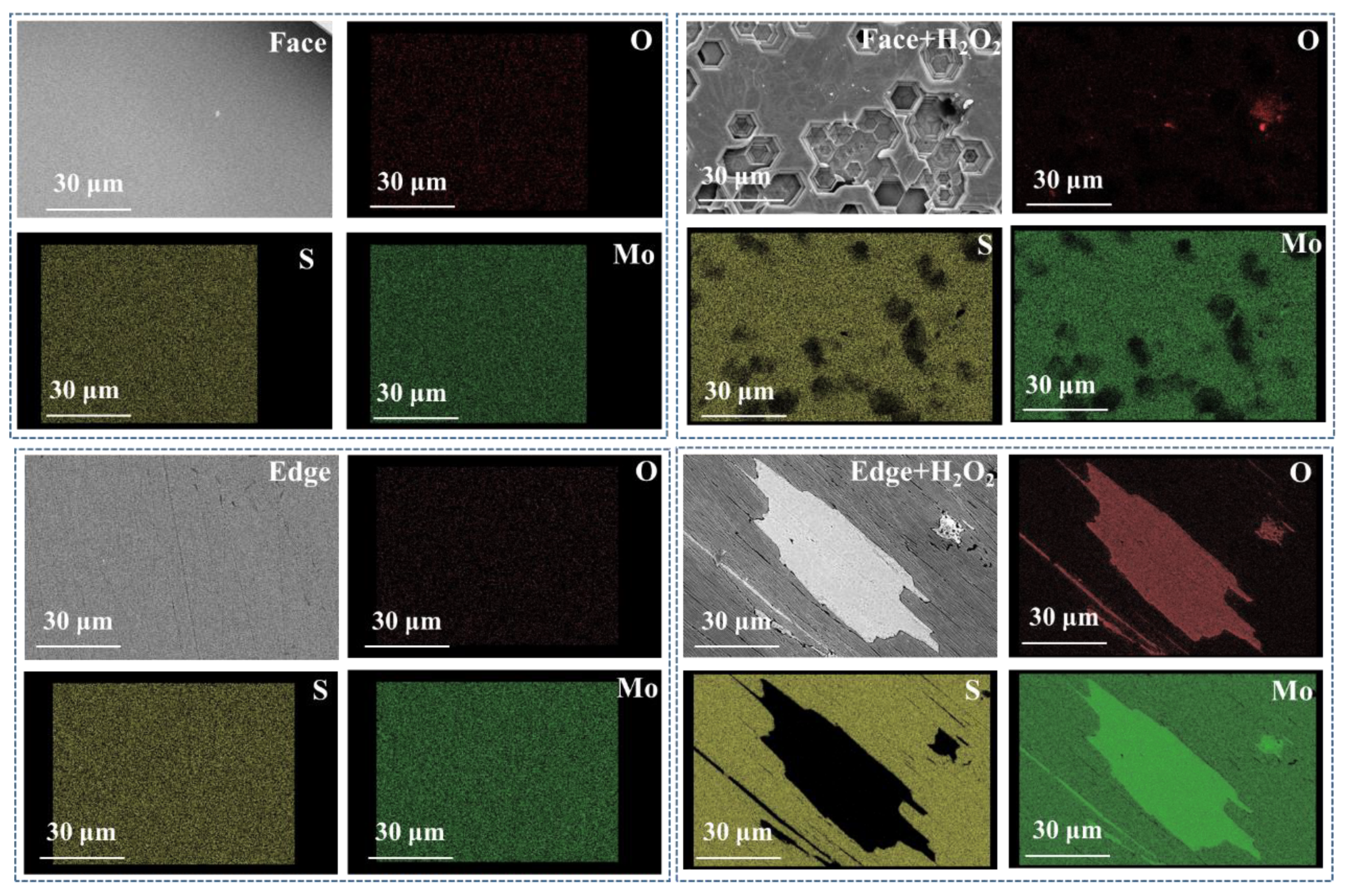

Figure 6 and

Table 1. Elemental atomic concentration of the face and edge with and without oxidation.

Surface	Oxidation State	Element Atomic Conc.
		S	Mo	O
Face	Before	59.417	37.121	2.462
	After	57.568	36.937	5.495
Edge	Before	59.278	37.258	3.464
	After	31.736	50.530	17.734

present the SEM images and elemental atomic concentration of fresh and oxidized molybdenite faces and edges. The fresh faces and edges surfaces were smooth and O content was relatively low. After oxidation, many hexagonal defects formed on faces. Meanwhile, the EDS results showed that the S and Mo content decreased slightly while the O content increased around these defects. Therefore, it was reasonable to deduce that the oxidation mainly caused the generation of defects on faces. For oxidized edges, large white oxides were observed. EDS analysis indicated that these oxides were primarily molybdenum oxide. Combined with Raman results, the broadened A_1g peak and red shift further demonstrated that these defects on oxidized faces might be sulfur vacancies, and the deposited molybdenum oxide on oxidized edges could be ascribed to MoO₃.

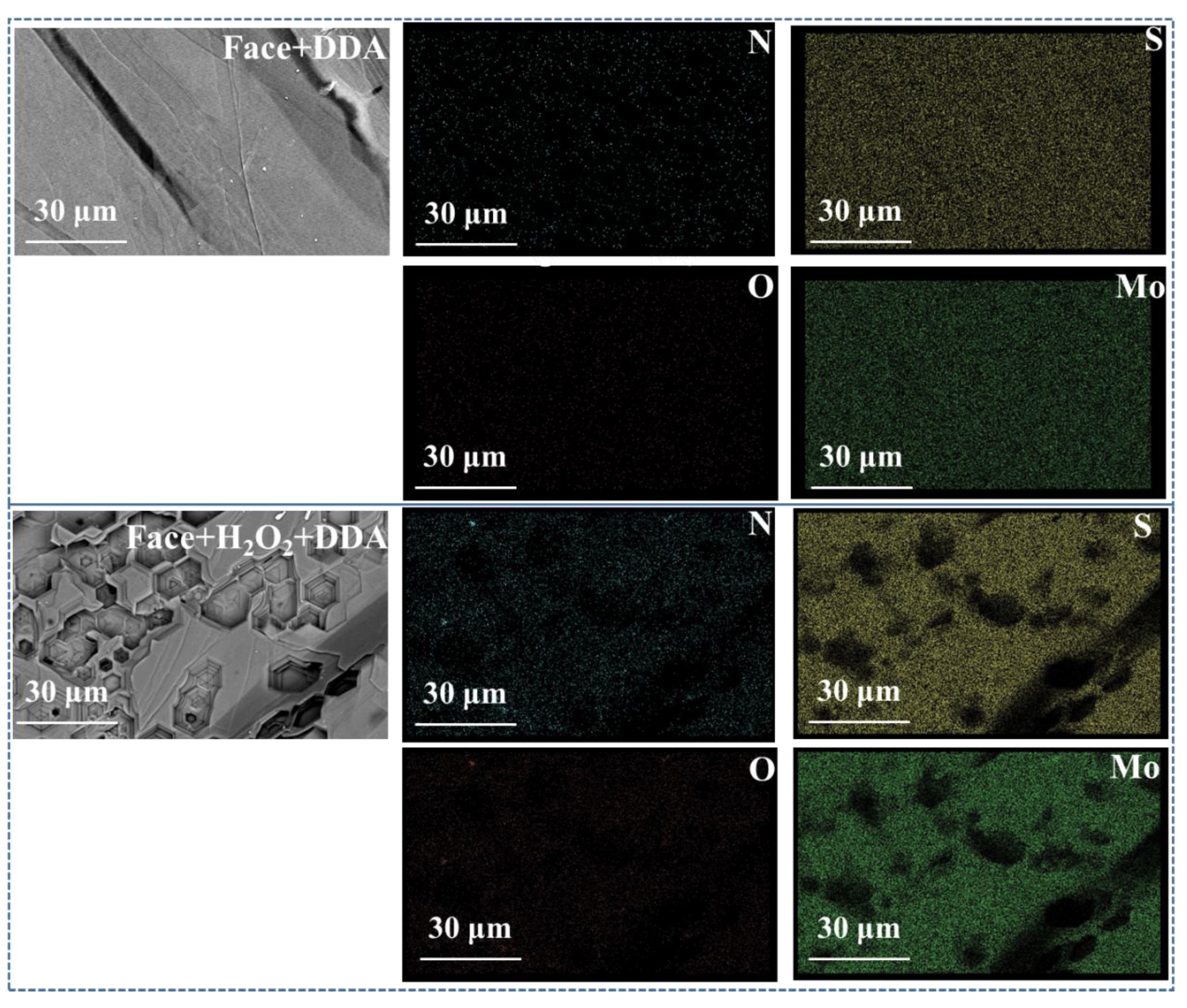

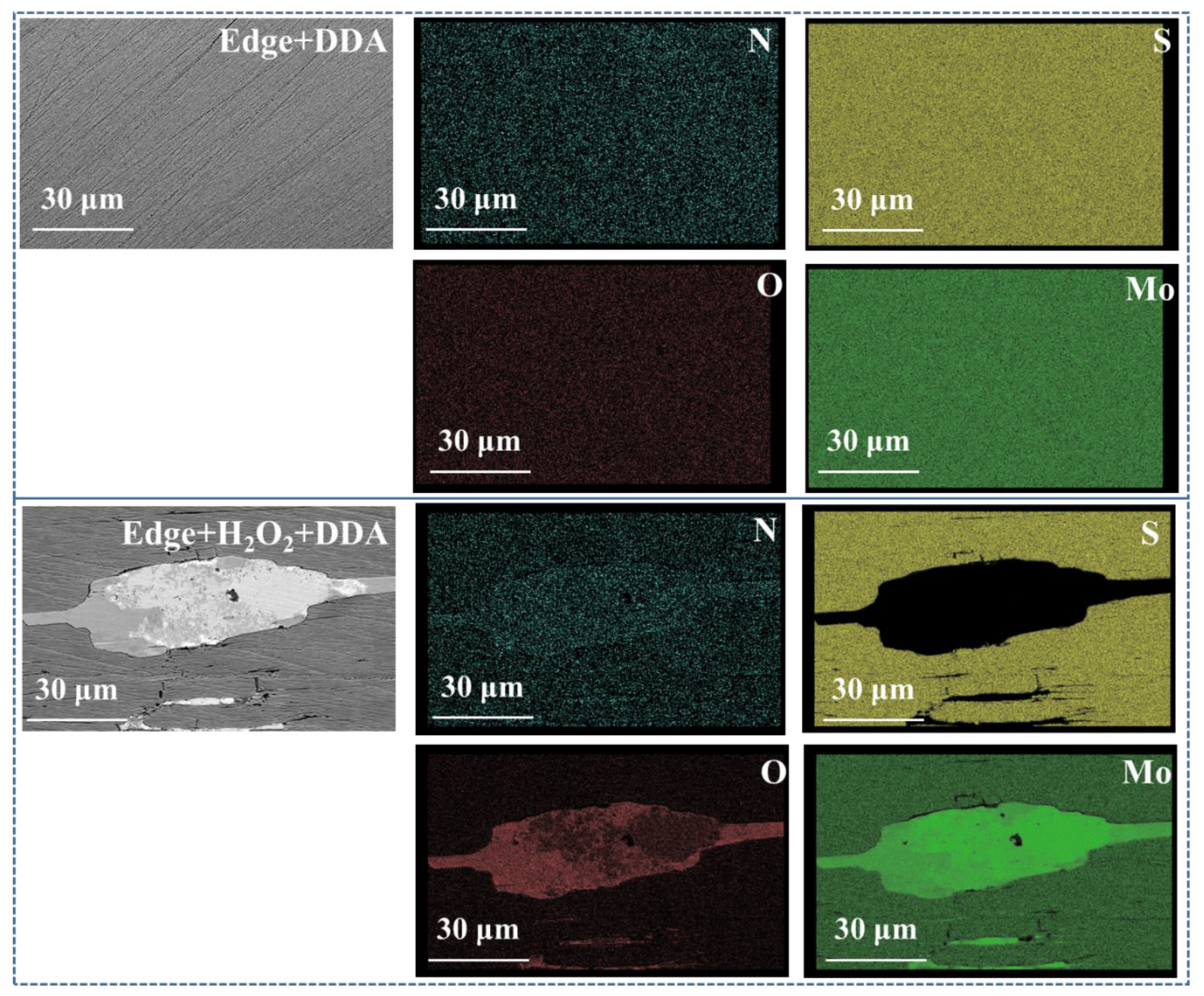

The effect of DDA on oxidized and unoxidized faces and edges was also investigated by SEM-EDS. The photographs and element atomic concentration are displayed in Figure 7 and

Table 2. Elemental atomic concentration of oxidized and unoxidized molybdenite faces and edges with and without DDA treatment.

Surface	Oxidation State	Element Atomic Conc.
		S	Mo	O	N
Face	Before	59.417	37.121	2.462	0.798
	After	57.568	36.937	5.495	1.173
Edge	Before	61.212	37.895	0.344	0.549
	After	26.880	61.514	9.125	2.481

. Notably, a lot of the N element was detected on both fresh and oxidized faces and edges, suggesting DDA species adsorbed onto fresh and oxidized faces and edges, which was consistent with the contact angle results. Furthermore, the N atom concentration on oxidized faces and edges was higher than fresh faces and edges, which implied that DDA species were more readily adsorbed on the oxidized face and edge. Therefore, DDA species enhanced the hydrophobicity of the fresh and oxidized faces and edges, thus improving the floatability of unoxidized and oxidized molybdenite fines, which was in line with the contact angle result.

3.5. XPS Analysis

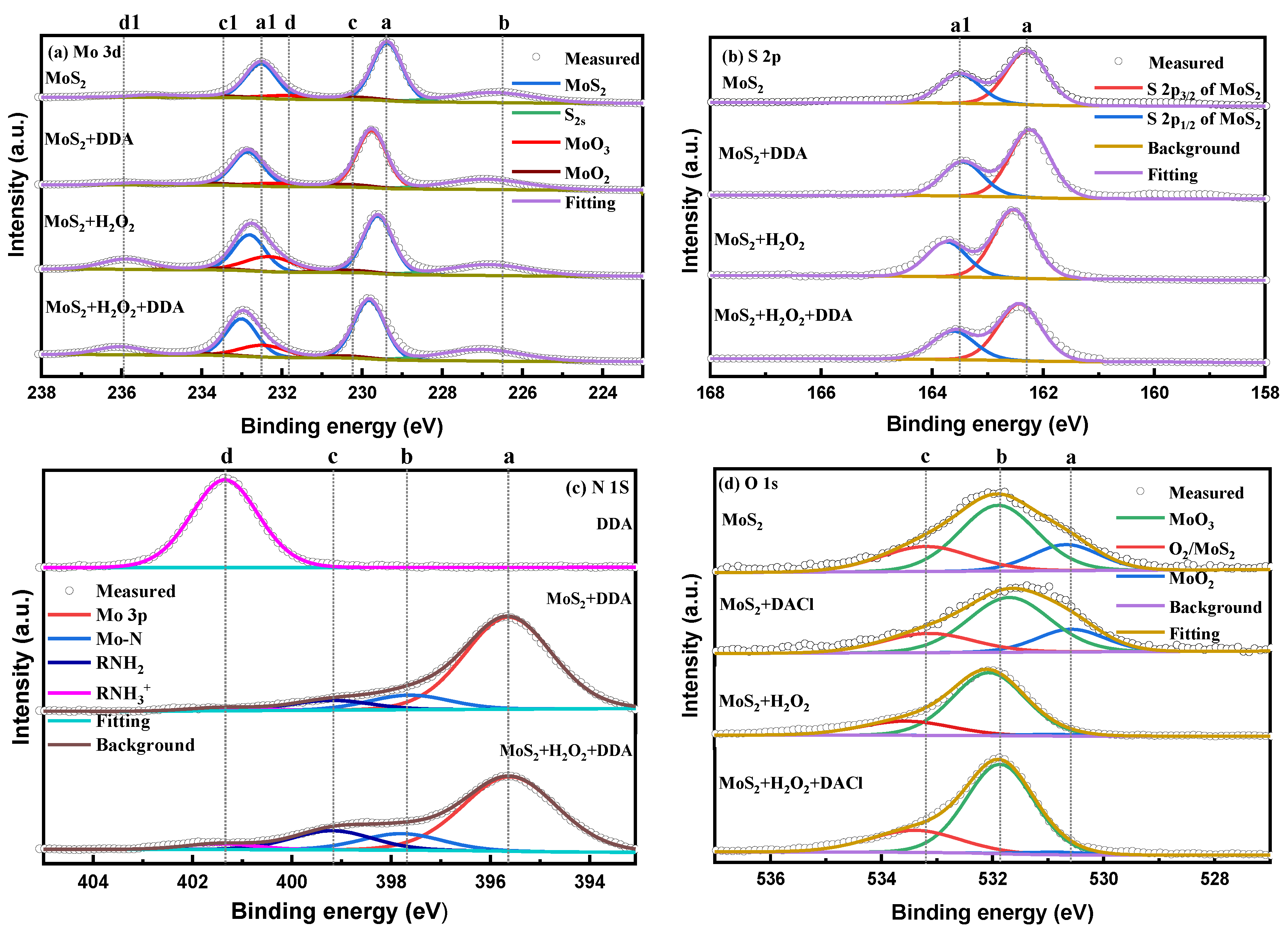

The XPS spectra of Mo 3d, S 2p, N 1s, and O 1s are shown in Figure 8. The peak binding energy and atomic concentration are listed in

Table 3. Fitting parameters of XPS spectra.

Orbital	Species	Untreated		+DDA		+H2O2		+H2O2+DDA
		BE	AC	BE	AC	BE	AC	BE	AC
Mo 3d	a(MoS2)	229.37	40.58	229.70	41.64	229.61	32.71	229.85	33.89
	a1(MoS2)	232.52	28.07	232.85	26.13	232.81	21.81	233.05	23.4
	b(S2s)	226.72	19.31	226.90	20.33	226.83	15.75	277.01	18.39
	c(MoO2)	230.22	2.83	230.43	2.97	230.40	4.82	230.49	4.69
	c1(MoO2)	233.57	1.96	233.74	2.05	233.75	3.22	233.86	3.24
	d(MoO3)	231.88	4.29	232.19	4.06	232.32	13.02	232.47	9.68
	d1(MoO3)	235.17	2.97	233.54	2.81	235.88	8.68	236.03	6.7
S 2p	a(S 2p3/2)	162.30	64.53	162.24	66.19	162.53	66.19	162.42	66.61
	a1(S 2p1/2)	163.50	35.37	163.45	33.81	163.74	33.81	163.63	33.39
N 1s	a(Mo3p)	-	-	395.64	75.98	-	-	395.60	68.05
	b(Mo-N)	-	-	397.63	13.74	-	-	397.79	14.62
	c(RNH2)	-	-	399.22	8.25	-	-	399.19	12.71
	d(RNH3+)	401.35	100	401.42	2.02	-	-	401.45	4.63
O 1s	a(MoO2)	530.68	19.47	530.59	19.94	530.94	1.88	530.87	2.18
	b(MoO3)	531.85	55.69	531.70	57.65	532.06	76.61	531.86	73.63
	c(O2/MoS2)	533.20	24.84	533.15	22.41	533.55	21.51	533.40	24.18

BE—bind energy (eV), AC—atomic concentration (%), “-” denotes none.

. In Figure 8a, the peak at 226.72 eV represented S 2s. The peaks at 229.37, 230.22, and 231.88 eV were ascribed to the Mo 3d_5/2 of MoS₂, MoO₂, and MoO₃. The peaks at 232.52, 233.57, and 235.17 eV were attributed to the Mo 3d_3/2 of MoS₂, MoO₂, and MoO₃, respectively [12]. After adding DDA, the peak of MoS₂ moved by approximately 0.33 eV, elucidating that DDA species might adsorb on the Mo sites of molybdenite. After oxidation, it was clear that the MoO₃ concentration greatly increased from 7.672% to 21.7% and the MoO₂ concentration slightly increased from 4.79% to 8.04%. For oxidized molybdenite treated with DDA, the movement of MoS₂ was 0.24 eV, while the movements of MoO₂ (0.09 eV) and MoO₃ (0.05 eV) were insignificant, implying that DDA species might chemisorb on MoS₂ but physisorb on MoO₃ and MoO₂.

In S 2p spectra (Figure 8b), for untreated molybdenite, the peaks centered at 162.30 and 163.50 eV, which denoted S 2p_3/2 and S 2p_1/2 of MoS₂ [18]. For the oxidized molybdenite, the S 2p_3/2 and S 2p_1/2 of MoS₂ shifted to 162.53 and 163.74 eV. After the addition of DDA, the peaks of both unoxidized and oxidized molybdenite moved slightly to a lower binding energy. It has been reported that the sulfur atom was prone to form H bonds with RNH₂ and RNH₃⁺ species [19,20]. Thus, it was safe to say that the decrease in binding energy might be attributed to hydrogen bonding.

In Figure 8c, the peak at 401.35 eV represented RNH₃⁺ of DDA [19]. For molybdenite treated with DDA, the peaks at 395.64, 397.63, 399.22, and 401.42 eV denoted Mo 3p of MoS₂ [4], Mo-N [21], RNH₂ [22], and RNH₃⁺. The same peaks were also detected on the oxidized molybdenite treated with DDA, which centered at 395.60, 397.79, 399.19, and 401.45 eV, respectively. The appearance of RNH₂ and RNH₃⁺ demonstrated that DDA species adsorbed on both unoxidized and oxidized molybdenite surfaces [23]. Meanwhile, the appearance of the Mo–N bond might imply the formation of a molybdenum–amine complex ion, in which the RNH₂ bonded with the Mo sites [19]. In addition, the higher RNH₂ and RNH₃⁺ concentrations on oxidized molybdenite compared to unoxidized molybdenite suggested that RNH₂ and RNH₃⁺ were more readily adsorbed on oxidized molybdenite surfaces, which was in accordance with SEM-EDS results.

In Figure 8d, for pure molybdenite, the peaks at 530.68, 531.85, and 533.20 eV correspond to MoO₂, MoO₃, and O₂/MoS₂ [24]. After oxidation, the three peaks moved to 530.94, 532.06, and 533.55 eV. Meanwhile, the atomic concentration of MoO₃ increased greatly, confirming that the surface oxidation degree increased. After the treatment of DDA, three peaks of unoxidized and oxidized molybdenite also shifted to lower binding energies, which was similar to the S 2p. Since the electronegativity of the O atoms was higher than the S atoms, RNH₂ and RNH₃⁺ might adsorb on the O atoms of unoxidized and oxidized molybdenite surface via hydrogen bonding.

3.6. Interaction Mechanism

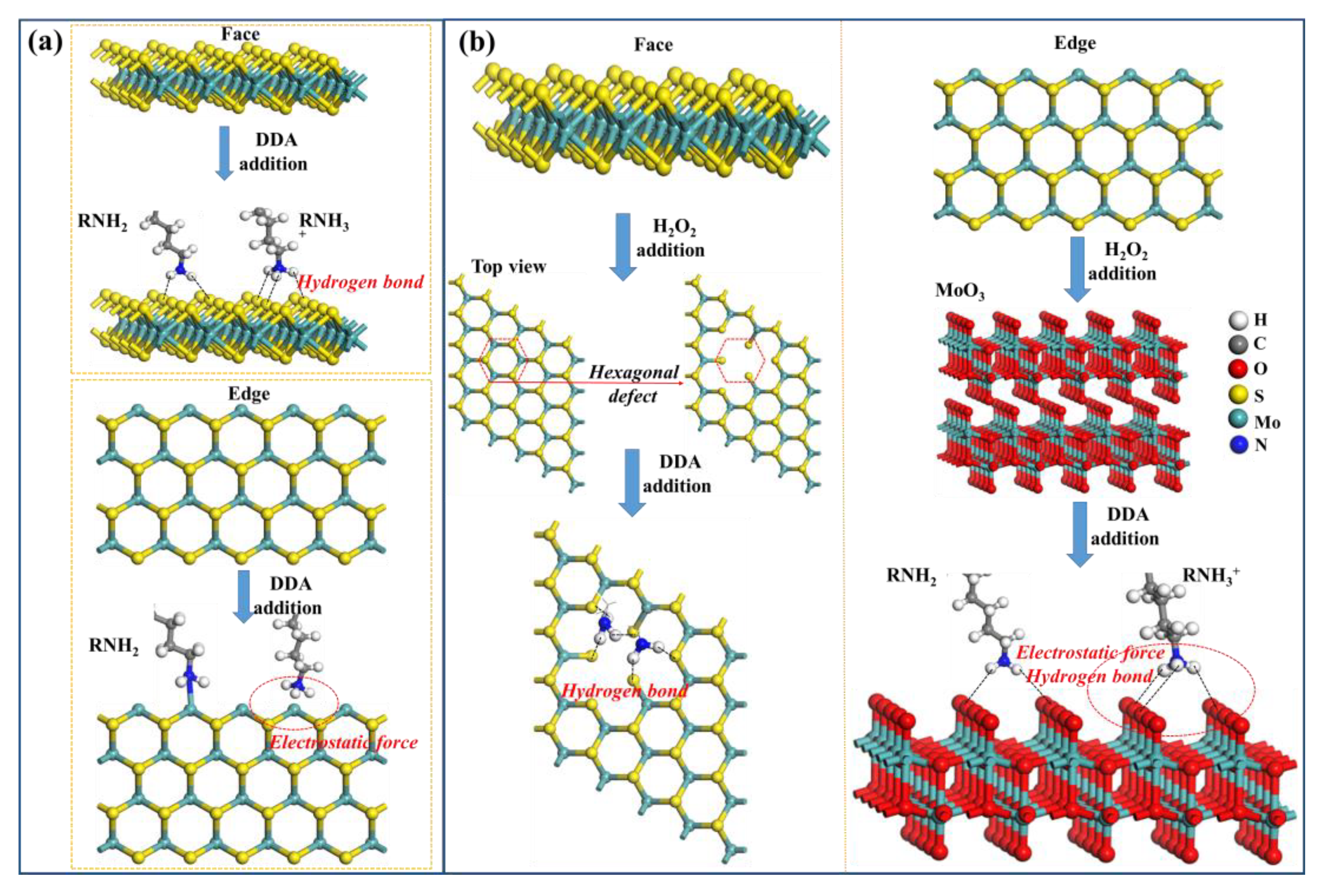

Based on the analysis of Zeta potential, contact angle, SEM-EDS, and XPS, the adsorption mechanism of DDA species on fresh and oxidized faces and edges could be proposed. As illustrated in Figure 9, for fresh faces, RNH₃⁺ and RNH₂ interacted with S atoms by hydrogen bonding. For fresh edges, RNH₂ and RNH₃⁺ adsorbed on the negatively charged edges via chemical bonding and electrostatic force. On the other hand, for oxidized faces, RNH₂ and RNH₃⁺ adsorbed on newly exposed S atoms by hydrogen bonding and interacted with oxidized micro-edges through hydrogen bonding and electrostatic forces. For oxidized edges, RNH₂ and RNH₃⁺ adsorbed on deposited MoO₃ by hydrogen bonding and electrostatic force.

4. Conclusions

(1)

DDA was more efficient than kerosene in the flotation of unoxidized and oxidized molybdenite fines. For unoxidized molybdenite fines, a low dosage of DDA (50 mg/L) achieved a much higher floatability (94.96%) than that (88.56%) obtained at kerosene dosage of 400 mg/L. For oxidized molybdenite fines, the floatability was only 33.62% using 400 mg/L kerosene, while the floatability sharply surged to about 90% at DDA dosage of 100 mg/L. DDA could effectively improve the flotation of unoxidized or oxidized molybdenite fines because of the adsorption of DDA species on both faces and edges.

(2)

RNH₂ and RNH₃⁺ interacted with S atoms on fresh faces through hydrogen bonding while adsorbed on fresh edges by chemical bonding and electrostatic interaction.

(3)

After oxidation, RNH₂ and RNH₃⁺ adsorbed on newly exposed S atoms by hydrogen bonding or interacted with MoO₃ on oxidized micro-edges by hydrogen bonding and electrostatic forces. RNH₂ and RNH₃⁺ interacted with deposited MoO₃ on oxidized edges via hydrogen bonding and electrostatic force interaction.
